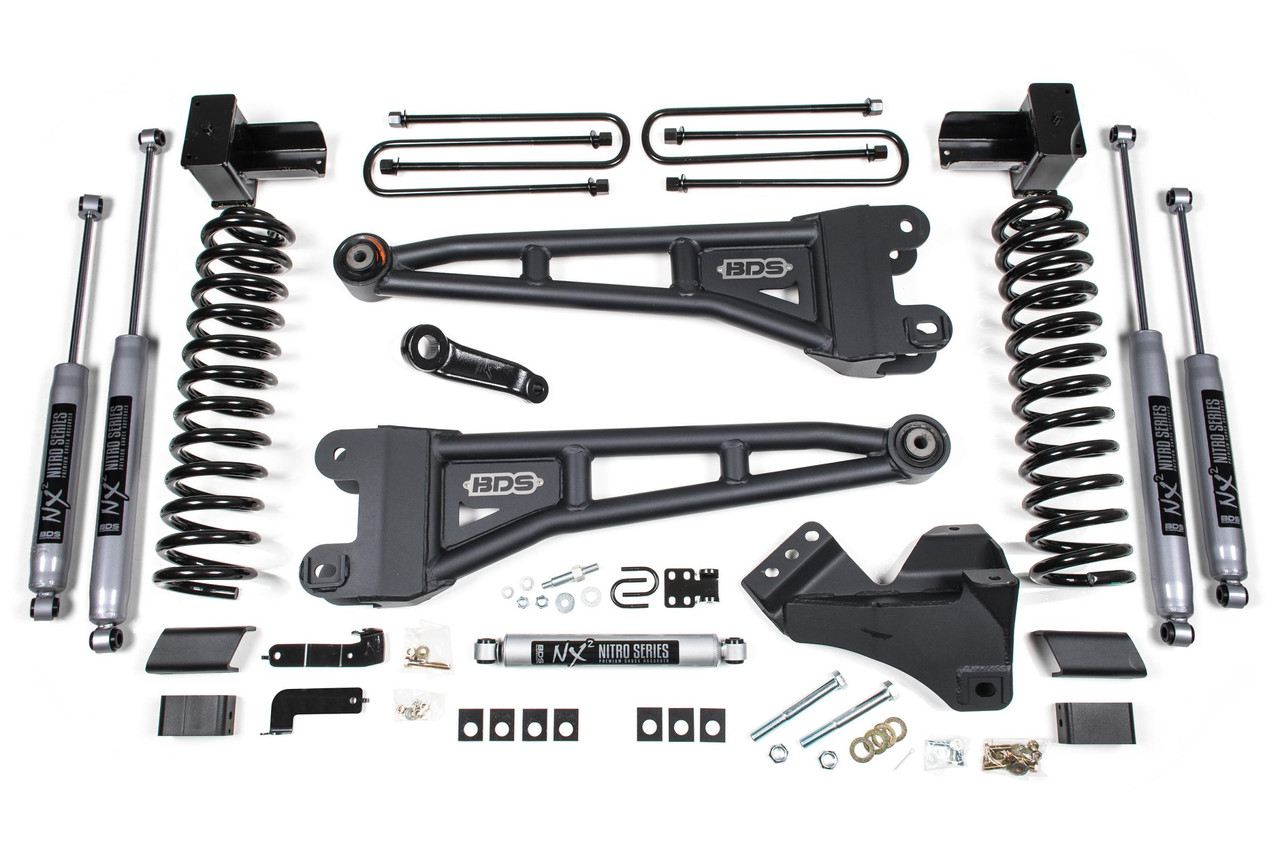

BDS SUSPENSION BDS1550H 5 INCH LIFT KIT W/ RADIUS ARM FORD F250/F350 SUPER DUTY 20-22 4WD GAS NX2 NITRO SHOCKS

Improve the ride on your Ford Super Duty gas powered truck with this 5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gasoline-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gasoline-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 4 inch

1. Ford recommends the replacement of the pitman arm nut after each time it has been removed.
2. If installed on a truck with a top-mounted overload spring, an overload spacer block taller than 1-1/8 inch UBT4027 (Qty: 4) is required.
3. Front exhaust modification may be required to clear the front drive shaft (Gas Only).
4. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
5. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
6. Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
7. Larger Tires on the stock wheels are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and Tire fitment section.
8. Minor trimming may be necessary for clearance of 37x12.50 Tires on certain wheel setups.
9. Installation requires a torque wrench capable of 405 ft-lbs.
10. Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

Kit Components:

• Includes one BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit, UPC Code 658848613458
• Includes one BDS013459, 2020-2022 F250/F350 4.5 inch Rear Block Kit, UPC Code 658848613564
• Includes one BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil Spring Kit, UPC Code 658848616534
• Includes one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, UPC Code 711745604087
• Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
• Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
• Includes two BDS85718, Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609563

Transform your Ford F250/F350 Super Duty truck with the BDS SUSPENSION BDS1550H 5-Inch Lift Kit featuring Radius Arms. Engineered for gas-powered models from 2020 to 2022, this comprehensive lift kit enhances your vehicle's stance, performance, and off-road capabilities, providing the clearance necessary for up to 37-inch tires.

The BDS1550H kit includes robust gasoline-specific Pro-Ride coil springs, offering a smooth and consistent ride over diverse terrains. Heavy-duty replacement radius arms ensure optimal caster adjustment for improved handling and stability, while a forged drop pitman arm and track bar bracket fine-tune your steering geometry for superior control. Added sway bar relocation and brake line brackets enhance safety and functionality, making this installation a well-rounded upgrade.

The rear setup features high-strength fabricated lift blocks accompanied by extended u-bolts and matching NX2 Nitro or FOX Performance shocks. These components work together to provide a balanced lift and maintain a level stance, ensuring your truck not only looks commanding but performs exceptionally both on-road and off-road.

Installation of the BDS1550H lift kit is entirely bolt-on, making it user-friendly for any truck enthusiast. The kit is designed not only for strength and durability but also for a remarkable driving experience, regardless of environment.

Custom features include a dual-rate coil spring design that absorbs shocks and provides a seamless transition across rough surfaces. Optional FOX 2.0 Performance Series shocks are available for those seeking maximum performance enhancements.

With its thoughtful design headlined by quality components, the BDS1550H lift kit is the perfect enhancement for those wanting to take their Ford Super Duty to new heights in both style and capability.
