BDS SUSPENSION

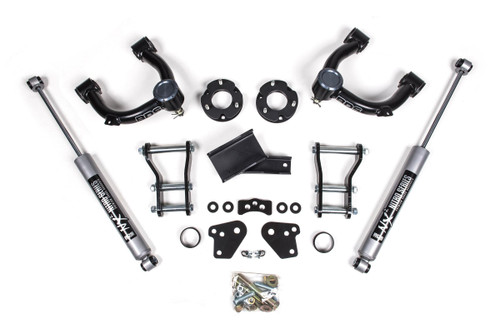

BDS SUSPENSION BDS1545H 3.5 INCH LIFT KIT FORD RANGER 19-23 4WD CAST ALUMINUM KNUCKLE NX2 NITRO SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1545H
MPN:
BDS1545H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1545H 3.5 INCH LIFT KIT FORD RANGER 19-23 4WD CAST ALUMINUM KNUCKLE NX2 NITRO SHOCKS
  • BDS SUSPENSION BDS1545H 3.5 INCH LIFT KIT FORD RANGER 19-23 4WD CAST ALUMINUM KNUCKLE NX2 NITRO SHOCKS
$1,239.85

Description

Improve the performance and style of your 2019-2023 Ford Ranger truck by installing this 3.5-inch lift kit from BDS. Specially designed for the new Ranger, this 3.5 inch leveling kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

To prevent maxing out ball joints or CV damage, BDS gets around this issue by using a 2-piece design with a smaller top mounted steel strut spacer in combination with a preload spacer.

To further ensure proper drivetrain geometry the front differential is repositioned using relocation brackets. These brackets correct CV axle angle while allowing the use of the factory front skid plates. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel.

Up front, the lift kit includes steel top mount strut spacers, pre-load spacers, differential relocation brackets and tubular upper control arms. In the rear, this kit includes heavy duty lift shackles and custom-tuned NX2 Nitro or FOX Performance series shocks.

HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features & Benefits

Easy, 100 percent Bolt-on installation
Maintains factory like ride quality
Standard NX2 Nitro shocks with vehicle-specific valving for better control
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels

  • (Trimming may be required)
  • 285 / 65 with 18 x 9 and 5.75 in. Backspace
  • 305 / 55 with 20 x 9 and 5 in. Backspace

OE Knuckle Type - Cast Aluminum
Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering by referencing our help images when customizing your kit.

Rear Shock Option
NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Kit Components:

  • Includes one BDS013351, 2019-2023 Ford Ranger 3.5 inch Box Kit, UPC Code 658848613328
  • Includes two BDS85880, Shock- 25.95 x 15.40 x 2 - EB1/EB1, UPC Code 711745609952

Elevate your 2019-2023 Ford Ranger with the BDS Suspension BDS1545H 3.5 Inch Lift Kit, engineered to enhance both performance and aesthetics. This high-quality kit is tailored specifically for the new Ranger, providing an impressive 3.5 inches of lift while ensuring your suspension and driveline angles remain optimal during full droop.

The innovative 2-piece design features a top-mounted steel strut spacer combined with a preload spacer, effectively preventing ball joint maxing or CV damage. To maintain proper drivetrain geometry, the kit includes relocation brackets for the front differential, allowing for corrected CV axle angles and compatibility with factory skid plates. Additionally, the kit comes complete with robust upper control arms (UCAs) designed for improved strength and increased suspension travel, ensuring that your lift not only looks great but performs exceptionally.

Front components include heavy-duty steel top mount strut spacers, preload spacers, and tubular upper control arms, while the rear section features heavy-duty lift shackles along with custom-tuned NX2 Nitro or FOX Performance series shocks. The high-strength UCAs boast premium construction, offering indexed ball joint cups for enhanced down travel and camber adjustment. With maintenance-free rubber bushings and greaseable ball joints, these arms ensure superior durability and smooth performance, all finished in a sleek black powder coat.

The BDS1545H Lift Kit is designed for easy, 100% bolt-on installation, preserving factory ride quality while allowing for impressive tire sizes. Compatible tires range from 285/65 with 18x9 wheels to 305/55 with 20x9 wheels, with trimming possibly required. Upgrade your Ford Ranger's capabilities and appearance with this premium lift kit designed for both on and off-road adventures.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
