BDS SUSPENSION BDS1544H 2 INCH LEVELING KIT FORD RANGER 19-23 4WD W/NX2 SHOCKS

Level the front of your 2019-2023 Ford Ranger truck by installing this 2-inch leveling kit from BDS. Specially designed for the new Ranger, this 2 Inch leveling kit is engineered for additional Tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

To prevent maxing out ball joints or CV damage, BDS gets around this issue by using a 2-piece design with a smaller top mounted steel strut spacer in combination with a preload spacer.

The lift kit includes steel top mount strut spacers, pre-load spacer and custom-tuned NX2 Nitro or FOX Performance series shocks. Give your new Ranger the extra boost with this 2 Inch leveling kit from BDS Suspension.

• Front Lift Method: Strut Spacer
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 Inch
• Rear Lift Height: 0 Inch

1. Aftermarket wheels must have a minimum of 93.1mm center hub bore.

• Easy, 100 percent Bolt-on installation
• Maintains factory like ride quality
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 285 / 65 Wheel Diameter: 18 x 9

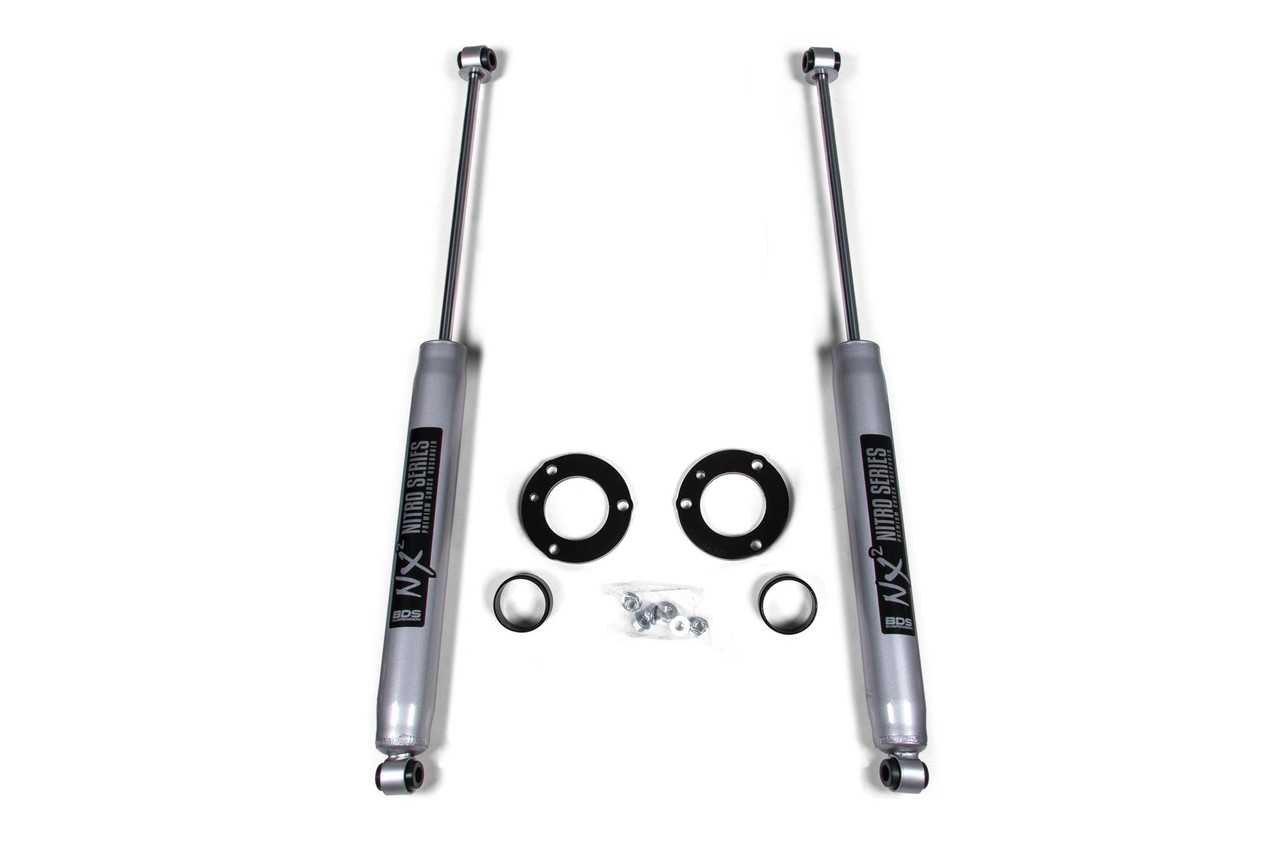

Kit Components:

• Includes one BDS013203, 2019-2023 Ford Ranger 2 Inch Leveling Kit, UPC Code 658848613106
• Includes two BDS85880, Shock- 25.95 x 15.40 x 2 - EB1/EB1, UPC Code 711745609952

Elevate your driving experience with the BDS SUSPENSION BDS1544H 2 Inch Leveling Kit, specifically designed for 2019-2023 Ford Ranger 4WD models. This expertly engineered kit not only levels the front of your truck by two inches but also enhances tire clearance and optimizes performance without compromising the integrity of your suspension or driveline angles during full suspension droop.

The innovative two-piece design utilizes a smaller top-mounted steel strut spacer paired with a preload spacer, effectively mitigating the risk of ball joint maxing or CV damage. This well-thought-out engineering makes installation straightforward, allowing for a 100 percent bolt-on process that retains the factory-like ride quality.

Included in the kit are high-quality steel top mount strut spacers, a preload spacer, and custom-tuned NX2 Nitro or FOX Performance series shocks. The NX2 shocks feature nitrogen charging, a twin-tube design, and 10-stage velocity-sensitive valving, ensuring superior handling and control. The option to upgrade to FOX 2.0 Performance Series shocks provides an opportunity for unmatched performance both on and off the road.

With a front lift height of 2 inches and no additional rear lift, this leveling kit is designed to pair perfectly with aftermarket wheels featuring a minimum 93.1mm center hub bore. The accompanying tire size of 285/65 on an 18 x 9 wheel diameter is optimized for a bold yet functional look.

Transform your Ford Ranger into an off-road powerhouse with the BDS SUSPENSION BDS1544H Leveling Kit, where quality meets performance for an unbeatable driving experience.
