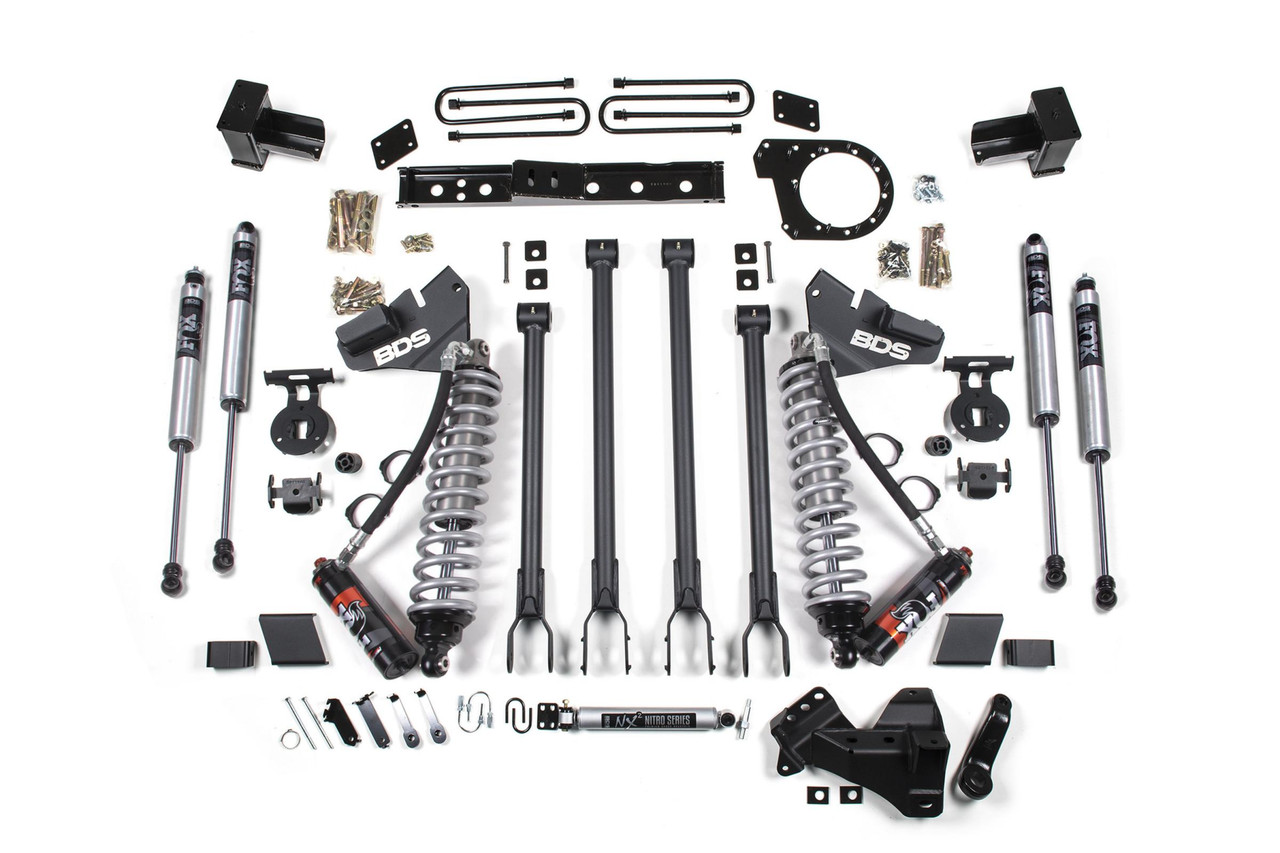

BDS SUSPENSION BDS1529FPE 2017-2019 FORD F250/F350 4WD 6 INCH 4-LINK SUSPENSION LIFT KIT, 6 INCH REAR, SPRING, DIESEL - FOX 2.5 FOX PERFORMANCE ELITE SERIES COIL OVER FRONT FOX 2.0 INTERNAL FLOATING PISTON REAR LEAF SPRINGS FOX 2.0 PERFORMANCE SHOCKS

Raise the bar on your 2017-2019 Ford F250 and F350 Ford Super Duty diesel truck with this 6-inch 4-Link lift kit and FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38 inch tires.

Up front the lift kit includes FOX 2.5 coil-over shocks and mounting brackets, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear the base kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.

They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

T-Case Indexing
At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Features & Benefits

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Recommended Tires & Wheels

• (Trimming may be required)
• 38 x 13.5 with 17 x 9 and 5 in. Backspace
• 38 x 13.5 with 17 x 10 and 5 in. Backspace
• 38 x 13.5 with 20 x 10 and 5 in. Backspace

Rear Lift Option

Leaf Springs

• Reduces axle wrap and creates a more controlled and stable feel
• Multi-leaf progressive design for smooth ride
• Maintains factory payload weight ratings
• Anti-friction pads provide a smooth and quiet ride
• Auxiliary Front and Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Kit Components

Includes two BDS003639, 2017-2024 Super Duty 6 inch Rear Leaf Spring, UPC Code 658848611409
Includes one BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2, UPC Code 658848613700
Includes one BDS013604, 2017-2022 Ford F-250 / F-350 6 inch 4-Link Box Kit 2of2, UPC Code 658848613731
Includes one BDS013617, 2017-2022 Super Duty Rear Leaf Spring Box Kit, UPC Code 658848613823
Includes one BDS123605, 2017-2022 SD T-Case Indexing Kit- Diesel, UPC Code 711745604377
Includes one BDS123613, 2017-2024 Super Duty Coil-over Mount Kit, UPC Code 711745604407
Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
Includes one FOX88406428, Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 6 inch Lift, Dual Speed Compression Adjust
Includes two FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
Includes two FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1

Transform your 2017-2019 Ford F250 or F350 diesel truck into an off-road powerhouse with the BDS SUSPENSION BDS1529FPE 6-INCH 4-LINK SUSPENSION LIFT KIT. Designed to elevate both stance and capability, this comprehensive lifting system enables you to fit up to 38-inch tires while enhancing handling and performance.

Front suspension components feature FOX 2.5 Performance Elite coil-over shocks, meticulously engineered for exceptional on-road comfort and off-road endurance. The innovative 4-Link control arm conversion utilizes robust 1/4-inch steel brackets, ensuring improved suspension geometry and enhanced driving stability. Additional components, such as a forged drop pitman arm and track bar bracket, maintain precise steering angles for a confident drive on any terrain.

Driveline adjustments are crucial for optimal vehicle function, which is why the kit includes a precision-built transfer case indexing ring and a high-clearance transmission crossmember to ensure proper alignment and performance.

In the rear, the kit incorporates high-strength fabricated lift blocks and extended u-bolts, complemented by FOX 2.0 Performance shocks. This setup not only stabilizes but significantly reduces axle wrap, providing a controlled drive experience regardless of the surface.

The BDS lift kit showcases features such as Eibach coil springs for a smooth ride over rugged landscapes and adjustable performance by leveraging the DSC adjuster on the FOX shocks. With easy installation and a complete range of components, the BDS1529FPE is the definitive upgrade for dedicated truck enthusiasts looking to maximize their Ford's potential.

When paired with the recommended tire and wheel sizes, including 38 x 13.5 tires on 17 or 20-inch rims, this lift kit delivers not just an aesthetically pleasing upgrade but unparalleled performance on and off the road. Elevate your driving experience with BDS Suspension.
