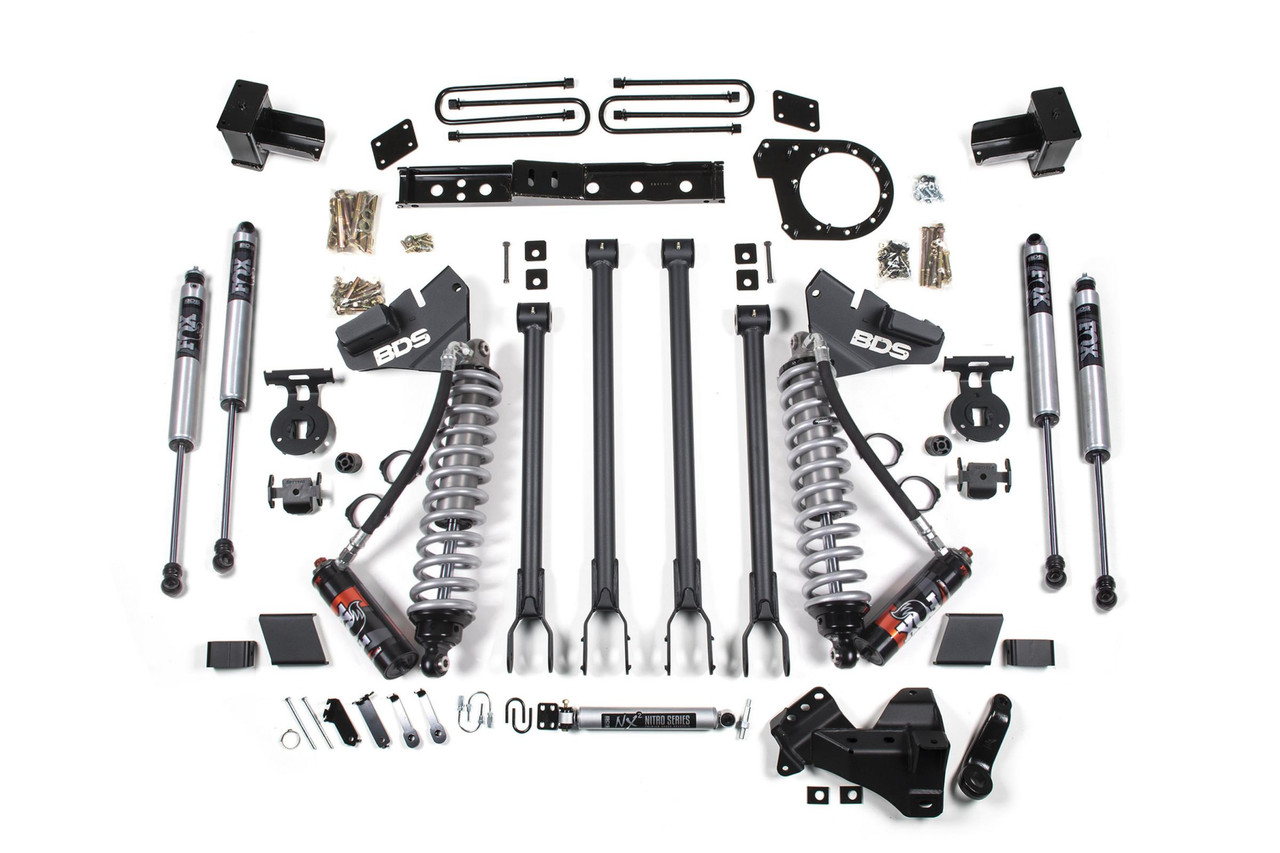

BDS SUSPENSION BDS1527FPE 2017-2019 FORD F250/F350 4WD 6 INCH 4-LINK SUSPENSION LIFT KIT 4 INCH REAR BLOCK DIESEL 2 LEAF MAIN FOX 2.5 PES C/O FRONT FOX 2.0 PERFORMANCE SHOCKS AUX FRONT FOX 2.0 IFP PS REAR BLOCK KIT AND ADD A LEAF

Raise the bar on your 2017-2019 Ford F250 and F350 Ford Super Duty diesel truck with this 6-inch 4-Link lift kit and FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38 inch tires.

Up front the lift kit includes FOX 2.5 coil-over shocks and mounting brackets, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear the base kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.

They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

T-Case Indexing
At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Features & Benefits

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Recommended Tires & Wheels

• (Trimming may be required)
• 38 x 13.5 with 17 x 9 and 5 in. Backspace
• 38 x 13.5 with 17 x 10 and 5 in. Backspace
• 38 x 13.5 with 20 x 10 and 5 in. Backspace

Rear Lift Option
5 Inch Block
Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Kit Components

Includes one BDS013219, 2017-2019 Ford Super Duty - Add-A-Leaf Kit, UPC Code 658848613168
Includes one BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2, UPC Code 658848613700
Includes one BDS013604, 2017-2022 Ford F-250 / F-350 6 inch 4-Link Box Kit 2of2, UPC Code 658848613731
Includes one BDS013607, 2017-2019 Super Duty Rear 6 inch Block Kit, UPC Code 658848613755
Includes one BDS123605, 2017-2022 SD T-Case Indexing Kit- DSL, UPC Code 711745604377
Includes one BDS123613, 2017-2024 Super Duty Coil-over Mount Kit, UPC Code 711745604407
Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
Includes one FOX88406428, Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck PES, R/R 6 inch Lift, DSC
Includes two FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
Includes two FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1

Elevate your driving experience with the BDS Suspension BDS1527FPE 6-inch 4-Link Lift Kit, expertly crafted for the 2017-2019 Ford F250 and F350 4WD diesel trucks. This comprehensive lift kit is designed to enhance your truck's stance, performance, and off-road capability, allowing for clearance of tires up to 38 inches, turning your vehicle into an unstoppable force on and off the road.

The kit features premium FOX 2.5 Performance Elite coil-over shocks, which offer unparalleled comfort and handling. These shocks come pre-tuned for immediate installation and boast a remote reservoir for optimal fluid capacity, ensuring they run cool during intense off-road adventures. The versatile DSC adjuster allows for customized low-speed and high-speed compression settings, providing precise tuning to match your driving style.

Transforming the factory setup, the BDS 4-link conversion replaces the stamped steel radius arms with robust 1/4-inch steel brackets that enhance suspension geometry for improved handling and axle positioning. This upgrade also includes a forged drop pitman arm and track bar bracket for precise steering correction, ensuring your ride remains smooth and stable on rough terrain.

For the rear, the kit incorporates high-strength fabricated lift blocks paired with longer u-bolts and matching FOX performance shocks, allowing for a perfectly balanced ride height from front to rear. The T-case indexing and high-clearance transmission crossmember guarantee optimal driveline angles for reliable use of your factory driveshafts.

Additional features like sway bar relocation, brake line brackets, and optional add-a-leaf kits further refine the kit's robustness. Built to withstand the harshest environments, the BDS1527FPE lift kit will significantly enhance your Super Duty truck's capability and style, giving you the ultimate driving experience.
