BDS SUSPENSION BDS1521H 4 INCH LIFT KIT W/ RADIUS ARM FORD F250/F350 SUPER DUTY 17-19 4WD GAS 5 INCH BLOCK 2 LEAF MAIN NX2 NITRO SHOCKS

Improve the ride on your 2017-2019 Ford F250 and F350 Super Duty gas powered truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gasoline-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gasoline-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 5 inch

1. Front exhaust modification may be required to clear front drive shaft
2. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
3. 37 x 12.50 Tires may require minor trimming.
4. Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option 5 Inch Block 2 Leaf Main

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

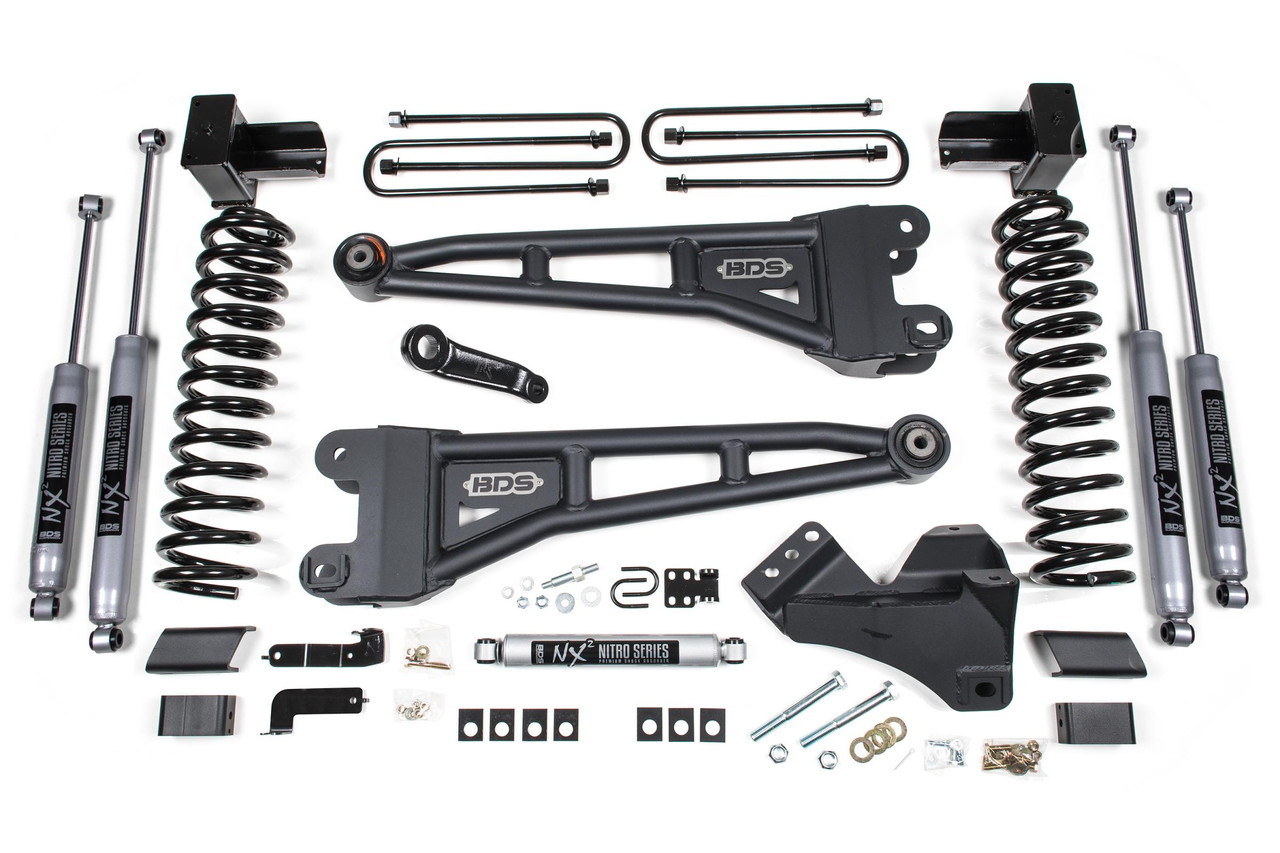

Kit Components:

• Includes one BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit, UPC Code 658848613458
• Includes one BDS013517, 2017-2024 F250 5 inch Rear Block Kit - 2 Leaf Main (W/O Overload Springs), UPC Code 658848613601
• Includes one BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil Spring Kit, UPC Code 658848616534
• Includes one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, UPC Code 711745604087
• Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
• Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
• Includes two BDS85718, Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609563

Enhance your 2017-2019 Ford F250/F350 Super Duty with the BDS SUSPENSION BDS1521H 4 Inch Lift Kit w/ Radius Arm, designed for serious off-road enthusiasts. This comprehensive lift kit improves your truck’s stance, performance, and overall capability, allowing for clearance of up to 37-inch tires.

Engineered with precision, the kit features gasoline-specific Pro-Ride coil springs, offering exceptional ride quality across diverse terrains. The heavy-duty replacement radius arms ensure optimal caster adjustment, enhancing ground clearance and stability. Installation is straightforward with a fully bolt-on design, minimizing downtime in your garage.

For steering correction, the kit includes a forged drop pitman arm paired with a heavy-duty track bar relocation bracket, helping maintain proper steering geometry and axle alignment throughout suspension travel. With this upgrade, your handling and control improve, providing confidence on and off the road.

The rear section of the kit utilizes a high-strength fabricated lift block combined with longer u-bolts and specifically tuned NX2 Nitro shocks that feature a twin-tube design. These shocks are nitrogen-charged and equipped with 10-stage velocity-sensitive valving for superior control and performance, ensuring a smooth and responsive ride under all conditions.

This kit is not just about aesthetics; it's thoughtfully engineered for both form and function. Each component, from the sway bar relocation brackets to the brake line brackets, is meticulously designed to enhance ride quality. With attention to detail in materials and construction, you can trust this lift kit to stand up to the demands of rugged use while providing a level stance from front to rear.

The BDS1521H Lift Kit is the ultimate solution for those looking to elevate their driving experience in a Ford Super Duty truck, striking a perfect balance between off-road capability and on-road comfort.
