BDS SUSPENSION

BDS SUSPENSION BDS1508H 4 INCH LIFT KIT FORD F150 RAPTOR 2014 4WD NO SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1508H
MPN:
BDS1508H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1508H 4 INCH LIFT KIT FORD F150 RAPTOR 2014 4WD NO SHOCKS
  • BDS SUSPENSION BDS1508H 4 INCH LIFT KIT FORD F150 RAPTOR 2014 4WD NO SHOCKS
$1,911.75

Description

Raise the heights and maintain the performance of your 2014 Ford F150 Raptor 4WD truck with a 4-inch suspension lift kit by BDS Suspension. After months of engineering, BDS determined that the 4 inch lift height allows for the best use of the factory equipped FOX Shocks and maintain full range of suspension travel allotted by the factory suspension components.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength lift blocks and longer u-bolts to lift and level the stance along with rear shock relocation brackets to maintain the FOX internal bypass rear shocks.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

  • Front Lift Method: Cross-Member
  • Rear Lift Method: Block
  • Shocks Included: No
  • Front Lift Height: 4 inch
  • Rear Lift Height: 4 inch
  1. Required frame bracket modification and welding
  2. Stock wheels cannot be installed
  3. 37x12.50 on 18x9 w/5 inch BS - check for proper tie rod end clearance
  4. FMVSS No.126 Compliant
  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Shock relocation brackets to maintain factory FOX Shocks

Tire Size: 37 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 58-10 hrs

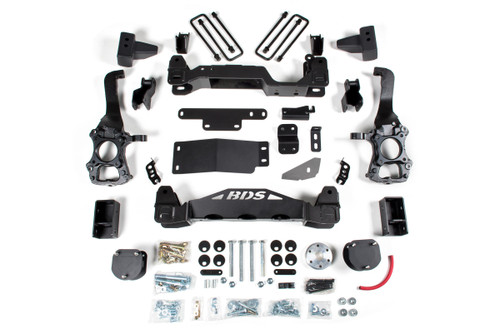

Kit Components:

  • Includes one BDS023406, 2014 Ford F150 Raptor 4in, UPC Code 658848615650
  • Includes one BDS023622, 2009-2014 Ford F150 Box Kit (3of4), UPC Code 658848615827
  • Includes one BDS023623, 2009-2014 Ford F150 Box Kit (4of4), UPC Code 658848615834
  • Includes one BDS023625, 2009-2014 Ford F150 4-6 Inch Box Kit (1of4), UPC Code 658848615858
  • Includes one BDS023626, 2009-2014 Ford F150 4-6 Inch Box Kit (2of4), UPC Code 658848615865

Elevate your rugged adventures with the BDS Suspension BDS1508H 4 Inch Lift Kit designed specifically for the 2014 Ford F150 Raptor 4WD. This meticulously engineered kit offers a transformative 4-inch lift that enhances your truck's off-road prowess while making the most of the factory-equipped FOX Shocks, ensuring optimal suspension travel and performance.

BDS has adopted a superior high-clearance design, enabling improved ground clearance and increased strength while preserving the suspension and steering geometry for exceptional on-road handling. The innovative kit includes high-arched 1/4-inch thick steel crossmembers, top-mounted strut spacers, and multipiece differential relocation brackets for durable off-road protection. Paired with a robust skid plate, this design not only enhances your vehicle’s rugged aesthetics but also fortifies its undercarriage against the harshest terrains.

Efficient steering geometry correction at the new elevated height is achieved with heavy-duty, CNC-machined ductile iron steering knuckles, ensuring compatibility with the Electronic Stability Control (ESC) system. The complete suspension assembly is rounded off with sway bar relocation brackets, brake line brackets, alignment cam bolts, and all necessary hardware for a straightforward installation.

In the rear, the kit features high-strength lift blocks and extended u-bolts that contribute to a balanced stance, complemented by shock relocation brackets. This ensures continued use of your factory FOX internal bypass shocks.

Designed for demanding off-road enthusiasts, the BDS1508H lift kit expands your tire options, accommodating 37x12.50 tires on 18x9 wheels, while remaining FMVSS No. 126 compliant. Elevate your Ford F150 Raptor's capabilities with a lift kit that merges performance, durability, and design—your adventure awaits!

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
