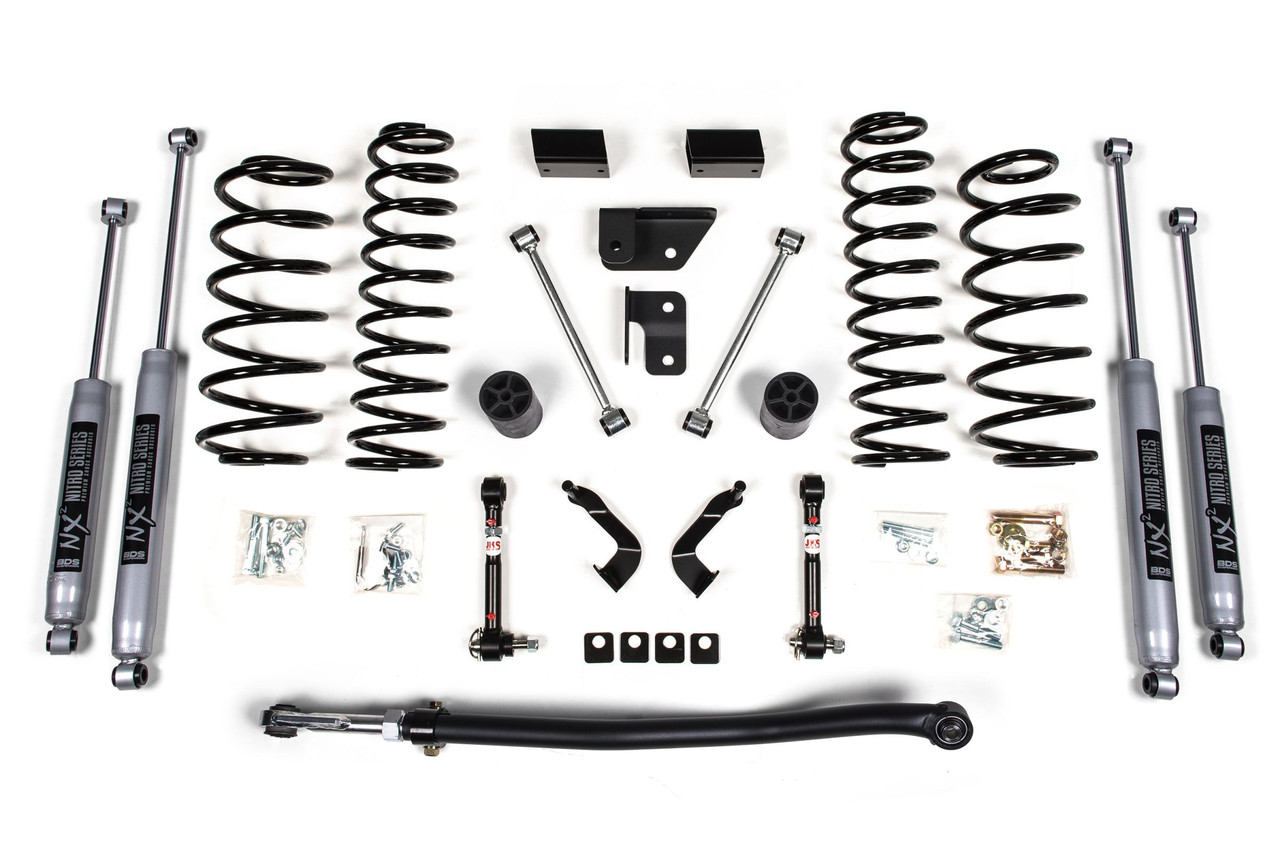

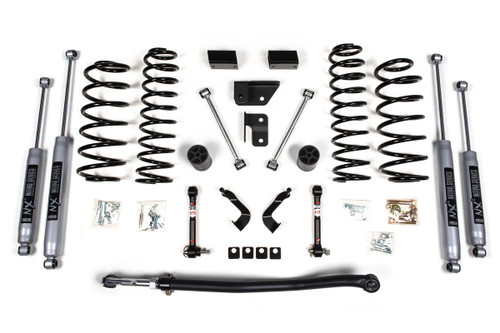

BDS SUSPENSION BDS1437FS 3 INCH LIFT KIT JEEP WRANGLER JL 18-25 4-DOOR FOX 2.0 PERFORMANCE SHOCKS

Improve the ride and style of your Jeep Wrangler JL 4 Door with this 3-inch lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires at an affordable price.

The lift kit includes front and rear BDS Pro-Ride Coil Springs, a heavy duty adjustable front track bar is utilized to re-center the front axle, bump stop extensions, front lower control arm cam locks, JKS quicker disconnects to unlock the front suspension's potential to flex while maintaining quiet on road operation, rear sway bar links, and your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8 inch solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 3 inch

1. Full bump clearance.
2. Rubbing can occur under full articulation.
3. Non-Rubicon comes from the factory at a lower ride height, which will net slightly more lift final stance the same for all models.
4. Stock wheels cannot be reinstalled without spacers due to rear sway bar interference.
5. Will not fit 4xe models.
6. Will not fit Rubicon 392 models.
7. Does not fit Diesel models

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Front HD track bar to correctly position the front axle and control lateral movement
• Rear track bar bracket repositions rear axle under vehicle
• Lower cam locks to correct caster for alignment
• Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
• Allows clearance for 37 inch Tires

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Tire Size: 37 x 12.5 Wheel Diameter: 17 x 9 Back Spacing: 4.5

Kit Components:

• Includes one BDS014330, 2018-2025 Jeep Wrangler JL 3 inch Lift Box Kit, UPC Code 658848614066
• Includes one BDS034340, 2018-2025 Jeep Wrangler JL 3 inch Front Coil Spring Box Kit, UPC Code 658848616800
• Includes one BDS034346, 2018-2025 Jeep Wrangler JL 3 inch Rear Coil Spring Box Kit, UPC Code 658848616817
• Includes two FOX98524177, 2018-2025 Jeep JL Front, PS, 2.0, Internal Floating Piston, 9.6 inch, 2-3 inch Lift, UPC Code 788000423745
• Includes two FOX98524178, 2018-2025 Jeep JL Rear, PS, 2.0, Internal Floating Piston, 11.1 inch, 2-3 inch Lift, UPC Code 788000423783

Elevate your Jeep Wrangler JL's capabilities and aesthetics with the BDS Suspension BDS1437FS 3-inch Lift Kit designed for 4-Door models produced between 2018 and 2025. This comprehensive lift kit enhances your vehicle’s stance while providing the flexibility to accommodate tires up to 37 inches in diameter, transforming both the look and performance of your off-road experience.

Engineered with precision, this kit features full-length Pro-Ride Coil Springs that deliver a smooth, predictable ride across a range of terrains. These gas-specific, progressive rate springs are crafted from high tensile steel, ensuring maximum durability without succumbing to premature coil bind. The kit also includes a heavy-duty adjustable front track bar, allowing you to recenter the front axle effortlessly, maintaining optimal handling and steering geometry.

To enhance off-road performance, the BDS suspension system incorporates front lower control arm cam locks and JKS quicker disconnects. These components provide additional suspension flex while maintaining a quiet operation on the road. The rear sway bar links and a choice between NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance shocks are included, ensuring outstanding damping performance for improved ride quality.

Installation is straightforward, thanks to all essential components being included, such as bump stop extensions and an easy-to-follow assembly guide. The robust design of the FOX 2.0 shocks features a durable aluminum body and high-flow piston design, tailored for superior performance that enhances the driving experience.

Upgrade your Jeep’s trail capabilities while guaranteeing a stylish lift with the BDS Suspension BDS1437FS lift kit, where performance meets affordability for the adventurous spirit. Suitable for non-Rubicon models and offering a perfect fit for a variety of driving conditions, this lift kit is a must-have for off-road enthusiasts.
