BDS SUSPENSION BDS1433H 6.5 INCH LIFT KIT LONG ARM JEEP CHEROKEE XJ 84-01 CHRYSLER 8.25 NX2 NITRO SHOCKS

Maximize the capability of your 1984-2001 Jeep Cherokee XJ with this 6.5-inch lift kit with long arm conversion from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires. By maximizing the length of both the upper and lower control arms, BDS has minimized caster change for optimal handling and minimized road forces. The control arm geometry is setup with a massive belly pan that incorporates the link mounts and is built to smash rocks. Believe it or not, this system is completely bolt-on with no welding to the unibody required!

Up front the lift kit includes a belly pan with new pivot mounts, heavy duty lower flex arms and adjustable upper flex arms to optimize handling characteristics, 4.5 inch Pro-Ride coil springs capable of full coil bind and bump stop extensions to control the compression travel, but increase wheel travel. Also included are braided stainless steel brake lines, ultimate sway bar disconnects, and front adjustable track bar with flex joint fits into the existing frame mount and a drop pitman arm to improve the steering and handling geometry.

The rear kit utilizes Glide-Ride leaf springs for maximum travel, stainless braided brake line, and extended shackles that let the spring flex. Finish off the kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Long Arm Conversion

Upgrading the standard control arms to a long arm adds strength, improves handling and takes offroad articulation to the next level. This upgrade consists of massive 1/4 inch steel frame mounted brackets to install the oversized upper and lower formed long arms.

The arms are formed for maximum Tire clearance and allow the stock control arm tabs to remain on the vehicle. The upper arms are solid stock while the heavy wall tubular lower arms utilize oversized greaseable polyurethane bushings for superior road vibration isolation.

Pro-Ride Coil Springs

A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

• NX2 Nitro Shocks
• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 6.5 inch
• Rear Lift Height: 6 inch

1. Measure the rear u-bolts before ordering. Some XJ's are equipped with a Dana 44 rear axle.
2. CV style rear driveshaft (not included) and slip yoke eliminator kit is required.
3. The system only works with 4.0L motor and automatic transmission.
4. Some welding is required.
5. '96 and earlier models may require a longer emergency brake cable.

• Redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel
• ProRide coil springs offer improved ride quality and more articulation
• Massive belly pan that incorporates the link mounts and is built to smash rocks
• Glideride leaf springs to provide full lift height and increased capacity
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Front HD track bar to correctly position the front axle and control lateral movement
• Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
• Easy, 100 percent Bolt-on installation
• Allows clearance for 33 inch Tires

Rear Axle Option

Chrylser 8.25 Axle

The Jeep Cherokee was produced with two different rear axles (Chrysler 8.25 or Dana 35). You will need to measure your rear u-bolts to ensure that you get the correct new u-bolts. Basically, just measure the diameter of the axle or the I.D. of your rear u-bolts.

Chrysler axles require 3 inch wide u-bolts and Dana 35 axles require 2-3/4 inch wide u-bolts. Some 1987-90 models came with a Dana 44. Measure and call BDS for proper u-bolt fitment.

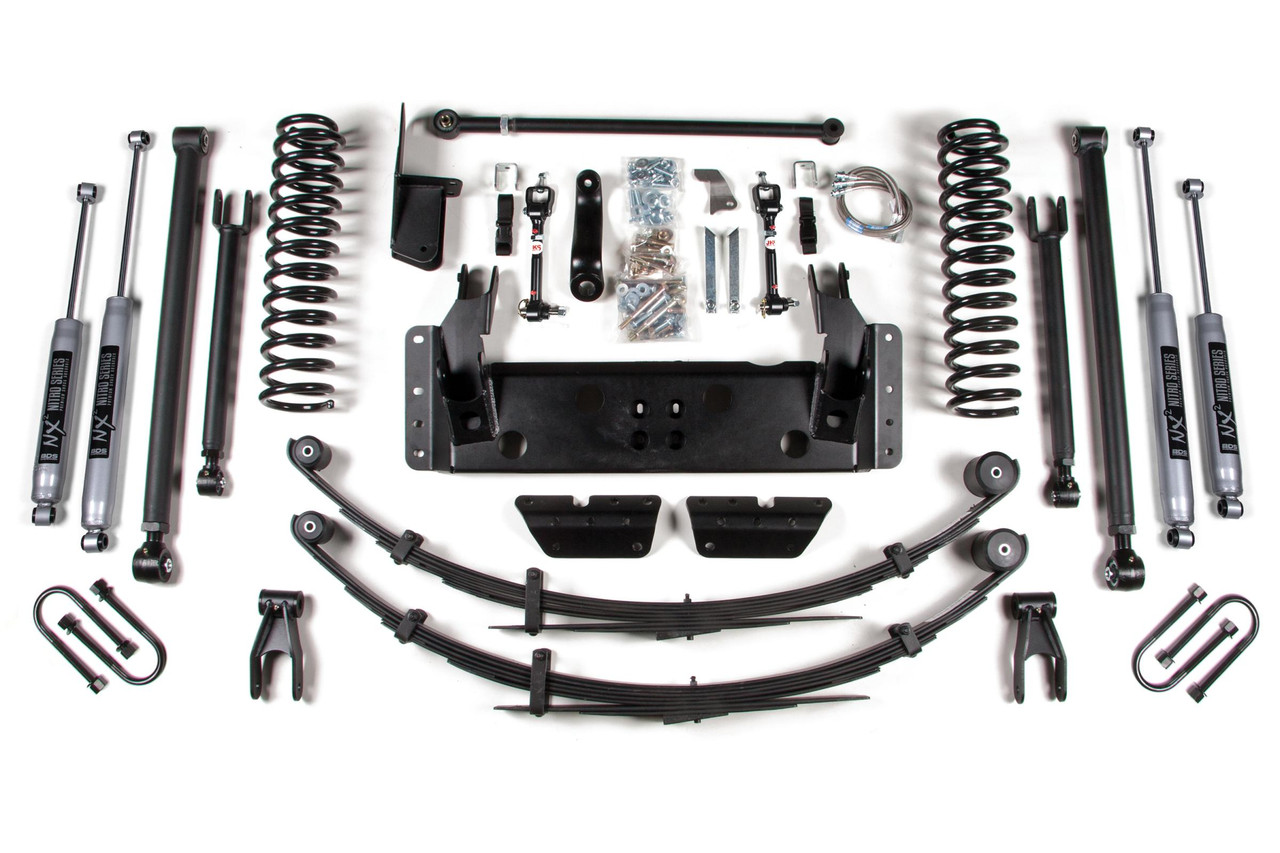

Kit Components:

• Includes two BDS004509, 84-01 Jeep XJ 5in Rear Spring, UPC Code 658848611584
• Includes one BDS014641, Jeep XJ 6.5 inch Long Arm Box Kit, UPC Code 658848614257
• Includes one BDS014654, Jeep XJ 6.5in Long Arm Xmember Box Kit, UPC Code 658848614264
• Includes one BDS014655, XJ Long Arm Box Kit, UPC Code 658848614271
• Includes one BDS014659, Jeep XJ 6.5in Rear Box Kit w/Chrysler, UPC Code 658848614301
• Includes one BDS034652, Jeep XJ 6.5in Front Coil Kit, UPC Code 658848616978
• Includes one BDS174002, 97-01 Jeep XJ Frt Bumpstops (small dia), UPC Code 711745608153
• Includes two BDS85920, Shock - 25.95 x 15.40 x 2 - EB1/EB1, UPC Code 711745609983
• Includes two BDS85961, Shock- 26.20 x 15.80 x 2-3/8 - EB1/BP7, UPC Code 711745610125
• Includes one JKS2001, Quicker Disconnect, UPC Code 814897010017

Elevate your off-road adventure with the BDS SUSPENSION BDS1433H 6.5 Inch Lift Kit Long Arm for the Jeep Cherokee XJ (1984-2001). Crafted for serious Jeep enthusiasts, this comprehensive lift kit enhances your vehicle's capability, allowing for the installation of larger 33-inch tires and significantly improving ground clearance.

The heart of this lift kit lies in its long arm conversion, which maximizes upper and lower control arm lengths for reduced caster change, ensuring optimal handling on rugged terrains. Built with durability in mind, the massive belly pan incorporates critical link mounts while enhancing protection against rocky trails. The bolt-on design ensures that installation is straightforward, with no welding required for the unibody—perfect for those who prefer easy DIY upgrades.

Key components include heavy-duty lower flex arms, adjustable upper flex arms, and 4.5-inch Pro-Ride coil springs that guarantee smooth rides across various surfaces. Enhance your stopping power with braided stainless steel brake lines, and enjoy the quick disconnect features of the sway bar for superior off-road articulation. The front adjustable track bar and drop pitman arm further refine steering geometry, bringing precision handling to your driving experience.

For the rear, Glide-Ride leaf springs maximize travel and come with extended shackles, offering improved flex and stability. Choose between the specially tuned NX2 Nitro shocks or FOX 2.0 Internal Floating Piston performance series shocks, each designed to elevate dampening performance and ride quality.

Perfect your Jeep's off-road prowess with a kit that delivers exceptional performance, reliability, and style. Whether you’re navigating rocky paths or cruising through mud, the BDS SUSPENSION lift kit transforms your Jeep Cherokee XJ into a formidable off-roading machine.
