BDS SUSPENSION BDS1431H 5 INCH LIFT KIT JEEP WRANGLER YJ 87-95 NX2 NITRO SHOCKS

BDS steps up the performance and capability of the 1987-1995 Jeep Wrangler YJ with a 5-inch suspension lift kit. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

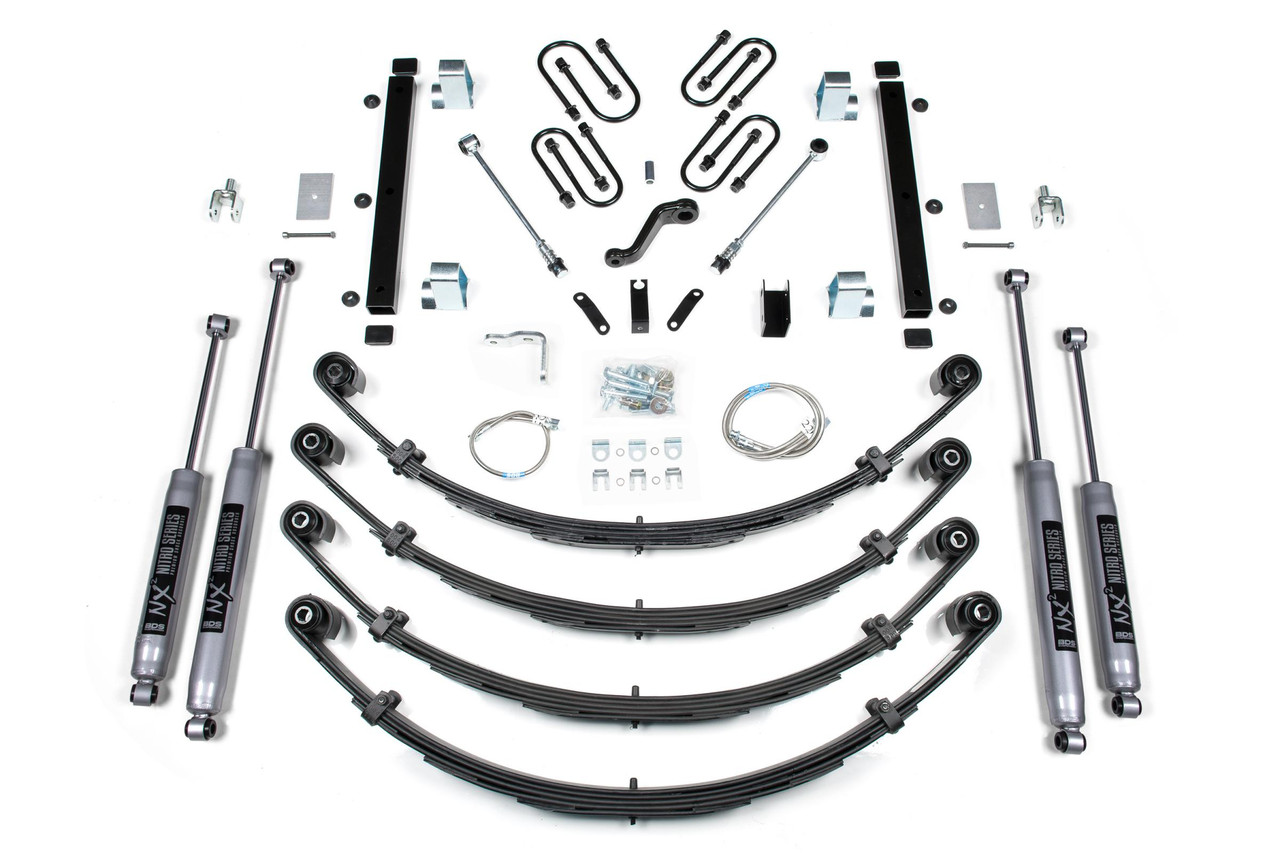

This 5-inch lift kit includes front and rear Glide-Ride leaf springs with new u-bolts, front and rear track bar relocation brackets to center the axle, stainless steel braided brake lines, sway bar disconnects, power steering pitman arm, bump stop extensions, and a transfer case drop kit to ease the drive line angles. Round out this kit with specially tuned NX2 nitro series gas shocks to offer improved damper performance.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. These spring feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps and a full military wrap to protect your spring eyes from the rocks. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 5 inch

1. May require a larger diameter driveshaft if equipped with a 41-1/2 inch front driveshaft.
2. A slip yoke eliminator and dual cardan style rear driveshaft is required.
3. Extended shackles are recommended to clear the military wraps on the springs.
4. Pitman arms will NOT fit YJ models equipped with manual steering.

• Glideride leaf springs to provide full lift height and increased capacity
• Front and rear track bar relocation brackets to center the axle
• Transfer case drop kit to ease the drive line angles
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Easy, 100 percent Bolt-on installation

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Kit Components:

• Includes four BDS004500, 87-95 Jeep YJ 5in Leaf Spring, UPC Code 658848611577
• Includes one BDS014501, 87-95 YJ 5-6 Inch Complete Box Kit, UPC Code 658848614240
• Includes one BDS124013, Jeep YJ Front Solid Anti-sway Bar Kit, UPC Code 711745604575
• Includes two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609471
• Includes two BDS85920, Shock - 25.95 x 15.40 x 2 - EB1/EB1, UPC Code 711745609983

Elevate your off-road adventures with the BDS Suspension BDS1431H 5 Inch Lift Kit designed specifically for the 1987-1995 Jeep Wrangler YJ. This comprehensive lift kit enhances your vehicle’s performance and capability, providing the perfect balance of height and control. Achieve a striking stance while gaining the ability to fit larger tires, accommodating up to 33-inch models for an aggressive look and improved traction.

The kit features top-of-the-line components, including front and rear Glide-Ride leaf springs that are engineered for exceptional performance. The multi-leaf progressive spring rate design ensures a smooth ride, whether loaded or unloaded, thanks to the exclusive triple-stage leaf spring setup. With tapered leafs, anti-friction pads, and military-wrapped ends, durability and flexibility are at the forefront of this design, enabling superior handling across tough terrains.

Included with the suspension lift is a complete set of NX2 Nitro Series shocks, expertly tuned for optimal damping performance. These nitrogen-charged, twin-tube shocks incorporate a 10-stage velocity-sensitive valving system that adapts to varying road conditions, while the robust construction ensures lasting reliability.

Installation is straightforward with a 100% bolt-on design, complemented by essential components such as track bar relocation brackets for axle centering, stainless steel braided brake lines, and a transfer case drop kit to alleviate drive line angles. BDS goes the extra mile to guarantee a hassle-free upgrade experience for your Jeep Wrangler YJ, enhancing overall capability, comfort, and style.

Transform your Jeep into a formidable off-road machine with the BDS Suspension Lift Kit, and experience the perfect blend of performance and aesthetics on every adventure.
