BDS SUSPENSION BDS1424H 3 INCH LIFT KIT JEEP WRANGLER JK 07-11 2-DOOR FIXED SWAY BAR LINKS NX2 NITRO SHOCKS

Upgrade the ride and style of your 2007-2011 Jeep Wrangler JK 2 Door with this 3-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes 3 inch Pro-Ride coil springs capable of full coil bind and 2 inch bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, alignment cams to fine tune front caster angles, and sway bar links.

In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 3 inch lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 3 inch

1. Exhaust modification may be required.
2. This kit is FMVSS No.126 Compliant
3. This kit is right hand drive compatible.

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Rear track bar bracket repositions rear axle under vehicle
• Lower cam locks to correct caster for alignment
• Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
• Allows clearance for 35 inch Tires

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Fixed Links

• Required for use on Rubicon models with electronic disconnect.
• Improves handling with proper sway bar operating angle
• Heavy-duty steel construction with zinc finish
• Polyurethane hourglass bushings for long life and quiet operation

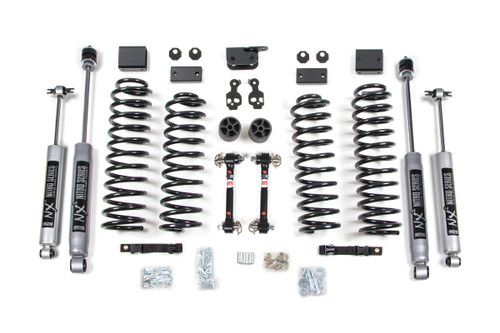

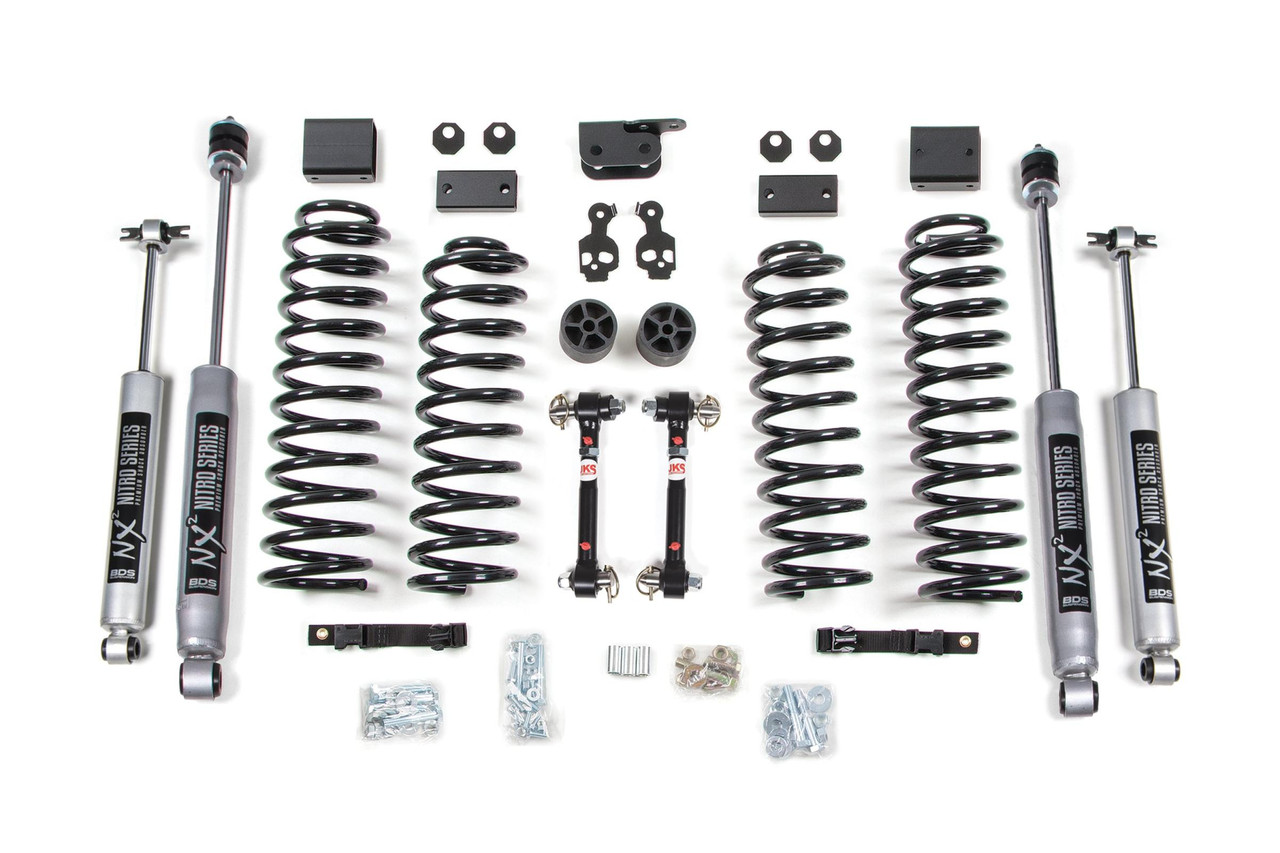

Kit Components:

• Includes one BDS014311, Jeep Wrangler JK Rubicon 3in Box Kit, UPC Code 658848614035
• Includes one BDS034209, 2007-2018 Jeep Wrangler (JK) 2 Door /3in 4 Door/2in Rear Coil Springs, UPC Code 658848616701
• Includes one BDS034312, 2007-2018 Jeep Wrangler (JK) 2 Door 3in Front Coils, UPC Code 658848616787
• Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
• Includes two BDS85951, Shock- 25.95 x 15.40 x 2 - BP18/EB1, UPC Code 711745610040

Elevate the performance and aesthetics of your 2007-2011 Jeep Wrangler JK 2-Door with the BDS14824H 3 Inch Lift Kit, expertly crafted to provide enhanced clearance and a commanding presence on the road and off the beaten path. This comprehensive lift kit includes all essential components to transform your vehicle, accommodating up to 35-inch tires without compromising ride quality or functionality.

At its core, the kit features 3-inch Pro-Ride coil springs, designed for full coil bind prevention and optimized compression travel. Accompanied by 2-inch bump stop extensions, the setup promotes improved wheel travel and articulation, ensuring a smooth ride over diverse terrains. Essential accessories like brake line brackets and alignment cams allow for precise adjustments, enhancing control of front caster angles and maintaining stability.

The rear section incorporates Pro-Ride coil springs paired with sway bar drop brackets and a frame-mounted track bar relocation bracket to effectively counter axle shift, providing a balanced and secure driving experience. The option to choose between specially tuned NX2 nitro shocks or FOX 2.0 Internal Floating Piston shocks allows you to customize damping performance to your specific needs.

This lift kit is designed to support heavy-duty demands, featuring fixed sway bar links for optimal handling, manufactured from durable steel with a protective zinc finish. The polyurethane bushings ensure a quiet operation, while the compliance with FMVSS No.126 means that safety is not compromised.

The BDS Suspension lift kit is not just about height; it enhances your Jeep’s functionality and versatility, allowing for adventurous detours while maintaining a bold and stylish profile. Whether you’re tackling rugged trails or cruising city streets, this lift kit is the perfect upgrade for any Jeep enthusiast.
