BDS SUSPENSION BDS1423FS 3 INCH LIFT KIT JEEP WRANGLER JK 07-11 2-DOOR SWAY BAR DISCONNECTS FOX 2.0 PERFORMANCE SHOCKS

Upgrade the ride and style of your 2007-2011 Jeep Wrangler JK 2 Door with this 3-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes 3 inch Pro-Ride coil springs capable of full coil bind and 2 inch bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, alignment cams to fine tune front caster angles, and sway bar links.

In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 3 inch lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 3 inch

1. Exhaust modification may be required.
2. This kit is FMVSS No.126 Compliant
3. This kit is right hand drive compatible.

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Rear track bar bracket repositions rear axle under vehicle
• Lower cam locks to correct caster for alignment
• Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
• Allows clearance for 35 inch Tires

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Sway Bar Link Option Disconnects

• Gain 30 percent more axle articulationl by disconnecting your front sway bar
• Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation
• Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces
• Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability

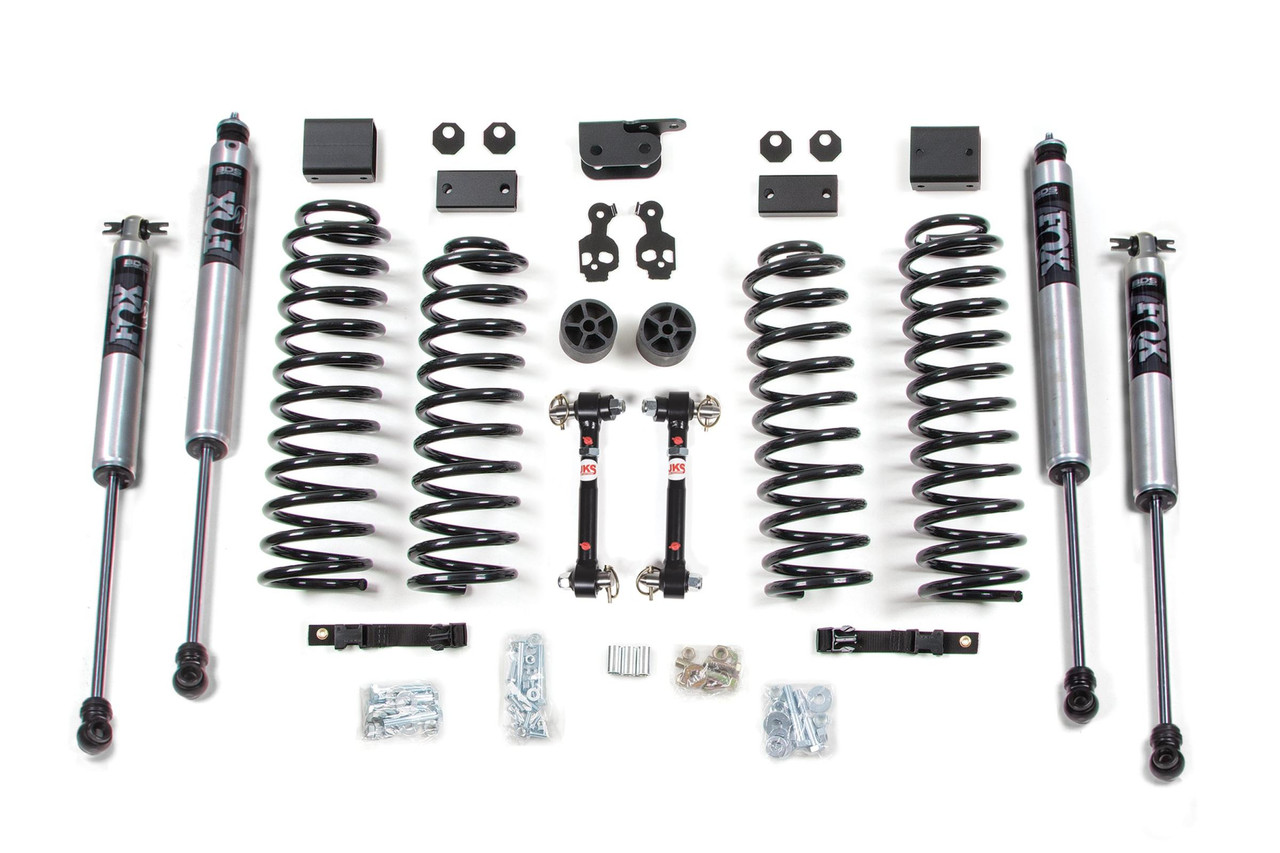

Kit Components:

• Includes one BDS014310, Jeep Wrangler JK 3in Box Kit, UPC Code 658848614028
• Includes one BDS034209, 2007-2018 Jeep Wrangler (JK) 2 Door /3in 4 Door/2in Rear Coil Springs, UPC Code 658848616701
• Includes one BDS034312, 2007-2018 Jeep Wrangler (JK) 2 Door 3in Front Coils, UPC Code 658848616787
• Includes two FOX98224921, Fox 2.0 Shock 25.12 x 15.55 x 2- S50/EB1
• Includes two FOX98224951, Fox 2.0 Shock 26.35 x 16.75 x 2-BP18/EB1

Transform your 2007-2011 Jeep Wrangler JK 2-Door into an off-road powerhouse with the BDS SUSPENSION BDS1423FS 3 Inch Lift Kit. Engineered for enhanced performance and style, this comprehensive lift kit elevates your vehicle by 3 inches, providing the clearance needed for larger tires up to 35 inches.

At the heart of this kit are the robust Pro-Ride coil springs. These full-length, gas-specific springs are designed to maintain a smooth, predictable ride across various terrains while preventing premature coil bind. Coupled with 2-inch bump stop extensions, it maximizes wheel articulation and compression travel for an unbeatable off-road experience.

The installation includes essential components such as sway bar links, brake line brackets, and alignment cams for precise front caster adjustments, ensuring stability and control on challenging landscapes. The rear section features Pro-Ride coil springs and sway bar drop brackets that reposition the rear axle, seamlessly correcting any axle shift.

Choose from the specially tuned NX2 Nitro Series gas shocks or FOX 2.0 Performance Series shocks, both designed to elevate your damping capabilities significantly. The FOX shocks are crafted with an internal floating piston for superior performance, featuring a streamlined aluminum body and durable heat-treated alloy steel shaft.

Equipped with sway bar disconnects, this kit allows for 30 percent more axle articulation, ensuring maximum flexibility on uneven surfaces. With grease fittings for easy maintenance, you'll enjoy a hassle-free operation every time you hit the trails.

Safety and compliance are paramount; this kit is FMVSS No.126 compliant and suitable for right-hand drive vehicles. Elevate your off-road adventures with the BDS SUSPENSION BDS1423FS Lift Kit, an essential upgrade for any Wrangler enthusiast.
