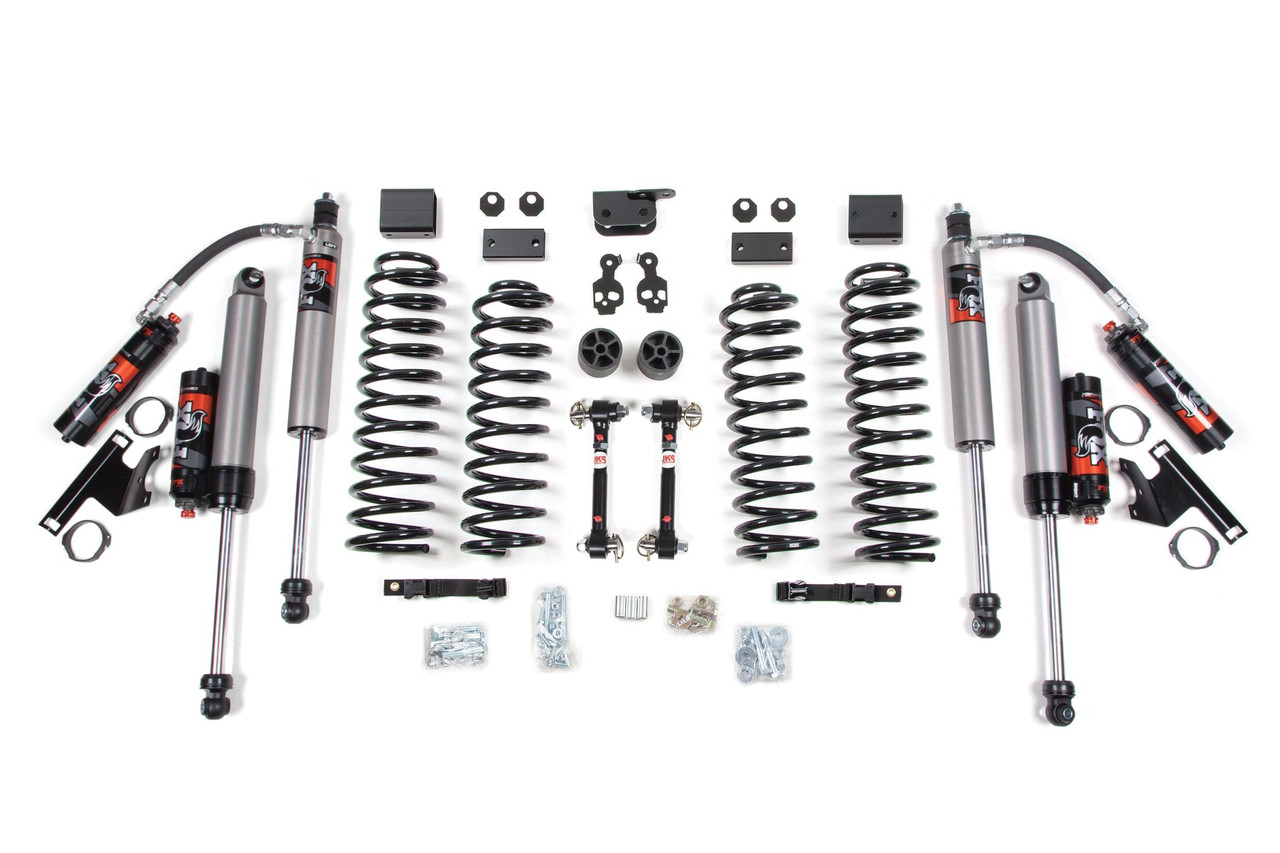

BDS SUSPENSION BDS1423FPE 3 INCH LIFT KIT JEEP WRANGLER JK 07-11 2-DOOR SWAY BAR DISCONNECTS FOX 2.5 PERFORMANCE ELITE SHOCKS

Upgrade the ride and style of your 2007-2011 Jeep Wrangler JK 2 Door with this 3-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes 3 inch Pro-Ride coil springs capable of full coil bind and 2 inch bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, alignment cams to fine tune front caster angles, and sway bar links.

In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 3 inch lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 3 inch

1. Exhaust modification may be required.
2. This kit is FMVSS No.126 Compliant
3. This kit is right hand drive compatible.

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Rear track bar bracket repositions rear axle under vehicle
• Lower cam locks to correct caster for alignment
• Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
• Allows clearance for 35 inch Tires

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Sway Bar Link Option Disconnects

• Gain 30 percent more axle articulationl by disconnecting your front sway bar
• Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation
• Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces
• Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability

Kit Components:

• Includes one BDS014310, Jeep Wrangler JK 3in Box Kit, UPC Code 658848614028
• Includes one BDS034209, 2007-2018 Jeep Wrangler (JK) 2 Door /3in 4 Door/2in Rear Coil Springs, UPC Code 658848616701
• Includes one BDS034312, 2007-2018 Jeep Wrangler (JK) 2 Door 3in Front Coils, UPC Code 658848616787
• Includes one FOX88326091, Kit: 07-18 Jeep Wrangler JK Front, 2.5 Truck Fox Performance Elite Series, R/R, 2.5-4 inchРЎСљ Lift, Dual Speed Compression Adjust
• Includes one FOX88326092, Kit: 07-18 Jeep Wrangler JK Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2.5-4 inchРЎСљ Lift, Dual Speed Compression Adjust

Transforming your 2007-2011 Jeep Wrangler JK 2-Door into an off-road powerhouse is effortless with the BDS Suspension BDS1423FPE 3-Inch Lift Kit. Engineered specifically for the Wrangler, this kit not only elevates your ride height by three inches but also ensures you gain the clearance needed to accommodate larger 35-inch tires, enhancing both stance and performance on various terrains.

Safety and stability are paramount, which is why the lift kit features robust Pro-Ride coil springs at the front and rear. These advanced springs are designed to maximize wheel travel while controlling compression, providing a smooth and reliable ride. Along with the springs, the kit includes bump stop extensions, sway bar links, brake line brackets, and alignment cams to ensure precise caster angles.

The rear componentry is just as impressive, featuring sway bar drop brackets and a frame-mounted track bar relocation bracket to effectively manage axle positioning and prevent shift during intense maneuvers. Choose between NX2 nitro gas shocks or FOX 2.0 Internal Floating Piston shocks for superior shock performance, allowing for comprehensive adjustment based on your load and terrain.

Included sway bar disconnects enhance your off-road capability, offering a quick 30% increase in axle articulation when needed. With features like stainless tapered mounting posts and spherical bushings, these connectors ensure smooth transitions even on irregular surfaces.

This lift kit is FMVSS No.126 compliant and is designed with durability in mind, featuring high-tensile steel construction for long-lasting performance. Backed by a 1-year manufacturer’s warranty, you can trust the BDS SUSPENSION BDS1423FPE Lift Kit to elevate your driving experience on and off the road, making every adventure achievable.
