BDS SUSPENSION BDS1421FS 5.5 INCH LIFT KIT LONG ARM JEEP WRANGLER JK 07-18 2-DOOR SWAY BAR DISCONNECTS FOX 2.0 PERFORMANCE SHOCKS

Maximize the capability of your 2007-2018 Jeep Wrangler 2 Door with this 5.5-inch lift kit with long arm conversion from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires. This 4-inch lift kit system improves on the factory 4-link with a redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel.

Up front the lift kit includes new pivot mounts that are constructed from 1/4 inch thick steel and work with the new heavy duty lower flex arms and adjustable upper flex arms to optimize handling characteristics, 4 inch Pro-Ride coil springs capable of full coil bind and 3 inch bump stop extensions to control the compression travel, but increase wheel travel. Also included are braided stainless steel brake lines, sway bar links, and front track bar relocation bracket and pitman arm to improve the steering and handling geometry.

In the rear the kit utilizes new pivot mounts designed to work with the new heavy duty lower flex arms and adjustable upper flex arms, Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 4 inch lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Long Arm Conversion

Upgrading the standard control arms to a long arm adds strength, improves handling and takes offroad articulation to the next level. This upgrade consists of massive 1/4 inch steel frame mounted brackets to install the oversized upper and lower formed long arms. The arms are formed for maximum Tire clearance and allow the stock control arm tabs to remain on the vehicle. The upper arms are solid stock while the heavy wall tubular lower arms utilize oversized greaseable polyurethane bushings for superior road vibration isolation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 5 inch

1. Will not fit 2wd models.
2. The front and rear driveshafts are maxed out at full droop. The front driveshaft boot can contact the transmission pan at extreme articulation on some models. Replacement of the front and rear driveshafts are recommended.
3. Exhaust modification may be required.

• Redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel
• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Rear track bar bracket repositions rear axle under vehicle
• Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
• Allows clearance for 37 inch Tires

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Sway Bar Link Option Disconnects

• Gain 30 percent more axle articulationl by disconnecting your front sway bar
• Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation
• Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces
• Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability

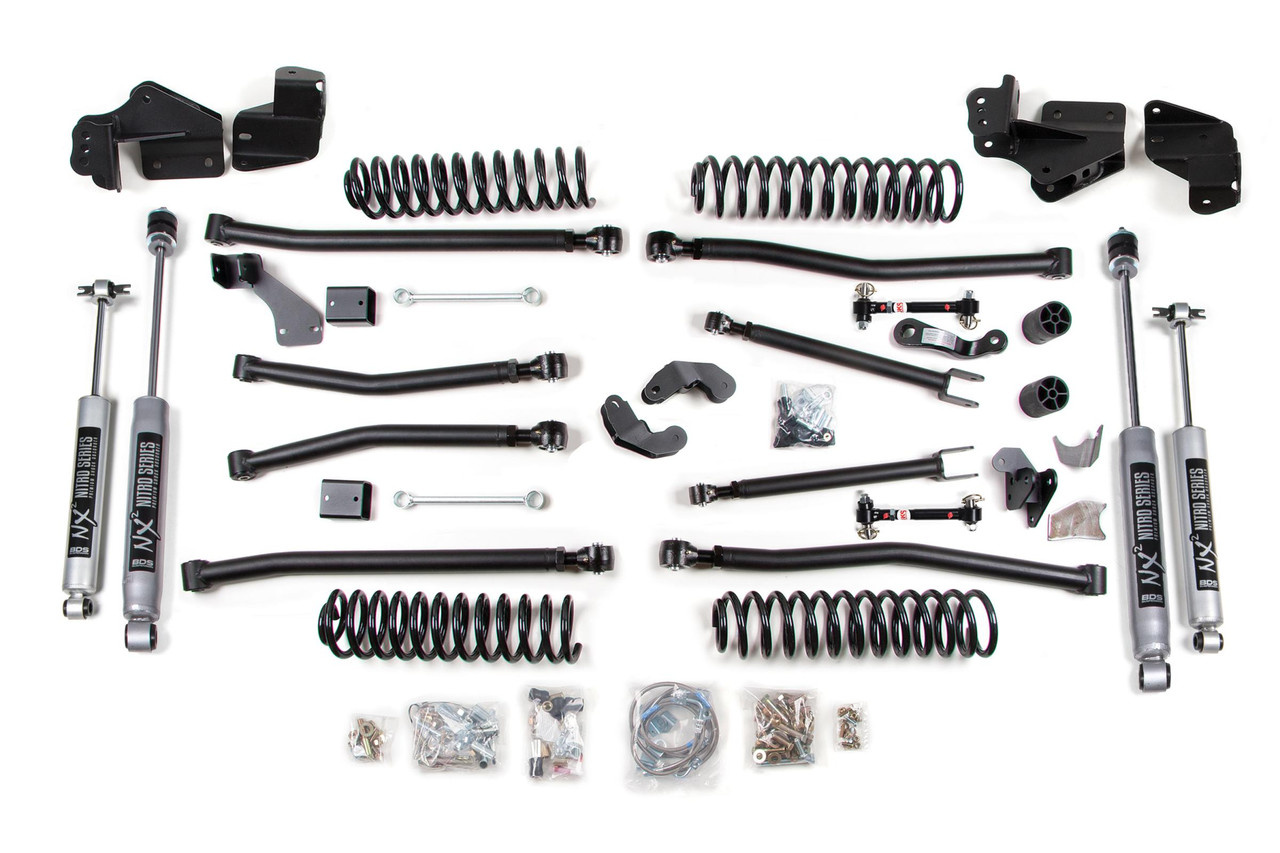

Kit Components:

• Includes one BDS014663, Jeep Wrangler JK 5.5/6.5 Long Arm Box Kit, UPC Code 658848614325
• Includes one BDS014689, JK Rear Long Arm Box Kit, UPC Code 658848614332
• Includes one BDS014691, JK Front Long Arm Box Kit, UPC Code 658848614356
• Includes one BDS034411, 2007-2018 Jeep Wrangler (JK) 2 Door /5.5in 4 Door/4.5in Front Coil Kit, UPC Code 658848616855
• Includes one BDS034419, 2007-2018 Jeep Wrangler (JK) 2 Door /5in 4 Door/4 Inch Rear Coil Kit, UPC Code 658848616862
• Includes two FOX98224922, Fox 2.0 Shock 27.25 x 16.65 x 2- S50/EB1
• Includes two FOX98224959, Fox 2.0 Shock 27.95 x 17.35 x 2-BP18/EB1

Transform your 2007-2018 Jeep Wrangler 2 Door into an unbeatable off-road machine with the BDS SUSPENSION BDS1421FS 5.5 Inch Lift Kit. This comprehensive long arm conversion kit elevates your ride height by 5.5 inches, enhancing both aesthetics and functionality. Designed for enthusiasts seeking optimal performance, it provides the necessary clearance for up to 37-inch tires, allowing you to tackle any terrain with confidence.

The standout feature of this kit is the advanced redesigned 4-link long arm system that significantly improves articulation and wheel control throughout motion. The robust 1/4 inch thick steel pivot mounts ensure durability, working in harmony with heavy-duty lower flex and adjustable upper flex arms to fine-tune handling dynamics. Included are Pro-Ride coil springs, engineered for full coil bind capabilities, and bump stop extensions that enhance wheel travel and compression control.

In addition to front upgrades, the rear section of the kit mirrors this commitment to performance with its new pivot mounts and essential components such as sway bar drop brackets and a rear track bar relocation bracket, designed to counter axle shift for a balanced ride. Select between specially tuned NX2 gas shocks or FOX 2.0 Internal Floating Piston shocks to further upgrade your damping performance.

The BDS1421FS is about more than just lift; it encompasses superior ride quality and off-road agility. The sway bar disconnects allow for an impressive 30% increase in axle articulation, ensuring your Jeep can flex over rocky landscapes effortlessly.

Every element of this lift kit has been meticulously crafted from high-tensile materials to guarantee long-lasting reliability. Upgrade your Jeep with this lift kit and experience unparalleled off-road adventures today.
