BDS SUSPENSION

BDS SUSPENSION BDS1419H 4 INCH LIFT KIT LONG ARM JEEP WRANGLER JK 07-18 2-DOOR SWAY BAR DISCONNECTS NX2 NITRO SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1419H
MPN:
BDS1419H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1419H 4 INCH LIFT KIT LONG ARM JEEP WRANGLER JK 07-18 2-DOOR SWAY BAR DISCONNECTS NX2 NITRO SHOCKS
  • BDS SUSPENSION BDS1419H 4 INCH LIFT KIT LONG ARM JEEP WRANGLER JK 07-18 2-DOOR SWAY BAR DISCONNECTS NX2 NITRO SHOCKS
$3,076.55

Description

Maximize the capability of your 2007-2018 Jeep Wrangler 2 Door with this 4-inch lift kit with long arm conversion from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires. This 4-inch lift kit system improves on the factory 4-link with a redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel.

Up front the lift kit includes new pivot mounts that are constructed from 1/4 inch thick steel and work with the new heavy duty lower flex arms and adjustable upper flex arms to optimize handling characteristics, 4 inch Pro-Ride coil springs capable of full coil bind and 3 inch bump stop extensions to control the compression travel, but increase wheel travel. Also included are braided stainless steel brake lines, sway bar links, and front track bar relocation bracket and pitman arm to improve the steering and handling geometry.

In the rear the kit utilizes new pivot mounts designed to work with the new heavy duty lower flex arms and adjustable upper flex arms, Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 4 inch lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Long Arm Conversion

Upgrading the standard control arms to a long arm adds strength, improves handling and takes offroad articulation to the next level. This upgrade consists of massive 1/4 inch steel frame mounted brackets to install the oversized upper and lower formed long arms. The arms are formed for maximum Tire clearance and allow the stock control arm tabs to remain on the vehicle. The upper arms are solid stock while the heavy wall tubular lower arms utilize oversized greaseable polyurethane bushings for superior road vibration isolation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Coil Springs
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 4 inch
  1. Will not fit 2wd models.
  2. The front and rear driveshafts are maxed out at full droop. The front driveshaft boot can contact the transmission pan at extreme articulation on some models. Replacement of the front and rear driveshafts are recommended.
  3. Exhaust modification may be required.
  • Redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel
  • ProRide coil springs offer improved ride quality and more articulation
  • Sway bar quicker disconnects and extended rear link for improved offroad flex
  • Rear track bar bracket repositions rear axle under vehicle
  • Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
  • Allows clearance for 37 inch Tires

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Sway Bar Link Option Disconnects

  • Gain 30 percent more axle articulationl by disconnecting your front sway bar
  • Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation
  • Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces
  • Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability

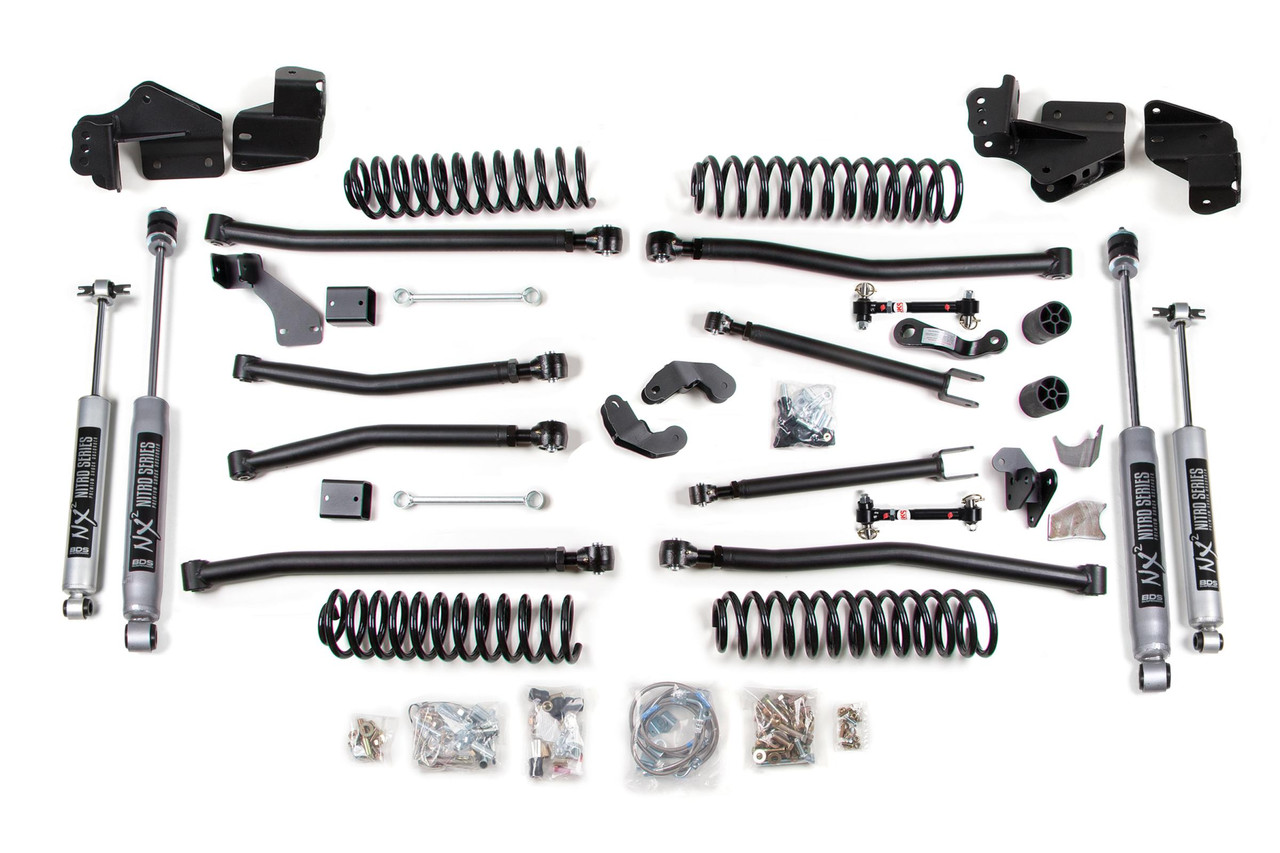

Kit Components:

  • Includes one BDS014463, 2007-2018 Jeep Wrangler JK 4 Inch Long Arm Main Box Kit, UPC Code 658848614226
  • Includes one BDS014689, JK Rear Long Arm Box Kit, UPC Code 658848614332
  • Includes one BDS014691, JK Front Long Arm Box Kit, UPC Code 658848614356
  • Includes one BDS034311, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Front Coil Springs, UPC Code 658848616770
  • Includes one BDS034319, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Rear Coil Springs, UPC Code 658848616794
  • Includes two BDS85922, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609990
  • Includes two BDS85951, Shock- 25.95 x 15.40 x 2 - BP18/EB1, UPC Code 711745610040

Enhance your off-road experience with the BDS Suspension BDS1419H 4-Inch Lift Kit Long Arm, specifically designed for the 2007-2018 Jeep Wrangler 2-Door. This comprehensive lift kit offers unparalleled performance, allowing you to maximize your vehicle's potential while gaining the necessary clearance for 37-inch tires.

The innovative 4-link long arm conversion optimizes articulation and control, vastly improving wheel travel performance compared to the factory setup. Constructed with robust 1/4-inch thick steel, the new pivot mounts seamlessly integrate with durable lower flex arms and adjustable upper flex arms, enhancing the overall handling characteristics of your Jeep.

Included in the kit are premium 4-inch Pro-Ride coil springs designed to provide reliable lift height and a smooth ride across diverse terrains. These coil springs are made from high tensile steel, ensuring maximum reliability without the risk of premature coil bind. Additional features like braided stainless steel brake lines, sway bar links, and a track bar relocation bracket work harmoniously to improve steering and handling geometry.

The long arm design consists of massive frame-mounted brackets that facilitate the installation of oversized upper and lower formed control arms, crafted for maximum tire clearance while maintaining the stock control arm tabs. This setup employs oversized greaseable polyurethane bushings for outstanding isolation from road vibrations.

Optionally, you can select between the NX2 Nitro Series gas shocks or FOX 2.0 Internal Floating Piston performance series shocks, both offering superior damping performance and enhanced ride control. Furthermore, the kit includes sway bar disconnects, allowing for an additional 30% axle articulation when off-roading.

With the BDS1419H 4-Inch Lift Kit, elevate your Jeep Wrangler’s capabilities while enjoying a premium off-road driving experience.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
