BDS SUSPENSION BDS1411H 3 INCH LIFT KIT JEEP WRANGLER JK 07-11 4-DOOR SWAY BAR DISCONNECT NX2 NITRO SHOCKS

Upgrade the ride and style of your 2007-2011 Jeep Wrangler JK 4 Door with this 3-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes 3 inch Pro-Ride coil springs capable of full coil bind and 2 inch bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, alignment cams to fine tune front caster angles, and sway bar links.

In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 3 inch lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 3 inch

1. This kit is FMVSS No.126 Compliant
2. This kit is right hand drive compatible.

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Rear track bar bracket repositions rear axle under vehicle
• Lower cam locks to correct caster for alignment
• Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
• Allows clearance for 35 inch Tires

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Sway Bar Link Option Disconnects

• Gain 30 percent more axle articulationl by disconnecting your front sway bar
• Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation
• Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces
• Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability

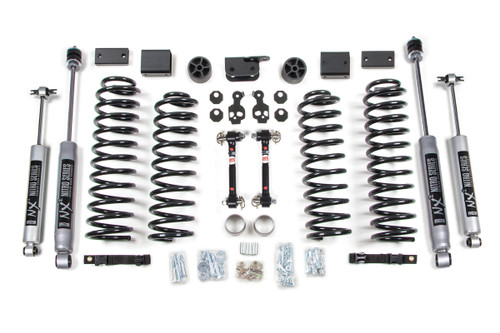

Kit Components:

• Includes one BDS014310, Jeep Wrangler JK 3in Box Kit, UPC Code 658848614028
• Includes one BDS034311, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Front Coil Springs, UPC Code 658848616770
• Includes one BDS034319, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Rear Coil Springs, UPC Code 658848616794
• Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
• Includes two BDS85951, Shock- 25.95 x 15.40 x 2 - BP18/EB1, UPC Code 711745610040

Elevate your off-road adventures with the BDS SUSPENSION BDS1411H 3 Inch Lift Kit, custom-crafted for the 2007-2011 Jeep Wrangler JK 4-Door. This top-tier suspension kit not only enhances the aesthetic appeal of your vehicle but also significantly improves its performance and handling off the beaten track.

Featuring robust 3-inch Pro-Ride coil springs, this lift kit promises superior ride quality and increased wheel travel, enabling you to navigate tough terrains with confidence. The inclusion of 2-inch bump stop extensions controls compression travel while promoting optimal performance. The kit’s design accommodates up to 35-inch tires, empowering you to conquer any obstacle along the way.

The comprehensive installation package includes essential components such as brake line brackets and alignment cams to ensure precise caster angles. The rear section is fortified with Pro-Ride coil springs, sway bar drop brackets, and a frame-mounted track bar relocation bracket that rectifies axle shift—resulting in enhanced vehicle stability.

Choose between the NX2 Nitro Series shocks or the FOX 2.0 Internal Floating Piston shocks for tailored damper performance, both significantly augmenting your Jeep’s handling capabilities. Designed for ultimate articulation and ease of use, the sway bar quick disconnects grant you an impressive 30% increase in axle flexibility while ensuring smooth operation with grease fittings.

Built with high-tensile strength materials, each dedicated component fosters long-lasting reliability. The kit complies with FMVSS No.126 standards, making it a steadfast choice for both off-road enthusiasts and everyday drivers alike. Transform your Jeep’s performance and overall display with the BDS SUSPENSION BDS1411H Lift Kit, where durability meets exceptional engineering.
