BDS SUSPENSION

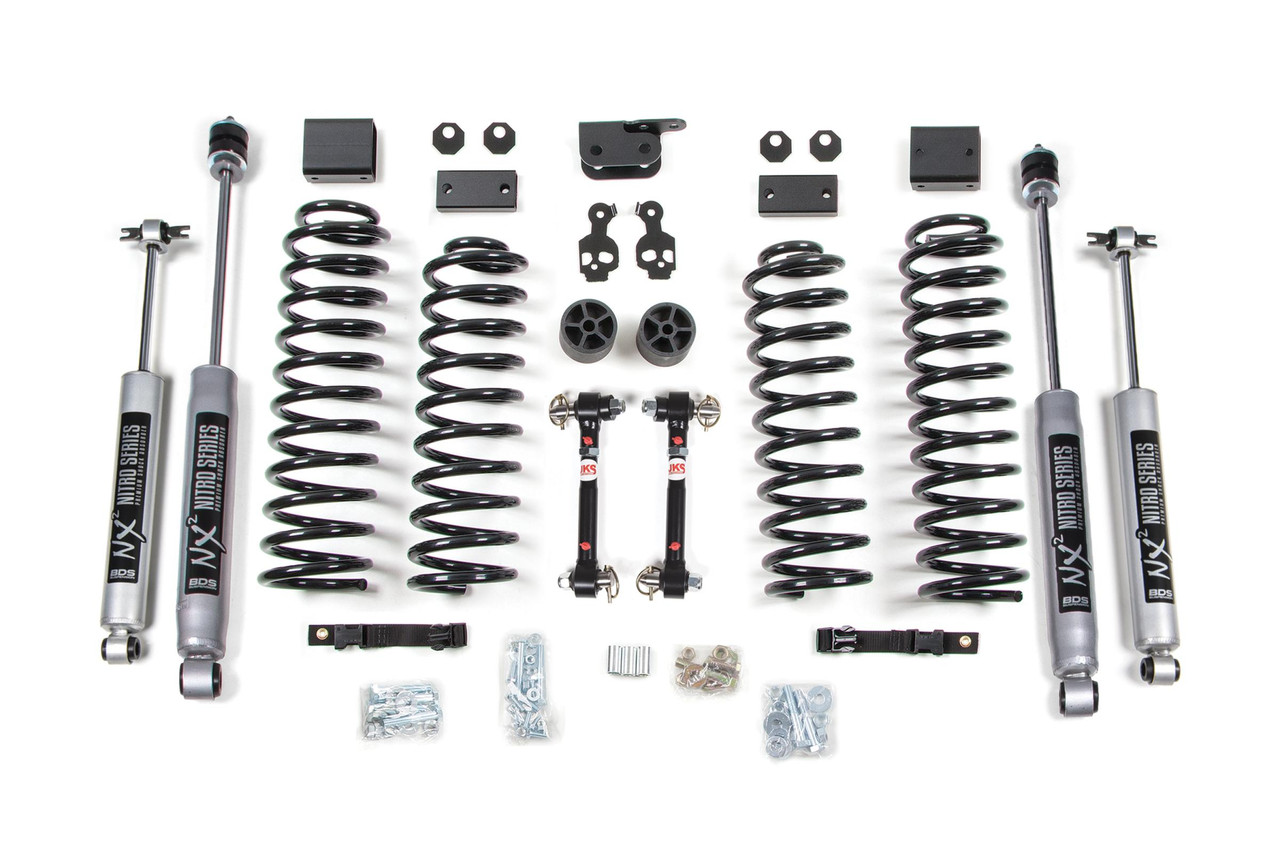

BDS SUSPENSION BDS1411FPE 3 INCH LIFT KIT JEEP WRANGLER JK 07-11 4-DOOR SWAY BAR DISCONNECTS FOX 2.5 PERFORMANCE ELITE SHOCKS
- SKU:
- BDS1411FPE
- MPN:
- BDS1411FPE
- Shipping:
- Calculated at Checkout
Description
Upgrade the ride and style of your 2007-2011 Jeep Wrangler JK 4 Door with this 3-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes 3 inch Pro-Ride coil springs capable of full coil bind and 2 inch bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, alignment cams to fine tune front caster angles, and sway bar links.
In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 3 inch lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
- Front Lift Method: Coil Spring
- Rear Lift Method: Coil Springs
- Shocks Included: Yes
- Front Lift Height: 3 inch
- Rear Lift Height: 3 inch
- This kit is FMVSS No.126 Compliant
- This kit is right hand drive compatible.
- ProRide coil springs offer improved ride quality and more articulation
- Sway bar quicker disconnects and extended rear link for improved offroad flex
- Rear track bar bracket repositions rear axle under vehicle
- Lower cam locks to correct caster for alignment
- Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
- Allows clearance for 35 inch Tires
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Sway Bar Link Option Disconnects
- Gain 30 percent more axle articulationl by disconnecting your front sway bar
- Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation
- Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces
- Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability
Kit Components:
- Includes one BDS014310, Jeep Wrangler JK 3in Box Kit, UPC Code 658848614028
- Includes one BDS034311, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Front Coil Springs, UPC Code 658848616770
- Includes one BDS034319, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Rear Coil Springs, UPC Code 658848616794
- Includes one FOX88326091, Kit: 07-18 Jeep Wrangler JK Front, 2.5 Truck Fox Performance Elite Series, R/R, 2.5-4 inchРЎСљ Lift, Dual Speed Compression Adjust
- Includes one FOX88326092, Kit: 07-18 Jeep Wrangler JK Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2.5-4 inchРЎСљ Lift, Dual Speed Compression Adjust
At the heart of this kit are the Pro-Ride coil springs, engineered from high tensile steel to deliver a smooth, responsive ride. These full-length, gas-specific springs provide maximum articulation and prevent premature coil bind, ensuring reliability on every journey. The comprehensive setup includes essential components such as 2-inch bump stop extensions, sway bar drop brackets, and rear track bar relocation brackets that effectively correct axle shift during off-road excursions.
Choose between the highly tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance shocks for enhanced dampening tailored to your driving style and terrain. The kit’s sway bar disconnects offer an impressive 30 percent increase in axle articulation, allowing for superior flexibility on uneven surfaces, while convenient grease fittings ensure hassle-free maintenance.
Completing this performance package is an FMVSS No.126 compliant design, ensuring your lift kit adheres to safety regulations without compromising on function. Enjoy peace of mind with a 1-year manufacturer's warranty, making the BDS Suspension BDS1411FPE lift kit an unbeatable choice for adventurers looking to elevate their Jeep Wrangler JK experience. Transform your ride today, and embrace the trails ahead with confidence and style.
