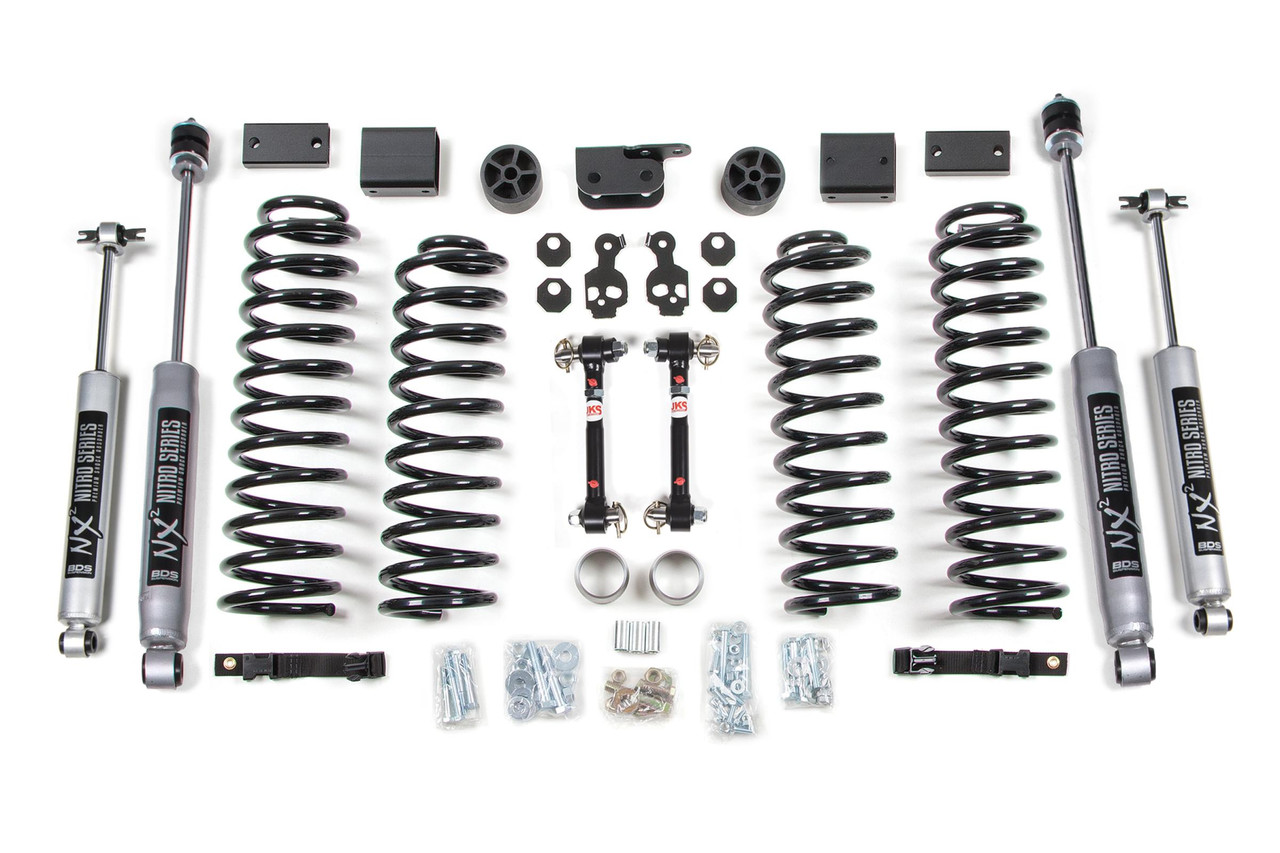

BDS SUSPENSION BDS1404H 3 INCH LIFT KIT JEEP WRANGLER JK 12-18 4-DOOR SWAY BAR FIXED LINKS NX2 NITRO SHOCKS

Upgrade the ride and style of your 2012-2018 Jeep Wrangler JK 4 Door with this 3-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes 3 inch Pro-Ride coil springs capable of full coil bind and 2 inch bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, alignment cams to fine tune front caster angles, and sway bar links.

In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 3 inch lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter.

This results in maximum reliability without premature coil bind.

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 3 inch

1. Exhaust modification may be required.
2. This kit is FMVSS No.126 Compliant
3. This kit is right-hand drive compatible. Follow right-hand drive installation instructions when installing this kit on a right-hand drive vehicle.
4. If using these rear sway bar links, the sway bar drop will not need to be installed. This also requires a wheel with 4.5 inch backspacing or less for Tire clearance.

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Rear track bar bracket repositions rear axle under vehicle
• Lower cam locks to correct caster for alignment
• Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
• Allows clearance for 35 inch Tires

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Fixed Links

• Required for use on Rubicon models with electronic disconnect.
• Improves handling with proper sway bar operating angle
• Heavy-duty steel construction with zinc finish
• Polyurethane hourglass bushings for long life and quiet operation

Kit Components:

• Includes one BDS014311, Jeep Wrangler JK Rubicon 3in Box Kit, UPC Code 658848614035
• Includes one BDS034311, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Front Coil Springs, UPC Code 658848616770
• Includes one BDS034319, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Rear Coil Springs, UPC Code 658848616794
• Includes one BDS124314, 2012-18 Jeep Wrangler JK Exhaust Extension Kit, UPC Code 711745605015
• Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
• Includes two BDS85951, Shock- 25.95 x 15.40 x 2 - BP18/EB1, UPC Code 711745610040

The BDS Suspension BDS1404H 3 Inch Lift Kit is an exceptional upgrade for your 2012-2018 Jeep Wrangler JK 4-Door, designed to enhance both the vehicle's performance and appearance. Elevating your ride by a full 3 inches, this comprehensive lift kit allows for ample clearance, accommodating up to 35-inch tires effortlessly.

The kit features advanced Pro-Ride coil springs engineered specifically for off-road use, delivering the perfect balance of lift and a smooth ride over varying terrains. These high-tensile steel springs are designed to prevent premature coil bind, ensuring maximum reliability during your adventures. Alongside the front configuration, 2-inch bump stop extensions aid in managing compression travel, resulting in increased wheel travel for superior handling.

In the rear, the kit’s Pro-Ride coil springs work in tandem with sway bar drop brackets and a rear frame-mounted track bar relocation bracket. This innovation corrects axle shift, enhancing your vehicle's stability. Riders have a choice of either specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance shocks, both of which provide exceptional damping performance.

Further enhancing the kit, fixed sway bar links are included, particularly beneficial for Rubicon models with electronic disconnects, ensuring optimal sway bar operation and handling. The robust construction and precise alignment components work together to allow for improved flexibility and articulation on challenging terrains.

Installation may require minor exhaust modifications, enhancing compatibility with right-hand drive vehicles. Every component, from the shock options to the included brackets and springs, is meticulously designed for easy installation and long-lived performance.

Transform your Jeep Wrangler JK with the BDS1404H Lift Kit, where rugged functionality meets stylish elevation.
