BDS SUSPENSION BDS1302FS 6 INCH LIFT KIT FORD F250/F350 SUPER DUTY 99-04 4WD SQUARE U BOLT BLOCK KIT WITHOUT FACTORY OVERLOAD FOX 2.0 PERFORMANCE SERIES

Take your 1999-2004 Ford F250 and F350 Super Duty truck to the next level with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36 inch tires.

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks. Optional replacement full leaf spring packs for an improved ride on or off-road.

Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
• Cast steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Front Lift Method: Leaf Spring
• Rear Lift Method: Block & Add-A-Leaf
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tires & Wheels

• (Trimming may be required)
• 36 x 12.5 with 16 x 10 and 4 in. Backspace

Front U-Bolt Type

• Square Front U Bolt
• This vehicle was manufactured with either square front U-Bolts or radiused front U-bolts.
• Typically, 1999-2000 are square and 2001-2004 are radiused, but that is not always the case.

The radiused U-bolts aren't square or round, but rather have a gentle radius that matches a cast factory upper U-bolt plate on top of the factory spring. Vehicles manufactured prior to 2-28-99 require yet another different box kit due to a change in the factory track bar. Please make the appropriate selection for your particular vehicle.

Rear Lift Option
Block Kit

• Block Kit Without Factory Overload
• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
• Blocks made of steel for high strength.
• Designed to provide correct pinion angles.

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Notes:
These truck were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
The Superduty came from the factory with a 2 inch, 3 inch, or 4 inch rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
Will not fit dually applications.
If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit in the options section.
The front driveshaft will need to be lengthened and/or clearance ground depending on how the vehicle is equipped.

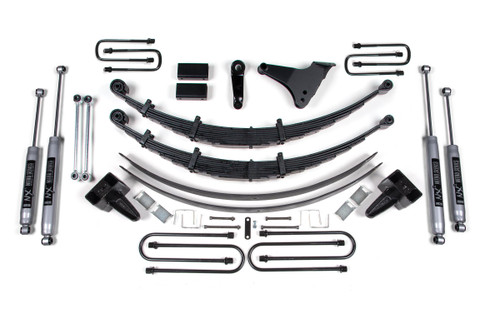

Kit Components:

• Includes two BDS003602, Ford F250/350 6 Inch Front Spring, UPC Code 658848611362
• Includes one BDS013005, 3/99-00 Ford F250/350 6&8in Front Box Kt, UPC Code 658848612956
• Includes one BDS013329, 1999-2007 Ford F250/F350 Rear Box Kit w/o overload, UPC Code 658848613304
• Includes one BDS113218, 2005-2007 Ford F250/F350 Add-a-leaf, UPC Code 658848618729
• Includes two FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
• Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Enhance the performance and capability of your 1999-2004 Ford F250 or F350 Super Duty with the BDS SUSPENSION BDS1302FS 6 Inch Lift Kit. Built specifically for 4WD configurations without factory overload, this comprehensive lift kit allows for the installation of tires up to 36 inches in diameter, offering a commanding presence and improved off-road performance.

The front assembly features Glide-Ride leaf springs that deliver a smooth ride, regardless of load. Engineered with an advanced multi-leaf progressive spring rate design, these springs provide unrivaled flexibility throughout the suspension cycle. To ensure optimal steering geometry post-lift, the kit includes a forged drop pitman arm paired with a heavy-duty track bar relocation bracket, effectively maintaining proper steering angles and enhancing vehicle handling.

In the rear, the kit incorporates high-strength lift blocks and longer u-bolts, designed to establish a balanced stance. Optional NX2 Nitro or FOX 2.0 Performance Series shocks improve both on-road comfort and off-road capability, with application-specific valving that maximizes performance in any environment.

Installation is straightforward, featuring 100% bolt-on components that allow for a hassle-free set-up. The cast steel blocks guarantee a stable ride, while the included sway bar links and bump stop brackets optimize suspension travel. The kit is designed for a front lift height of 6 inches and a rear lift height of 5 inches.

Compatible with a range of tire and wheel combinations, this lift kit provides everything you need to elevate your truck’s performance and aesthetics. Note that precise selection of parts according to your vehicle's production date is critical, ensuring the best fit and performance for your Super Duty. Optimize your truck’s capabilities today with the BDS Suspension Lift Kit.
