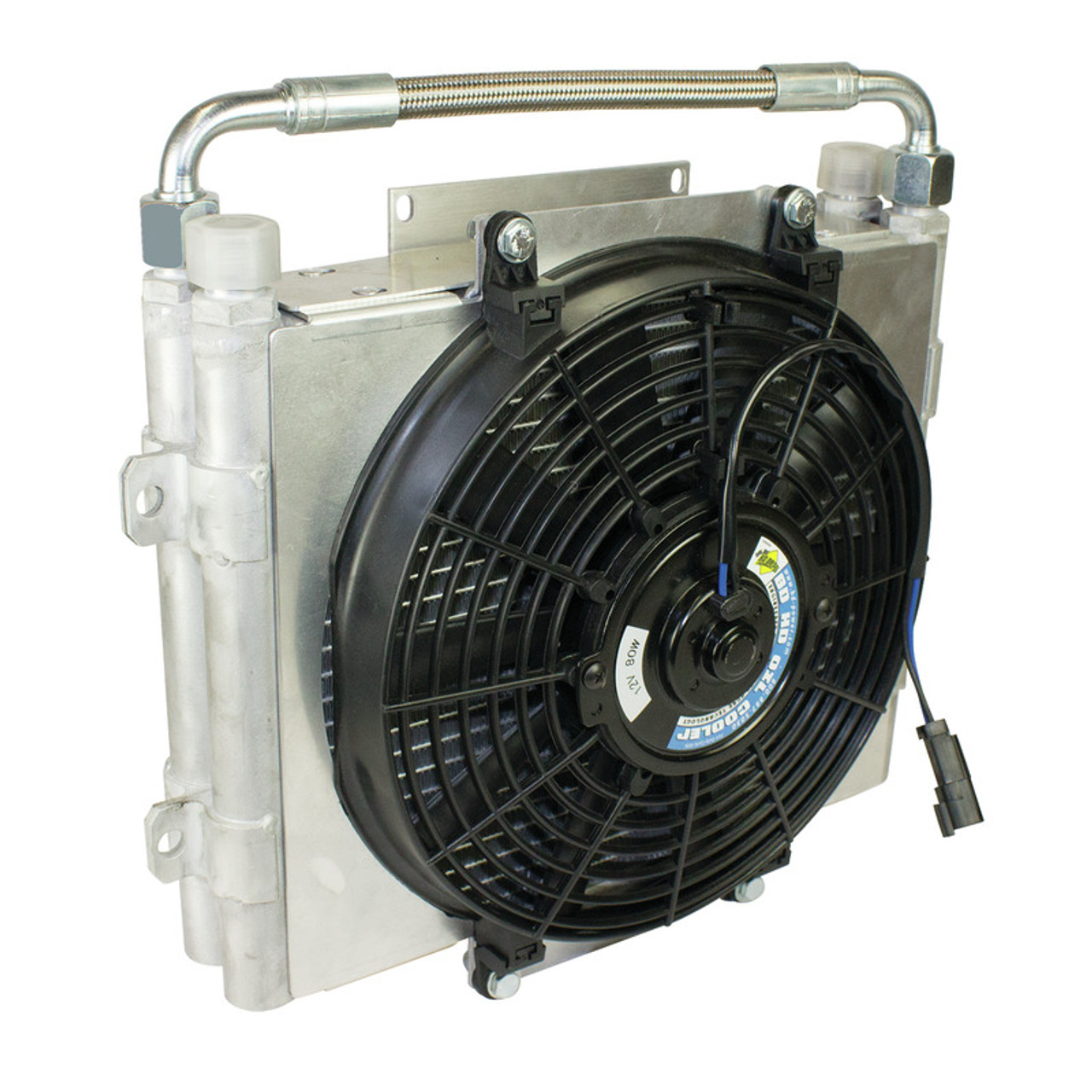

BD DIESEL 1300601-DS XTRUDE TRANS COOLER DOUBLE STACKED (NO INSTALL KIT)

Hot Tranmission oil has to be Cooled to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350 percent temperature drop versus the factory system - 36 percent better temperature drop than BD's standard single core kit.

The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure.

The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.

Warranty:

Parts

• 12-Months
• 24,000 Miles

Note:
Exceeding the duty cycle may result in voiding the

Warranty:

Intended to be used in conjunction with factory Tranmission coolers and not as stand-alone units

Emissions:

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)

Features:

• Cooler Assembly Only
• Double stacked cores deliver over 40,000 BTU/HR of cooling
• Over 350 percent temperature drop versus the factory system
• 136 percent better temperature drop than XTRUDED single core kit
• Motor is IP54 with 65 percent duty cycle
