BD DIESEL 1045294 IRON HORN 6.7L CUMMINS TURBO KIT S364SXE/80 0.91AR – DODGE RAM 2007.5–2018 2500/3500

Product Description

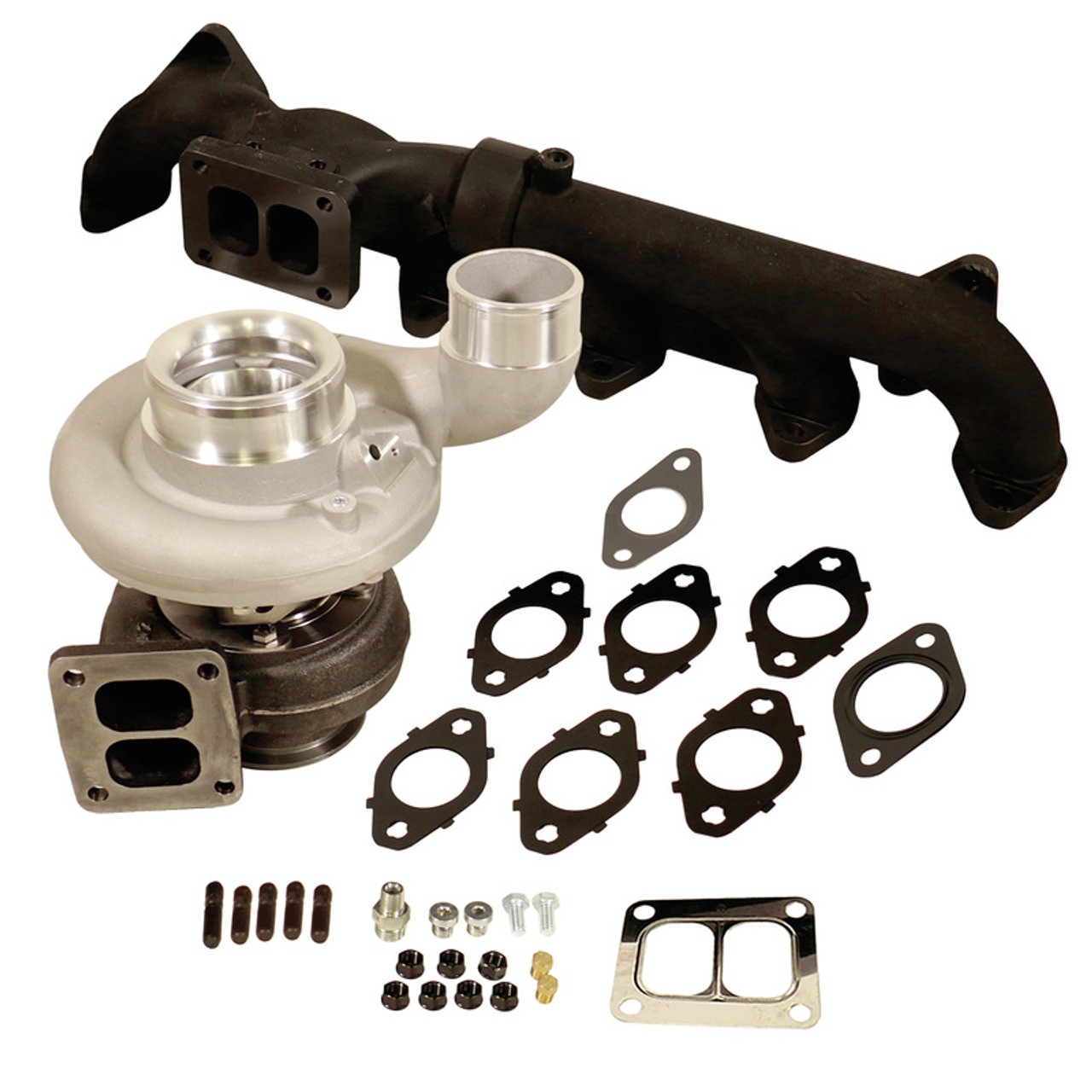

The BD DIESEL 1045294 Iron Horn Turbo Kit is a complete, bolt-on turbo upgrade for 2007.5–2018 Dodge Ram 2500/3500 trucks equipped with the 6.7L Cummins. This kit replaces the factory VGT turbo with a proven BorgWarner S300 SX-E S364SXE/80 setup featuring a 0.91 A/R turbine housing for strong response, improved airflow, and reduced exhaust drive pressure.

BD Diesel 1045294, Iron Horn turbo kit, 6.7 Cummins turbo upgrade, S364SXE/80, 0.91 A/R turbo, BorgWarner S300 SX-E, non VGT turbo conversion, lower EGT turbo kit, Ram 2500 3500 turbo kit 2007.5-2018

The Iron Horn series is designed for drivers who want a reliable non-VGT turbo conversion with clean installation and serious performance potential. By reducing restrictive drive pressure and lowering EGTs, this kit helps protect head gaskets, improves towing stability, and supports higher horsepower with the right fueling and tuning. The kit includes BD’s Performance Plus T4 6.7L exhaust manifold and necessary installation hardware for a complete upgrade.

Fitment

• 2007.5–2018 Dodge Ram 2500 / 3500
• 6.7L Cummins Diesel Engine
• Non-VGT turbo conversion kit (replaces OEM VGT turbo)
• Turbo: BorgWarner S300 SX-E (S364SXE/80)
• Turbine Housing: 0.91 A/R

Key Features & Benefits

• Complete bolt-on turbo conversion kit
• Non-VGT design improves reliability and reduces complexity
• Lower EGTs and reduced drive pressure vs factory VGT turbo
• BorgWarner S300 SX-E turbocharger engineered for performance
• Includes BD Performance Plus T4 exhaust manifold and gaskets
• Improved airflow for increased horsepower potential

Important Notes

• Tuner or programmer required to bypass VGT functions/codes when converting from factory VGT turbo
• Air intake kits may require modification depending on configuration

Cross-Reference & Compatible BD Diesel Products (BD DIESEL ONLY)

• BD DIESEL 1045293 IRON HORN 6.7L CUMMINS TURBO KIT S363SXE/80 0.91AR (2007.5–2018)
• BD DIESEL 1045295 IRON HORN 6.7L CUMMINS TURBO KIT S364SXE/80 1.00AR (2007.5–2018)
• BD DIESEL 1045296 IRON HORN 6.7L CUMMINS TURBO KIT S366SXE/80 0.91AR (2007.5–2018)
• BD DIESEL 1045298 IRON HORN 6.7L CUMMINS TURBO KIT S369SXE/80 0.91AR (2007.5–2018)

Does this replace the factory VGT turbo?

Yes. This is a non-VGT conversion kit designed to replace the factory VGT turbocharger with a BorgWarner S300 SX-E turbo.

Will I need tuning to install this kit?

Yes. A tuner or programmer is required to bypass factory VGT functions and prevent related codes when converting to a non-VGT turbo.

Is this good for towing?

Yes. This kit is designed to reduce drive pressure and EGTs while improving airflow and reliability, making it a strong choice for towing and heavy use when properly matched with fueling and tuning.

Specifications for BD DIESEL PRODUCTS 1045294
