BD DIESEL

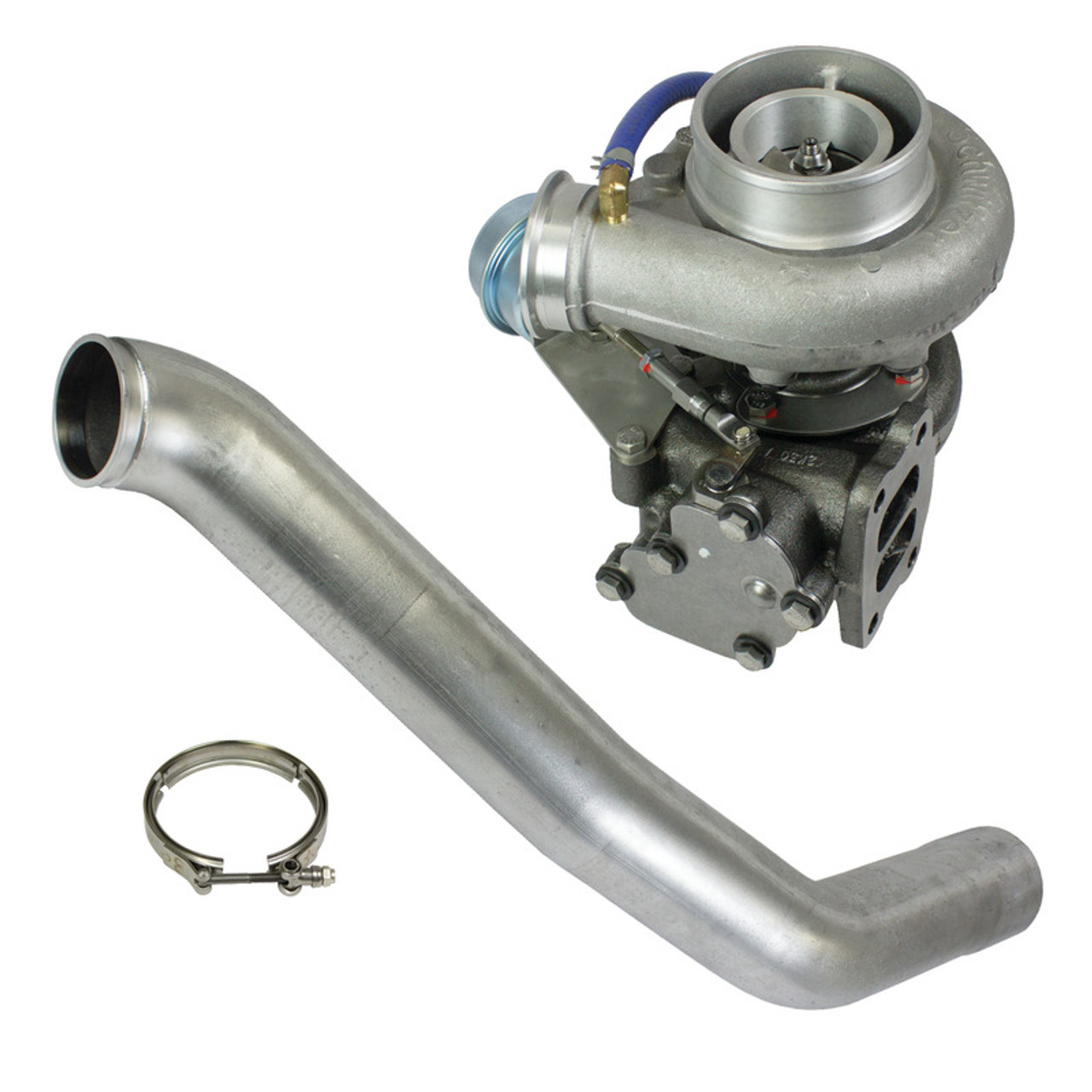

BD DIESEL 1045220 SUPER B SINGLE SX S358 TURBO KIT W / FMW BILLET WHEEL 1994-2002 DODGE CUMMINS 5.9L 12V / 24V

(No reviews yet) Write a Review

SKU:: BDD1045220
UPC:
MPN:: 1045220
Shipping:: Calculated at Checkout

$2,425.00

Current Stock:

Quantity:

Description
0 Reviews

Description

Designed for 1994-2007 5.9L Dodge trucks, the Super B Single supports modified applications making 250-425 rwhp. Featuring Borg Warner's unique Extended Tip compressor wheel technology and low inertia, full-floating journal bearings, these turbos utilize BD's unique dual-volute turbine housing. This proven design utilizes low rpm exhaust pulses for improved turbine response, while the dual-action waste gate bleeds off turbine drive pressure from both volutes. BD's turbo systems also feature a heavy-duty waste gate actuator that prevents premature opening caused by high exhaust pressure. You can even fine-tune for ambient temperature and barometric pressure changes using BD's adjustable waste gate control. The Super B single offers quick spool-up, cooler EGT's and no compressor surge. All kits come with everything you need to allow for an easy install.

FEATURES

Forged Milled Billet Wheel
Custom built to BD specifications, not a box turbo
Quick spool-up with no surging
Cooler EGTs & less smoke
Special low inertia, full-floating 6-pad thrust bearings, not 3 pad like box turbos
Dual volute T3 turbine housing utilizes low rpm exhaust pulses for improved turbine response
Efficient positive boost-to-drive pressure ratio yields high power with low EGTs
Perfect fitment to the stock turbocharger inlet connection points
BD's HD Waste gate and bracket holds boost and prevents over speed damage
Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning
Most systems can be upgraded to a twin system for more power or even better towing performance
870 CFM / 450 HP
Comp Wheel: 58mm 2.28in
A/R Ratio: 0.80
Downpipe, V-Band Clamp, Band Clamp
Turbine Wheel: 74mm 2.91in
