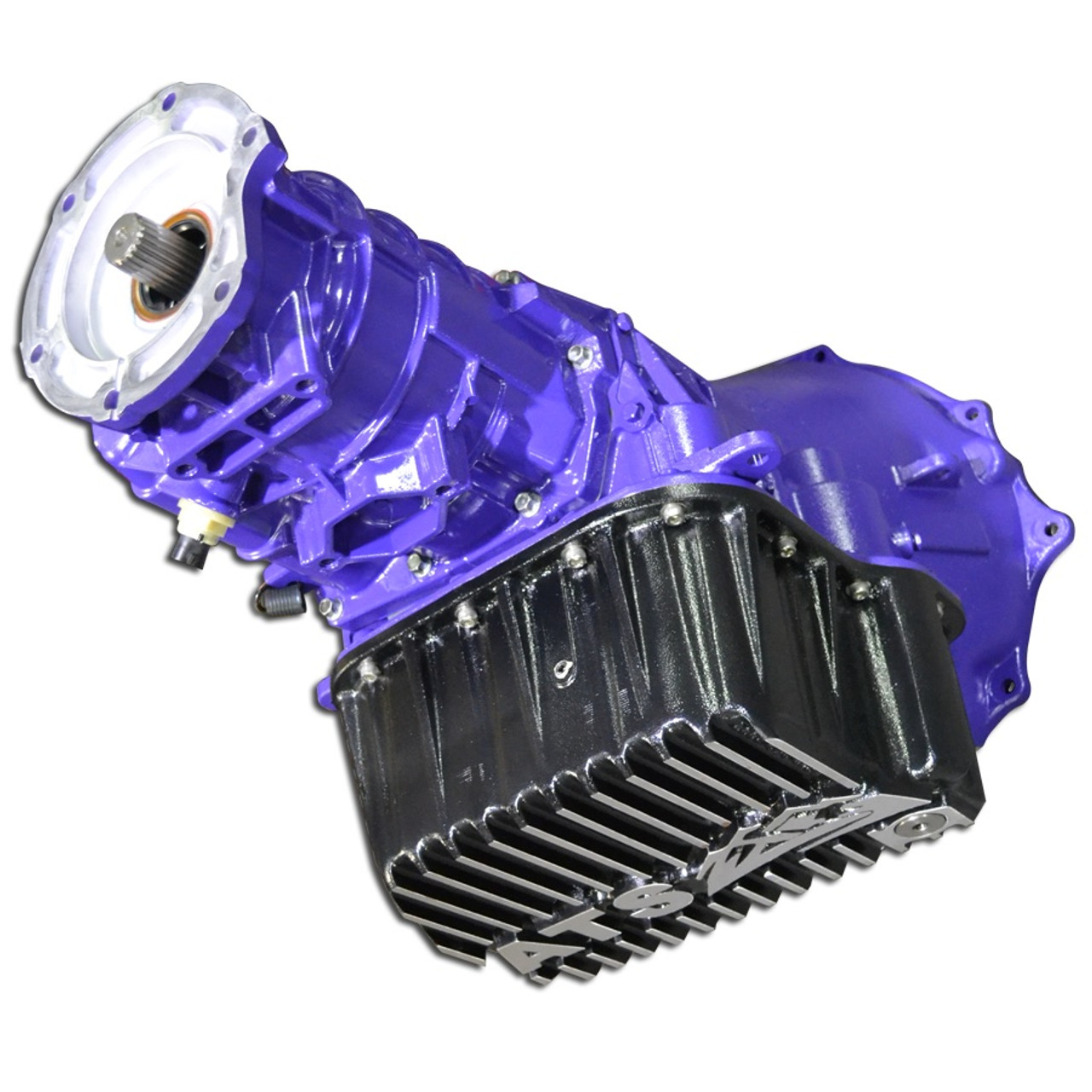

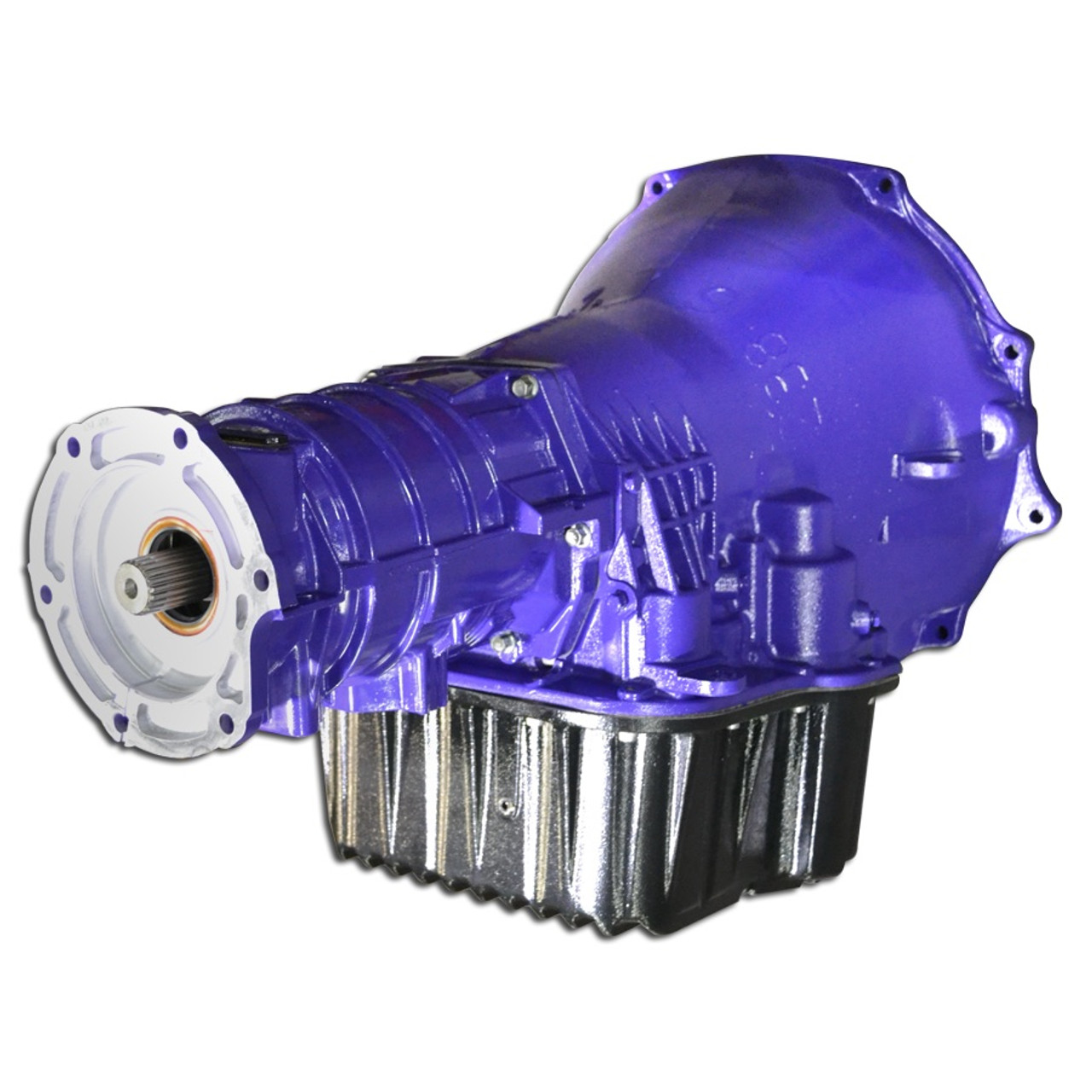

ATS 309-964-2290 48RE STG 6 PACKAGE W/ T.V. MOTOR FOR 04-05 DODGE RAM 4X4 WITH 5.9L CUMMINS

The 48RE transmission is the weakest point on a Dodge Cummins truck. Not only do they fail on trucks with minor upgrades, but even trucks in stock form have been known to be too powerful. A heavy duty truck needs parts which can stand up to heavy trailers, stop-and-go commutes to work, or high-horsepower applications. Thats why ATS modifies the transmission to make it the strongest and most reliable part of your drivetrain.

With the many shortcomings of the 48RE, none are more important than the clutch packs. This is what takes the power load and transmits it to the rear wheels. We increase the clutch count in the Forward, Overdrive, and Overdrive Brake clutch packs which allow much higher torque capacity in each gear. Clutch material is also essential which is why we use Borg Warner and Raybestos clutches which has both high torque strength as well as longevity and reliability.

Another important aspect is the hard parts on the transmission. The factory sheet metal strut anchor is replaced with a much stronger billet strut anchor, allowing more precision application of the band. Along with the factory plastic accumulator piston is replaced with a billet unit as well. The apply lever is a 1:5.0 ratio apply arm, which applies the borg warner red lining band. This band features a performance friction material capable of holding higher power levels.

The valve body receives extensive modifications as well. We give the valve body the ability to lock the torque converter in 1st and 2nd gear, circulate transmission fluid in park/reverse/neutral, machine the TV valve passage and install our proprietary TV valve sleeve, and increase line pressure. You can choose between a towing or a racing valve body.

The towing version will deliver smooth, quick, crisp shifts that enhance the drivability and operation of your transmission on the street and attached to a trailer. This is the valve body of choice for a street driven all-purpose truck.

The race valve body is our hardcore power build. It is made to sacrifice as little time as possible between shifts, shift hard and fast, and leave nothing behind. It is a very aggressive valve body and a minimum of billet input shaft and flex plate are recommended.

• ATS billet input shaft
• ATS billet flex plate
• ATS billet intermediate shaft
• ATS billet output shaft
• Commander lock-up controller
• New performance forward clutch pack and steels with 1 added friction
• New performance direct clutch pack and steels with 1 added friction
• New performance overdrive brake clutch pack and steels with 1 added friction
• New performance overdrive clutch pack and steels
• Low/reverse band replaced with Borg Warner Red Lining performance band
• Intermediate/2nd gear band replaced with Borg Warner Red Lining performance band
• 1:5.0 band apply lever
• Billet Band strut
• Billet accumulator piston
• Precision machined forward pressure plate (machined step)
• Precision machined lower forward pressure plate (machined flat)
• Precision machined overdrive brake pressure plate (machined flat)
• New direct pressure plate
• Performance low/reverse one-way clutch
• Machined TV valve sleeve (prevents sticking TV valve)
• Ability to achieve 1st and 2nd gear lockup
• Ability to circulate fluid to the torque converter in park/reverse/neutral
• Increase line pressure
• Improve shift quality and firmness
• Gasket and seal overhaul kit
• Bearings and bushing

2004.5-2005 Dodge Ram 4WD, Stage 6 Auto Trans Package Includes:

• ATS Built 48-RE Auto Trans
• ATS 5 Star Viskus Clutch Drive Torque Converter
• ATS Extra Deep Transmission Pan
• ATS Billet Input Shaft
• ATS CoPilot Torque Converter Lock-Up Controller
• ATS Billet Flex Plate
• ATS Billet Intermediate Shaft
• ATS Billet Output Shaft

The ATS 309-964-2290 48RE Stage 6 Package 4WD with T.V. Motor for the 2004-2005 Cummins 5.9L 24V is the ultimate solution for enhancing the performance and durability of your Dodge Cummins truck. Engineered to address the inherent weaknesses of the 48RE transmission, ATS has meticulously modified every aspect to ensure that it becomes the strongest and most reliable component of your drivetrain.

One of the critical upgrades includes increasing the clutch count in the Forward, Overdrive, and Overdrive Brake clutch packs to significantly boost torque capacity in each gear. By incorporating Borg Warner and Raybestos clutches known for their high torque strength, longevity, and reliability, ATS has optimized the power delivery to the rear wheels.

Enhancements to the hard parts of the transmission are equally impressive. The factory sheet metal strut anchor is replaced with a robust billet strut anchor for superior band application, while the plastic accumulator piston is swapped with a billet unit. The apply lever features a 1:5.0 ratio apply arm that engages the Borg Warner red lining band, capable of withstanding higher power levels.

The valve body undergoes extensive modifications, including the ability to lock the torque converter in 1st and 2nd gear, enhance fluid circulation, machine the TV valve passage, and increase line pressure. Customers can opt for a towing or racing valve body to suit their specific needs.

Moreover, the package includes top-of-the-line components such as ATS billet input shaft, flex plate, intermediate shaft, output shaft, and a Commander lock-up controller. With a focus on performance and durability, the Stage 6 Auto Trans Package ensures smooth, quick, and precise shifts for a superior driving experience whether on the street or towing a trailer.

For 2004.5-2005 Dodge Ram 4WD owners looking to elevate their truck's performance, the ATS Stage 6 Package is the ideal choice. Prepare your truck for enhanced power and reliability with ATS precision engineering. Please note that this item ships via truck freight and does not qualify for free shipping. Contact us for a shipping quote before your order is processed. Gear up for an unparalleled driving experience with the ATS 309-964-2290 48RE Stage 6 Package.
