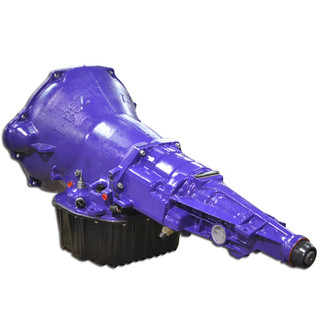

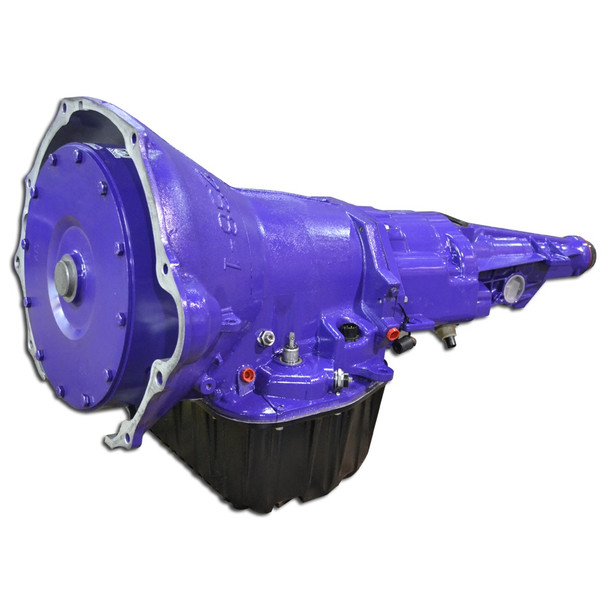

ATS 309-956-2188 47RE STG 5 PACKAGE W/ SPEEDO ADAPTER FOR 96-98 DODGE RAM 2WD WITH 5.9L CUMMINS

In 1996, Dodge went from the hydraulic 47RH to the partially electronic 47RE. The 47RE features steel planets as well as an electronic governor pressure solenoid and transducer. In re-designing the 47RE, ATS addressed inherent weaknesses to produce a strong, reliable transmission for towing, daily driving or racing. The result is a transmission featuring:

• Five Star billet torque converter
• Performance transmission pump
• Modified high performance clutch packs/bands and steels
• Valve body built around reliability and increased transmission life
• ATS billet 300M input shaft and forward hub
• ATS Commander Lockup Controller
• ATS billet flex plate
• ATS billet intermediate shaft

The modification process began with the torque converter. Instead of a stamped converter with a single lock-up clutch, the ATS Stage 5 47RE comes with our patented Five-Star torque converter. Utilizing a billet 12 bolt cover, five square tab lock-up clutches, a billet stator and other modifications, this converter is designed for heavy loads, years of reliability and brute power. The goal is to efficiently transfer your 12V's power through the converter into the transmission.

In order to handle the increased efficiency of the converter, we addressed the 47RE from bellhousing to tailshaft. The transmission's pump is modified to progressive raise line pressure, above the factory settings, to provide clamping force to the clutch packs. High-performance clutch packs are then added. Pressure plates are precisely machined to add 1 more forward and 1 more direct clutch. High performance bands, billet band strut, billet accumulator piston, and heavy duty overdrive bearings strengthen the clutch pack/band assembly.

Next is the valve body. Dodge 47RE transmissions can be plagued by sticking throttle valve issues. The valve controls shift timing and fluid flow to the clutch packs. When the valve sticks, there can be a no up-shift condition. In time, this can wear on the clutch packs and internals to hasten the transmission's life. ATS machines the bore to accept a Teflon sleeve, this ensures precise movement and control of the valve. In addition, the valve body is modified to circulate fluid in park, reverse and neutral, capable of locking the torque converter in any forward gear, and raising line pressure vs. stock.

On the Stage 5 build, ATS adds a billet 300m input shaft and forward hub. Featuring a two-piece design, the input shaft is designed to withstand greater than stock power, torque converter lock-up sooner than stock, increased towing weight and racing applications. The increased capacity comes from the material itself, which is stronger than the factory input shaft. This is coupled with a precisely engineered shaft, directed at absorbing torsional loads from increased power, and transferring it into the transmission.

The Stage 5 (as well as all ATS Transmission Packages) comes standard with the ATS Deep Pan. Featuring a finned design to dissipate heat, and adding five quarts of fluid vs. stock, the pan helps keep the transmission running cool. The ATS 47RE Stage 5 is designed for trucks with stock to extreme power increases, light and heavy towing and daily driving.

In addition, we include the ATS Commander Lock-Up Controller on this package. This controller allows the user to base lock-up on vehicle speed. Torque converter lock-up can be moved to 1st, 2nd, 3rd gear or overdrive and can be changed at any time. Our controller features in-cab adjustability, so settings can be changed with the push of a button. Every time the vehicle reaches the set speed, the converter locks. The benefit of early lock-up is reduced transmission temperatures, quicker acceleration and better fuel economy. The ATS Commander Lock-Up Controller will also synchronize lock-up with an exhaust brake, for additional braking force.

For added strength at power levels above 450 hp, the ATS billet flex plate is included on the Stage 5. The flex plate is first hard part in the transfer of power from the motor to the torque converter/transmission. As more power over stock is added, the OEM flex plate fails to hold and eventually cracks or breaks. This means the loss of all motion in the vehicle. ATS billet flex plate features a stronger material than stock, precisely machined surface for a perfect fit, and the peace of mind needed to handle power and towing weight.

Under extreme power or race applications, the stock intermediate shaft becomes a liability. The Stage 5 utilizes a billet intermediate shaft to absorb and transfer extreme power through the transmission. This shaft, arguably, is the most important since an intermediate shaft failure will result in complete transmission failure.

For moderate to extreme power applications, heavy towing or competition use. All ATS transmission packages come backed with a 5 year / 500,000 mile warranty.
1996-Early 1998 Dodge Ram 2WD w/ 12V 5.9L Cummins, Stage 5 Auto Trans Package Includes:

• ATS Built 47-RE Auto Trans w/ Speedo Adapter
• ATS 5 Star Viskus Clutch Drive Torque Converter
• ATS Extra Deep Transmission Pan
• ATS Billet Input Shaft
• ATS Co-Pilot Torque Converter Lock-Up Controller
• ATS Billet Flex Plate
• ATS Billet Intermediate Shaft

The ATS 309-956-2188 47RE Stage 5 Package 2WD with Speedo Adapter is a powerhouse transmission upgrade specifically designed for 1996-1998 Cummins 5.9L 12V engines. As Dodge transitioned to the 47RE transmission in 1996, ATS stepped in to enhance its durability and performance for various applications, from towing to racing.

This comprehensive package includes a range of top-notch components, starting with the Five Star billet torque converter that maximizes power transfer efficiently. The performance transmission pump, modified high-performance clutch packs/bands, and steels ensure robust operation under heavy loads. The valve body is meticulously designed for precise control and longevity, addressing common sticking issues that can impact shift timing and fluid flow.

Featuring an ATS billet 300M input shaft and forward hub, the transmission is tailored to handle increased power, torque converter lock-up, and towing weight. The billet flex plate and intermediate shaft further reinforce the transmission's strength for demanding power levels above 450 hp.

Included in the package is the ATS Commander Lock-Up Controller, allowing customizable torque converter lock-up based on vehicle speed, enhancing acceleration, fuel economy, and temperature management. The ATS Deep Pan adds extra fluid capacity and cooling efficiency to keep the transmission running smoothly.

For added assurance, the ATS Stage 5 package comes with a 5-year/500,000-mile warranty, ensuring peace of mind during daily driving, heavy towing, or competitive use. Ideal for moderate to extreme power applications, this transmission upgrade is a reliable choice for those seeking enhanced performance and durability from their Cummins 5.9L 12V engine.

Please note that this item ships via truck freight and does not qualify for free shipping. Once your order is placed, you will receive a shipping quote prior to any charges being applied to your card. Take your Dodge Ram 2WD to the next level with the ATS 309-956-2188 47RE Stage 5 Package.
