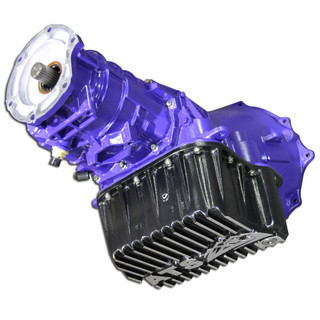

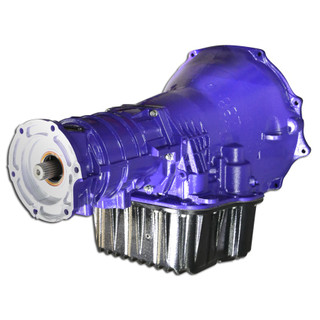

ATS 309-954-2284 48RE STG 5 PACKAGE W/ T.V. CABLE FOR 03-04 DODGE RAM 4X4 WITH 5.9L CUMMINS

48RE Stage 5 Package, Early 2004 Dodge 4WD w/ T.V. Cable.The 48RE transmission is the weakest point on a Dodge Cummins truck. Not only do they fail on trucks with minor upgrades, but even trucks in stock form have been known to be too powerful. A heavy duty truck needs parts which can stand up to heavy trailers, stop-and-go commutes to work, or high-horsepower applications. Thats why ATS modifies the transmission to make it the strongest and most reliable part of your drivetrain.

With the many shortcomings of the 48RE, none are more important than the clutch packs. This is what takes the power load and transmits it to the rear wheels. We increase the clutch count in the Forward, Overdrive, and Overdrive Brake clutch packs which allow much higher torque capacity in each gear. Clutch material is also essential which is why we use Borg Warner and Raybestos clutches which has both high torque strength as well as longevity and reliability.

Another important aspect is the hard parts on the transmission. The factory sheet metal strut anchor is replaced with a much stronger billet strut anchor, allowing more precision application of the band. Along with the factory plastic accumulator piston is replaced with a billet unit as well. The apply lever is a 1:5.0 ratio apply arm, which applies the borg warner red lining band. This band features a performance friction material capable of holding higher power levels.

The valve body receives extensive modifications as well. We give the valve body the ability to lock the torque converter in 1st and 2nd gear, circulate transmission fluid in park/reverse/neutral, machine the TV valve passage and install our proprietary TV valve sleeve, and increase line pressure. The towing version will deliver smooth, quick, crisp shifts that enhance the drivability and operation of your transmission on the street and attached to a trailer. This is the valve body of choice for a street driven all-purpose truck.

It is a very aggressive valve body and a minimum of billet input shaft and flex plate are recommended.

• ATS billet input shaft
• ATS billet flex plate
• ATS billet intermediate shaft
• Commander lock-up controller
• New performance forward clutch pack and steels with 1 added friction
• New performance direct clutch pack and steels with 1 added friction
• New performance overdrive brake clutch pack and steels with 1 added friction
• New performance overdrive clutch pack and steels
• Low/reverse band replaced with Borg Warner Red Lining performance band
• Intermediate/2nd gear band replaced with Borg Warner Red Lining performance band
• 1:5.0 band apply lever
• Billet Band strut
• Billet accumulator piston
• Precision machined forward pressure plate (machined step)
• Precision machined lower forward pressure plate (machined flat)
• Precision machined overdrive brake pressure plate (machined flat)
• New direct pressure plate
• Performance low/reverse one-way clutch
• Machined TV valve sleeve (prevents sticking TV valve)
• Ability to achieve 1st and 2nd gear lockup
• Ability to circulate fluid to the torque converter in park/reverse/neutral
• Increase line pressure
• Improve shift quality and firmness
• Gasket and seal overhaul kit
• Bearings and bushing

Early 2004 Dodge Ram 4WD, Stage 5 Auto Trans Package. Includes:

• ATS Built 48-RE Auto Trans
• ATS 5 Star Viskus Clutch Drive Torque Converter
• ATS Extra Deep Transmission Pan
• ATS Billet Input Shaft
• ATS CoPilot Torque Converter Lock-Up Controller
• ATS Billet Flex Plate
• ATS Billet Intermediate Shaft

Application:

• 2004 2500/3500 Cummins Dodge
• Diesel
• 4WD

The ATS 309-954-2284 48RE Stage 5 Package for the 2003-2004 Cummins 5.9L 24V is the ultimate solution for enhancing the strength and reliability of your Dodge truck's transmission. Designed specifically for the 48RE transmission in the Early 2004 Dodge 4WD with T.V. Cable, this package is engineered to address the weaknesses commonly found in stock transmissions and those with minor upgrades.

At the core of the Stage 5 Package are the critical clutch packs, which have been upgraded to increase torque capacity in Forward, Overdrive, and Overdrive Brake gears. Utilizing high-quality Borg Warner and Raybestos clutches, this transmission package ensures durability and performance under heavy loads and high-horsepower applications.

The transmission's hard parts have also been reinforced with billet strut anchor, billet accumulator piston, and a precision apply lever, providing improved band application and increased power holding capabilities. The valve body receives extensive modifications to enhance shifting performance, torque converter lockup, and fluid circulation for smooth and efficient operation, whether on the road or towing heavy loads.

Included in the package are essential components such as the ATS billet input shaft, billet flex plate, billet intermediate shaft, and CoPilot Torque Converter Lock-Up Controller. The Stage 5 Package is recommended for aggressive driving, towing, and off-road applications, making it the ideal choice for Cummins-powered Dodge trucks.

Upgrade your transmission with the ATS 309-954-2284 48RE Stage 5 Package and experience superior strength, performance, and reliability for your 2003-2004 Cummins Dodge Ram 4WD. Please note that this item ships via truck freight and does not qualify for free shipping. Contact us for a shipping quote before finalizing your purchase.
