ATS 309-954-2218 47RE STG 5 PACKAGE FOR 98.5-99 DODGE RAM 4X4 WITH 5.9L CUMMINS

The 47RE transmission is the weakest point on a Dodge Cummins truck. Not only do they fail on trucks with minor upgrades, but even trucks in stock form have been known to be too powerful. A heavy duty truck needs parts which can stand up to heavy trailers, stop-and-go commutes to work, or high-horsepower applications. Thats why ATS modifies the transmission to make it the strongest and most reliable part of your drivetrain.

With the many shortcomings of the 47RE, none are more important than the clutch packs. This is what takes the power load and transmits it to the rear wheels. We increase the clutch count in the Overdrive, and Overdrive Brake clutch packs which allow much higher torque capacity in each gear. Clutch material is also essential which is why we use Borg Warner and Raybestos clutches which has both high torque strength as well as longevity and reliability.

Another important aspect is the hard parts on the transmission. The factory sheet metal strut anchor is replaced with a much stronger billet strut anchor, allowing more precision application of the band. Along with the factory plastic accumulator piston is replaced with a billet unit as well. The apply lever is a 1:3.8 ratio apply arm, which applies the borg warner red lining band. This band features a performance friction material capable of holding higher power levels.

The valve body receives extensive modifications as well. We give the valve body the ability to lock the torque converter in 1st and 2nd gear, circulate transmission fluid in park/reverse/neutral, machine the TV valve passage and install our proprietary TV valve sleeve, and increase line pressure. You can choose between a towing or a racing valve body.

The towing version will deliver smooth, quick, crisp shifts that enhance the drivability and operation of your transmission on the street and attached to a trailer. This is the valve body of choice for a street driven all-purpose truck.

The race valve body is our hardcore power build. It is made to sacrifice as little time as possible between shifts, shift hard and fast, and leave nothing behind. It is a very aggressive valve body and a minimum of billet input shaft and flex plate are recommended.

• ATS billet Input shaft
• ATS billet flex plate
• ATS billet intermediate shaft
• Commander lock-up controller
• New performance direct clutch pack and steels with 1 added friction
• New performance overdrive brake clutch pack and steels with 1 added friction
• New performance forward clutch pack and steels
• New performance overdrive clutch pack and steels
• Low/reverse band replaced with Borg Warner Red Lining performance band
• Intermediate/2nd gear band replaced with Borg Warner Red Lining performance band
• 1:3.8 band apply lever
• Billet Band strut
• Billet accumulator piston
• Precision machined forward pressure plate (machined step)
• Precision machined lower forward pressure plate (machined flat)
• Precision machined overdrive brake pressure plate (machined flat)
• New direct pressure plate
• Performance low/reverse one-way clutch
• Machined TV valve sleeve (prevents sticking TV valve)
• Ability to achieve 1st and 2nd gear lockup
• Ability to circulate fluid to the torque converter in park/reverse/neutral
• Increase line pressure
• Improve shift quality and firmness
• Gasket and seal overhaul kit
• Bearings and bushing

1998.5-Early 1999 (Build Date Before 09/1999) Dodge Ram 4WD, Stage 5 Auto Trans Package Includes:

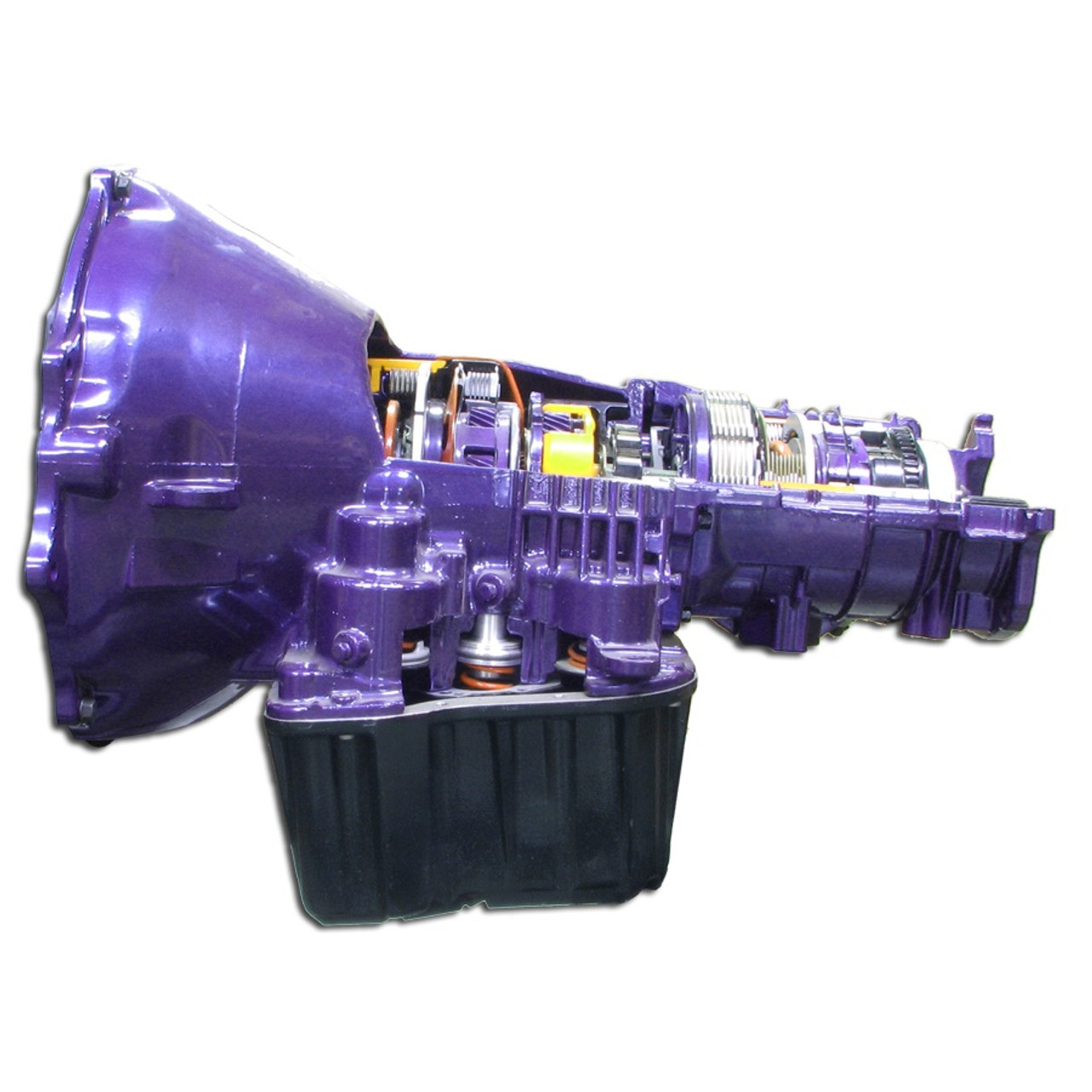

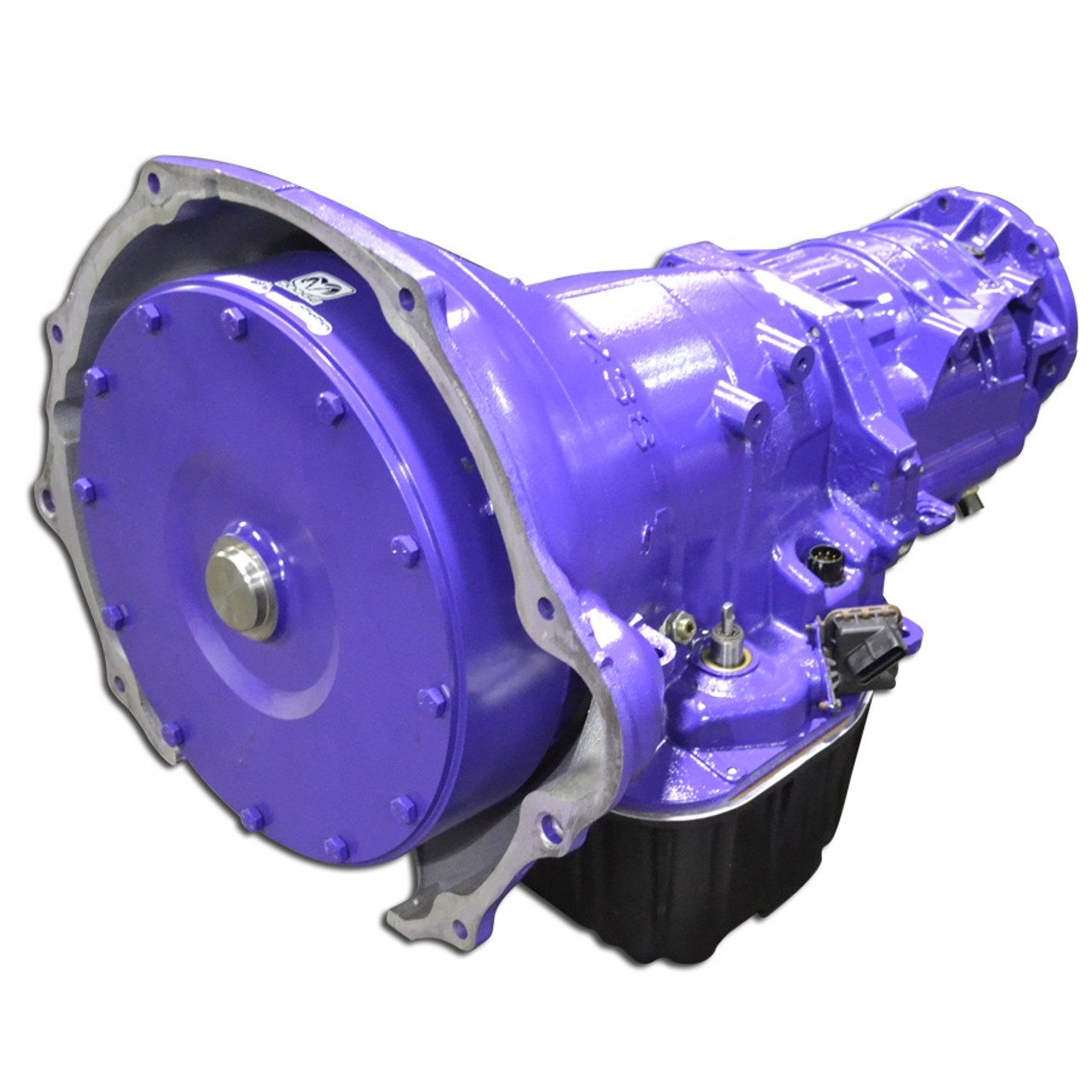

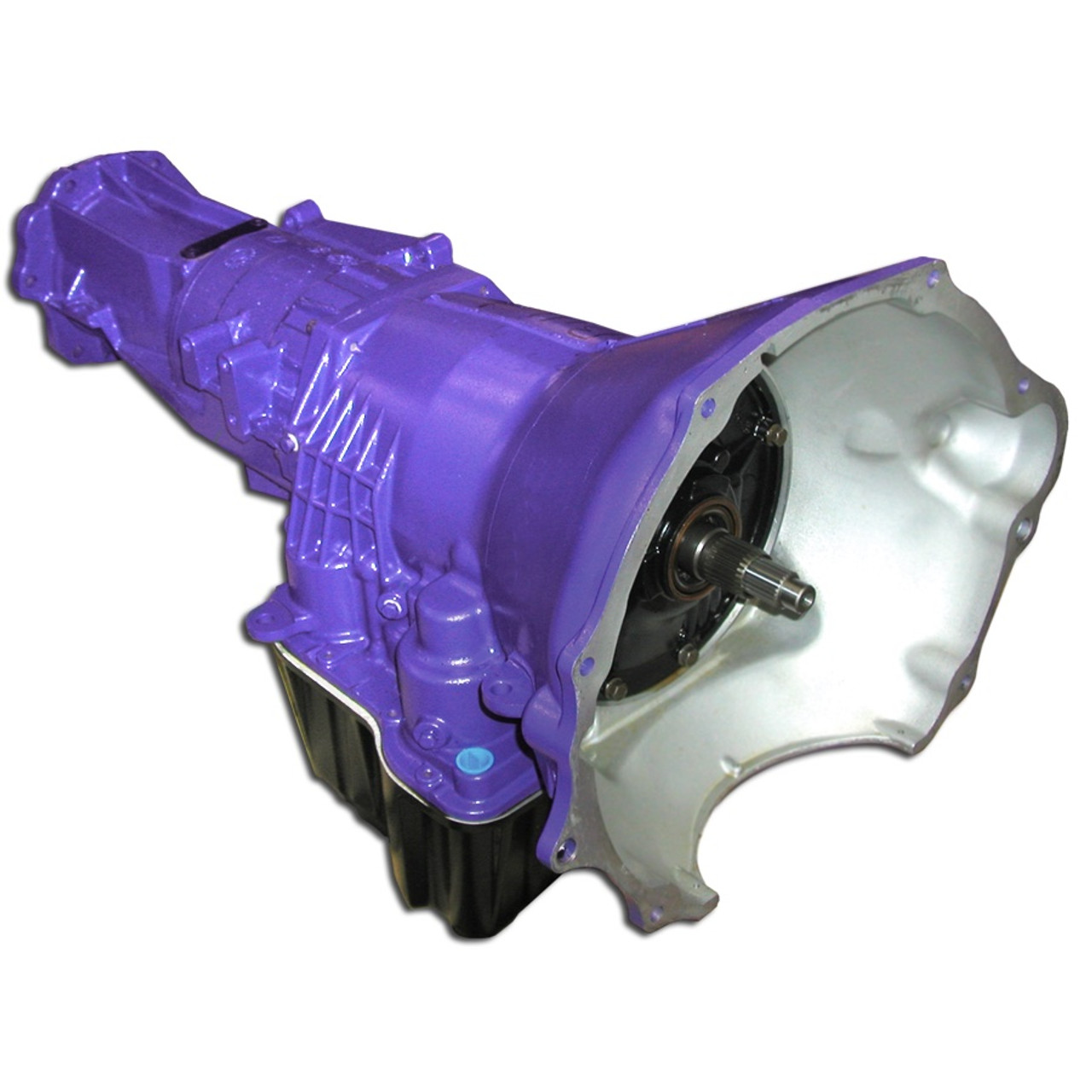

• TS Built 47-RE Auto Trans
• ATS 5 Star Viskus Clutch Drive Torque Converter
• ATS Extra Deep Transmission Pan
• ATS Billet Input Shaft
• ATS CoPilot Torque Converter Lock-Up Controller
• ATS Billet Flex Plate
• ATS Billet Intermediate Shaft

Enhance the strength and performance of your 1998.5-1999 Dodge Cummins 5.9L 24V truck with the ATS 309-954-2218 47RE Stage 5 Package 4WD. Recognizing that the 47RE transmission is often the weakest link in Dodge Cummins trucks, ATS has crafted a comprehensive transmission package that reinforces and optimizes this vital component.

One of the primary focuses of this upgrade is on the clutch packs, essential for efficiently transmitting power to the rear wheels. By increasing the clutch count in the Overdrive and Overdrive Brake packs and utilizing high-quality Borg Warner and Raybestos clutches, this package significantly enhances torque capacity and durability in each gear.

In addition to upgrading the clutch packs, the package includes essential modifications to the transmission's hard parts. The billet strut anchor and accumulator piston replace weaker factory components, while a precision apply lever and high-performance band material further bolster the transmission's ability to handle increased power levels.

Extensive modifications are also made to the valve body, allowing for features such as torque converter lockup in 1st and 2nd gear, improved fluid circulation, and increased line pressure. Customers can choose between a towing or racing valve body option, each tailored to specific driving needs and preferences.

Included in the package are top-notch components such as an ATS billet Input shaft and flex plate, new performance clutch packs, precision machined pressure plates, and a CoPilot Torque Converter Lock-Up Controller for enhanced control and efficiency.

Ideal for those seeking exceptional performance and reliability, the ATS 309-954-2218 47RE Stage 5 Package 4WD represents a significant upgrade to your Cummins truck's drivetrain. Take your truck to the next level with this comprehensive transmission package from ATS. Please note that this item ships truck freight and does not qualify for free shipping. Contact us after placing your order for a shipping quote. Prioritize power, durability, and performance with the ATS Stage 5 Package for your Dodge Cummins truck.
