ATS 309-946-2188 47RE STG 4 PACKAGE W/ SPEEDO ADAPTER FOR 96-98 DODGE RAM 2WD WITH 5.9L CUMMINS

In 1996, Dodge went from the hydraulic 47RH to the partially electronic 47RE. The 47RE features steel planets as well as an electronic governor pressure solenoid and transducer. In re-designing the 47RE, ATS addressed inherent weaknesses to produce a strong, reliable transmission for towing, daily driving or racing.
1996-Early 1998 Dodge Ram 2WD w/ 12V 5.9L Cummins Stage 4 Auto Trans Package Includes:

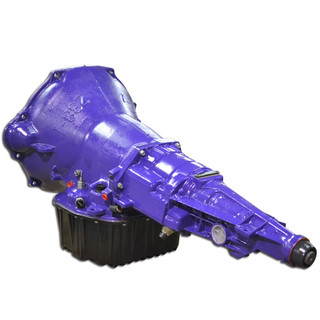

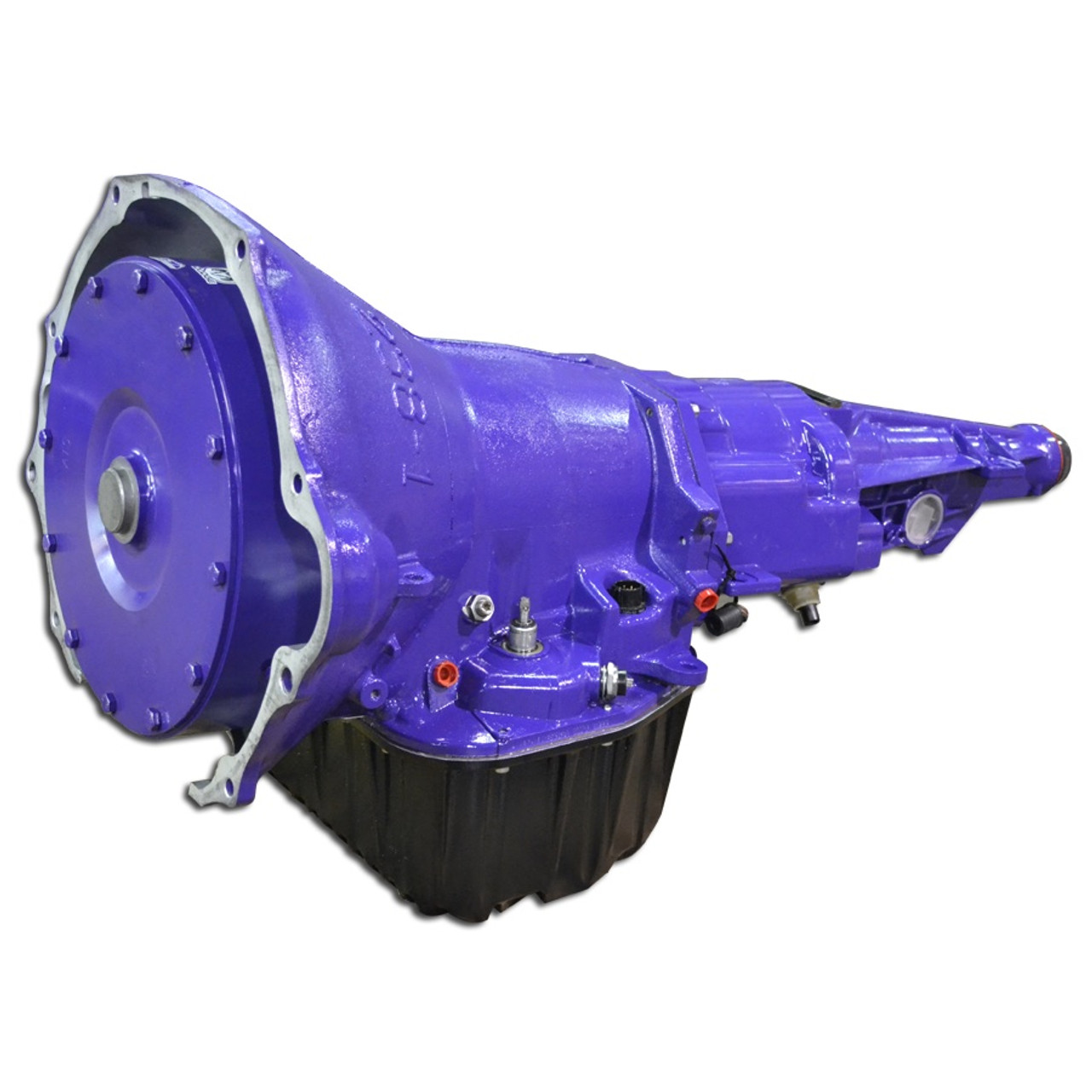

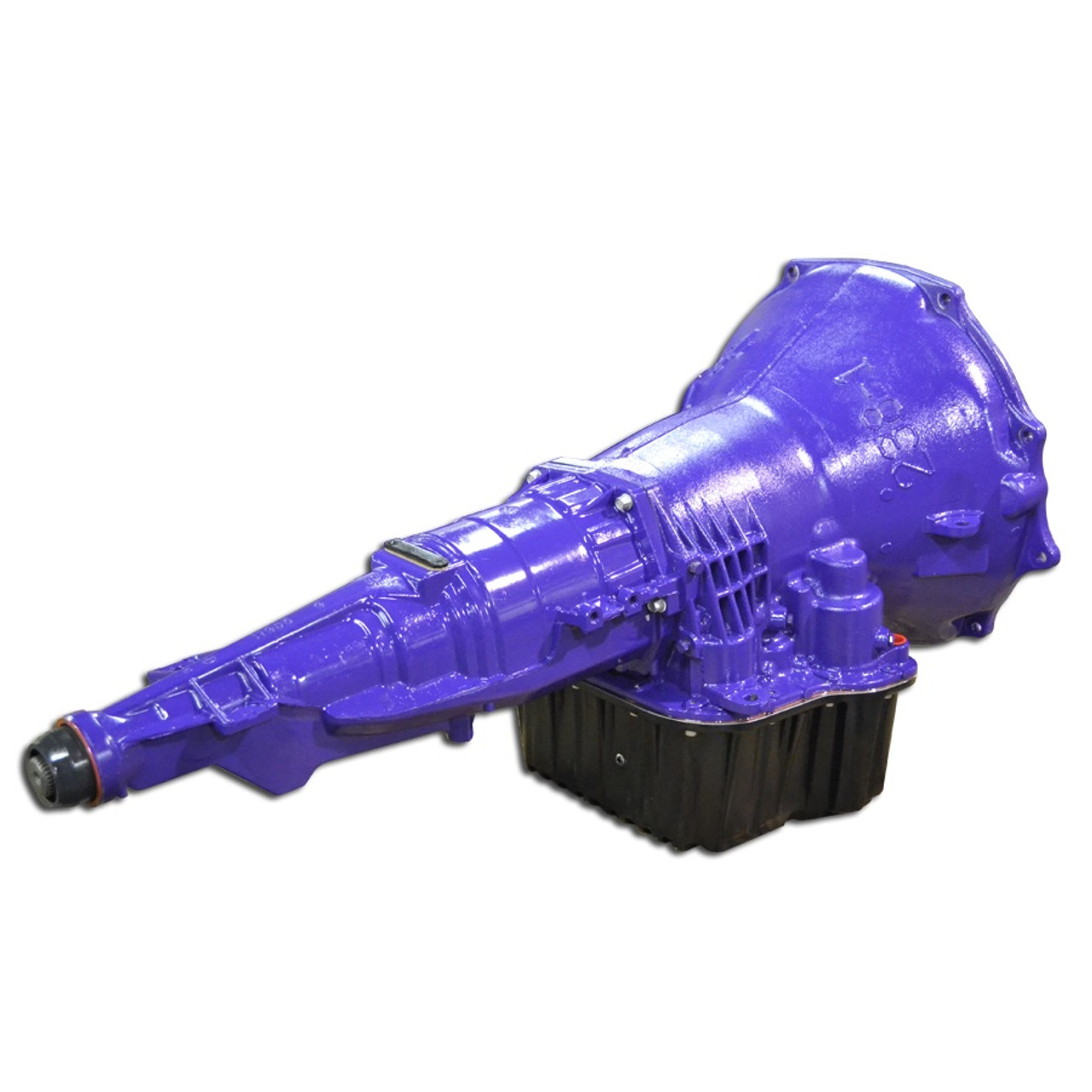

• ATS Built 47-RE Auto Trans w/ Speedo Adapter
• ATS 5 Star Viskus Clutch Drive Torque Converter
• ATS Extra Deep Transmission Pan
• ATS Billet Input Shaft
• ATS Co-Pilot Torque Converter Lock-Up Controller
• ATS Billet Flex Plate

The modification process began with the torque converter. Instead of a stamped converter with a single lock-up clutch, the ATS Stage 4 47RE comes with our patented Five-Star torque converter. Utilizing a billet 12 bolt cover, five square tab lock-up clutches, a billet stator and other modifications, this converter is designed for heavy loads, years of reliability and brute power. The goal is to efficiently transfer your 12 or 24V Cummins' power through the converter into the transmission.

In order to handle the increased efficiency of the converter, we addressed the 47RE from bellhousing to tailshaft. The transmission's pump is modified to progressive raise line pressure, above the factory settings, to provide clamping force to the clutch packs. High-performance clutch packs are then added. Pressure plates are precisely machined to add 1 more forward and 1 more direct clutch. High performance bands, billet band strut, billet accumulator piston, and heavy duty overdrive bearings strengthen the clutch pack/band assembly.

Next is the valve body. Dodge 47RE transmissions can be plagued by sticking throttle valve issues. The valve controls shift timing and fluid flow to the clutch packs. When the valve sticks, there can be a no up-shift condition. In time, this can wear on the clutch packs and internals to hasten the transmission's life. ATS machines the bore to accept a Teflon sleeve, this ensures precise movement and control of the valve. In addition, the valve body is modified to circulate fluid in park, reverse and neutral, capable of locking the torque converter in any forward gear, and raising line pressure vs. stock.

On the Stage 4 build, ATS adds a billet 300m input shaft and forward hub. Featuring a two-piece design, the input shaft is designed to withstand greater than stock power, torque converter lock-up sooner than stock, increased towing weight and racing applications. The increased capacity comes from the material itself, which is stronger than the factory input shaft. This is coupled with a precisely engineered shaft, directed at absorbing torsional loads from increased power, and transferring it into the transmission.

The Stage 4 (as well as all ATS Transmission Packages) comes standard with the ATS Deep Pan. Featuring a finned design to dissipate heat, and adding five quarts of fluid vs. stock, the pan helps keep the transmission running cool. The ATS 47RE Stage 4 is designed for trucks with stock to extreme power increases, light and heavy towing and daily driving.

In addition, we include the ATS Commander Lock-Up Controller on this package. This controller allows the user to base lock-up on vehicle speed. Torque converter lock-up can be moved to 1st, 2nd, 3rd gear or overdrive ' and can be changed at any time. Our controller features in-cab adjustability, so settings can be changed with the push of a button. Every time the vehicle reaches the set speed, the converter locks. The benefit of early lock-up is reduced transmission temperatures, quicker acceleration and better fuel economy. The ATS Commander Lock-Up Controller will also synchronize lock-up with an exhaust brake, for additional braking force.

For added strength at power levels above 450 hp, the ATS billet flex plate is included on the Stage 4. The flex plate is first hard part in the transfer of power from the motor to the torque converter/transmission. As more power over stock is added, the OEM flex plate fails to hold and eventually cracks or breaks. This means the loss of all motion in the vehicle. ATS billet flex plate features a stronger material than stock, precisely machined surface for a perfect fit, and the peace of mind needed to handle power and towing weight.
For moderate to extreme power applications, heavy towing or competition use. All ATS transmission packages come backed with a 5 year / 500,000 mile warranty.

The ATS 309-946-2188 47RE Stage 4 Package 2WD with Speedo Adapter for the 1996-1998 Cummins 5.9L 12V is a transmission upgrade designed to enhance the performance and durability of your Dodge Ram. Transitioning from the 47RH to the 47RE in 1996 marked a shift to a partially electronic transmission, and ATS has optimized the design to deliver a robust and reliable transmission suitable for towing, daily driving, or racing.

This Stage 4 Auto Trans Package includes an ATS Built 47-RE Auto Trans with Speedo Adapter, ATS 5 Star Viskus Clutch Drive Torque Converter, ATS Extra Deep Transmission Pan, ATS Billet Input Shaft, ATS Co-Pilot Torque Converter Lock-Up Controller, and ATS Billet Flex Plate. Each component has been meticulously crafted and engineered to handle the demands of heavy loads, provide years of reliability, and deliver exceptional power transfer from your Cummins engine to the transmission.

The torque converter boasts a patented Five-Star design with five square tab lock-up clutches, a billet stator, and other modifications to ensure durability and efficiency in handling increased power. The transmission itself has been reinforced with high-performance clutch packs, a modified pump for higher line pressure, and a specially machined valve body to prevent sticking issues.

With the inclusion of the ATS Commander Lock-Up Controller, you have the ability to customize lock-up settings based on vehicle speed, optimizing performance and fuel efficiency. The Stage 4 package also features a rugged billet flex plate that can withstand power levels above 450 hp, making it ideal for heavy towing, high-power applications, and competitive use.

Backed by a 5-year / 500,000-mile warranty, the ATS 47RE Stage 4 Package is a comprehensive solution for enhancing the strength, performance, and longevity of your transmission. Whether you're looking to take your truck to the next level or simply seeking a reliable upgrade for daily driving, this package delivers unparalleled quality and peace of mind. Ensure your Dodge Ram is equipped to handle the rigors of the road with the ATS Stage 4 Package.
