ATS 309-934-2272 48RE STG 3 PACKAGE FOR 03-04 DODGE RAM 4X4 WITH 5.9L CUMMINS

The 48RE transmission is the weakest point on a Dodge Cummins truck. Not only do they fail on trucks with minor upgrades, but even trucks in stock form have been known to be too powerful. A heavy duty truck needs parts which can stand up to heavy trailers, stop-and-go commutes to work, or high-horsepower applications.

Thats why ATS modifies the transmission to make it the strongest and most reliable part of your drivetrain. With the many shortcomings of the 48RE, none are more important than the clutch packs. This is what takes the power load and transmits it to the rear wheels. We increase the clutch count in the Forward, Overdrive, and Overdrive Brake clutch packs which allow much higher torque capacity in each gear. Clutch material is also essential which is why we use Borg Warner and Raybestos clutches which has both high torque strength as well as longevity and reliability. Another important aspect is the hard parts on the transmission.

The factory sheet metal strut anchor is replaced with a much stronger billet strut anchor, allowing more precision application of the band. Along with the factory plastic accumulator piston is replaced with a billet unit as well. The apply lever is a 1:5.0 ratio apply arm, which applies the borg warner red lining band.

This band features a performance friction material capable of holding higher power levels. The valve body receives extensive modifications as well. We give the valve body the ability to lock the torque converter in 1st and 2nd gear, circulate transmission fluid in park/reverse/neutral, machine the TV valve passage and install our proprietary TV valve sleeve, and increase line pressure.

The towing version will deliver smooth, quick, crisp shifts that enhance the drivability and operation of your transmission on the street and attached to a trailer. This is the valve body of choice for a street driven all-purpose truck. It is a very aggressive valve body and a minimum of billet input shaft and flex plate are recommended.

• ATS billet input shaft
• Commander lock-up controller
• New performance forward clutch pack and steels with 1 added friction
• New performance direct clutch pack and steels with 1 added friction
• New performance overdrive brake clutch pack and steels with 1 added friction
• New performance overdrive clutch pack and steels
• Low/reverse band replaced with Borg Warner Red Lining performance band
• Intermediate/2nd gear band replaced with Borg Warner Red Lining performance band
• 1:5.0 band apply lever
• Billet Band strut
• Billet accumulator piston
• Precision machined forward pressure plate (machined step)
• Precision machined lower forward pressure plate (machined flat)
• Precision machined overdrive brake pressure plate (machined flat)
• New direct pressure plate
• Performance low/reverse one-way clutch
• Machined TV valve sleeve (prevents sticking TV valve)
• Ability to achieve 1st and 2nd gear lockup
• Ability to circulate fluid to the torque converter in park/reverse/neutral
• Increase line pressure
• Improve shift quality and firmness
• Gasket and seal overhaul kit
• Bearings and bushing

2003 Dodge Ram 4WD Stage 3 Auto Trans Package.
Includes:

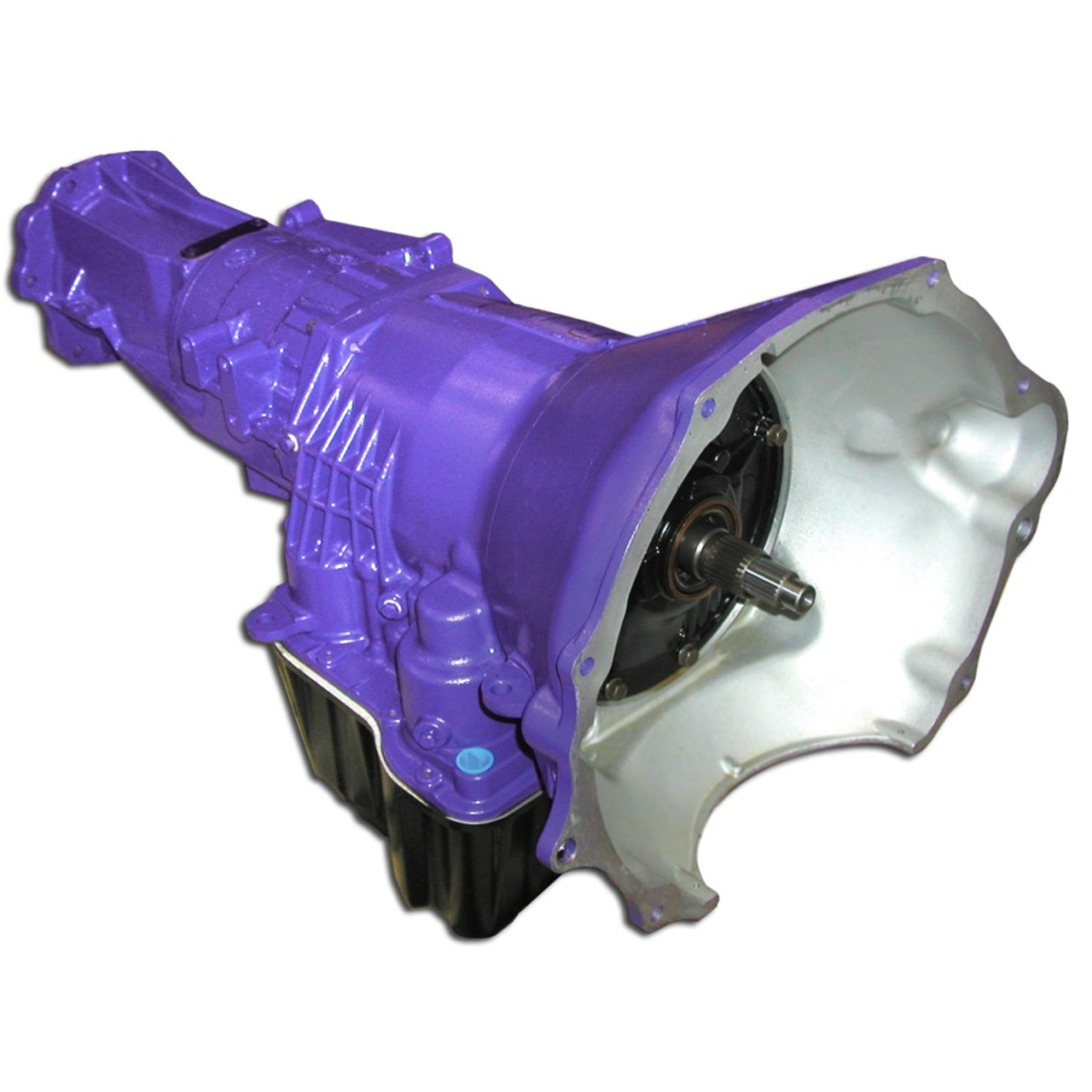

• ATS Built 48-RE Auto Trans

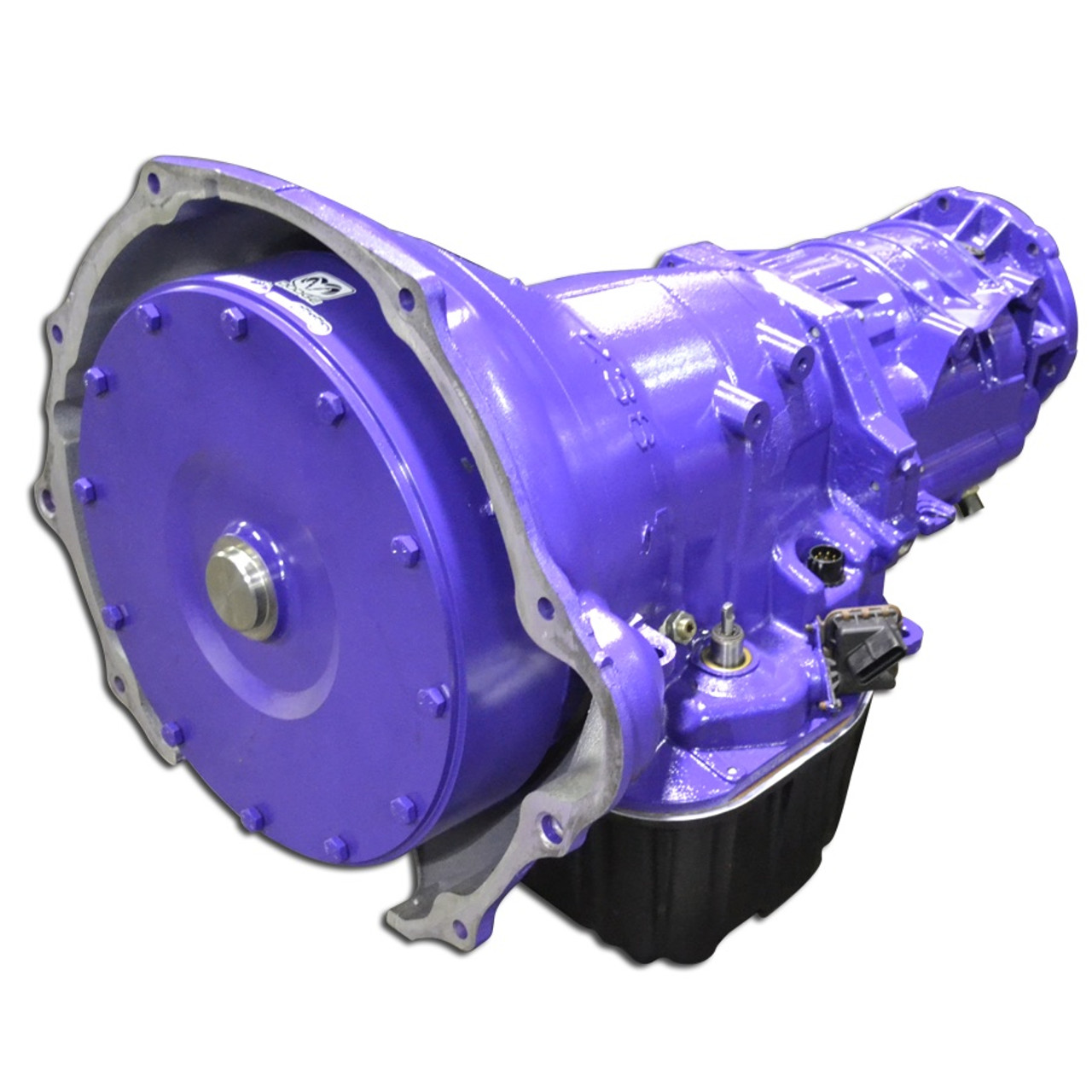

• ATS 5 Star Viskus Clutch Drive Torque Converter
• ATS Extra Deep Transmission Pan
• ATS Billet Input Shaft
• ATS CoPilot Torque Converter Lock-Up Controller

The ATS 309-934-2272 48RE Stage 3 Package for 4WD 2003-2004 Cummins 5.9L 24V is a comprehensive transmission upgrade engineered by ATS to address the inherent weaknesses of the Dodge Cummins 48RE transmission. Designed to deliver unmatched performance and durability, this Stage 3 package transforms your transmission into the strongest and most reliable component of your vehicle's drivetrain.

ATS understands the demands placed on heavy-duty trucks like the Dodge Cummins, especially when it comes to towing heavy trailers, navigating stop-and-go traffic, or unleashing high-horsepower capabilities. The key component of any transmission upgrade lies in the clutch packs, and ATS excels in this regard by increasing the clutch count in critical packs such as Forward, Overdrive, and Overdrive Brake. By enhancing the clutch material with Borg Warner and Raybestos clutches, ATS ensures high torque capacity, longevity, and reliability in every gear.

In addition to strengthening the clutch system, this package includes vital modifications to the hard parts of the transmission. Upgrades such as a billet strut anchor, billet accumulator piston, and a performance friction material band provide precise application and the ability to handle higher power levels. The valve body undergoes extensive enhancements, including the ability to lock the torque converter in specific gears, increase line pressure, and improve shift quality and firmness for smooth and crisp gear changes.

Included in this package are premium components like ATS billet input shaft, Commander lock-up controller, performance clutch packs and steels, precision machined pressure plates, and a deep transmission pan. The meticulous attention to detail in each component ensures that your transmission operates at peak performance levels on the street and for towing applications.

Transform your 2003 Dodge Ram 4WD into a powerhouse with the ATS 48RE Stage 3 Package, offering unparalleled strength, durability, and performance. Dominate the road with confidence, knowing that your transmission has been fortified by ATS’s expertise and commitment to excellence in automotive engineering.
