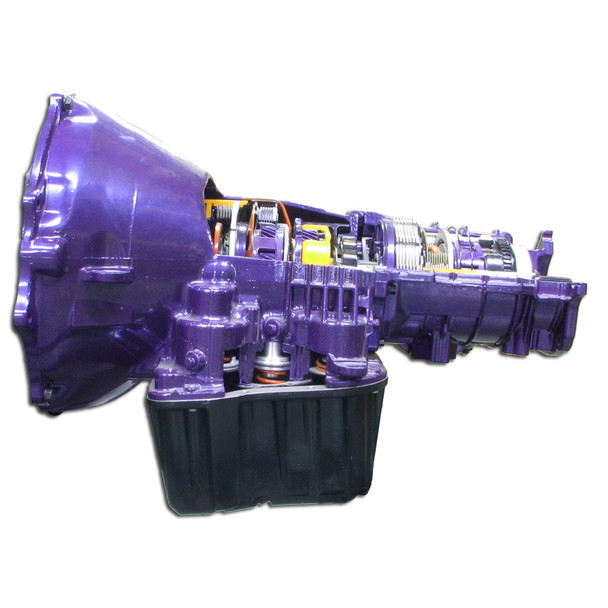

ATS 309-934-2188 47RE STG 3 PACKAGE FOR 96-98 DODGE RAM 4X4 WITH 5.9L CUMMINS

In 1996, Dodge went from the hydraulic 47RH to the partially electronic 47RE. The 47RE features steel planets as well as an electronic governor pressure solenoid and transducer. In re-designing the 47RE, ATS addressed inherent weaknesses to produce a strong, reliable transmission for towing, daily driving or racing.
47RE Stage 3 Package, 1996 - Early 1998 Dodge 4WD Transmission Features:

• Five Star billet torque converter
• Performance transmission pump
• Modified high performance clutch packs/bands and steels
• Valve body built around reliability and increased transmission life
• ATS billet 300M input shaft and forward hub
• ATS Commander Lockup Controller

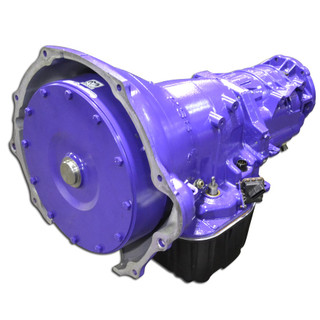

The modification process began with the torque converter. Instead of a stamped converter with a single lock-up clutch, the ATS Stage 3 47RE comes with our patented Five-Star torque converter. Utilizing a billet 12 bolt cover, five square tab lock-up clutches, a billet stator and other modifications, this converter is designed for heavy loads, years of reliability and brute power. The goal is to efficiently transfer your 12 or 24V Cummins power through the converter into the transmission.

In order to handle the increased efficiency of the converter, we addressed the 47RE from bellhousing to tailshaft. The transmission's pump is modified to progressive raise line pressure, above the factory settings, to provide clamping force to the clutch packs. High-performance clutch packs are then added. Pressure plates are precisely machined to add 1 more forward and 1 more direct clutch. High performance bands, billet band strut, billet accumulator piston, and heavy duty overdrive bearings strengthen the clutch pack/band assembly.

Next is the valve body. Dodge 47RE transmissions can be plagued by sticking throttle valve issues. The valve controls shift timing and fluid flow to the clutch packs. When the valve sticks, there can be a no up-shift condition. In time, this can wear on the clutch packs and internals to hasten the transmission's life. ATS machines the bore to accept a Teflon sleeve, this ensures precise movement and control of the valve. In addition, the valve body is modified to circulate fluid in park, reverse and neutral, capable of locking the torque converter in any forward gear, and raising line pressure vs. stock.

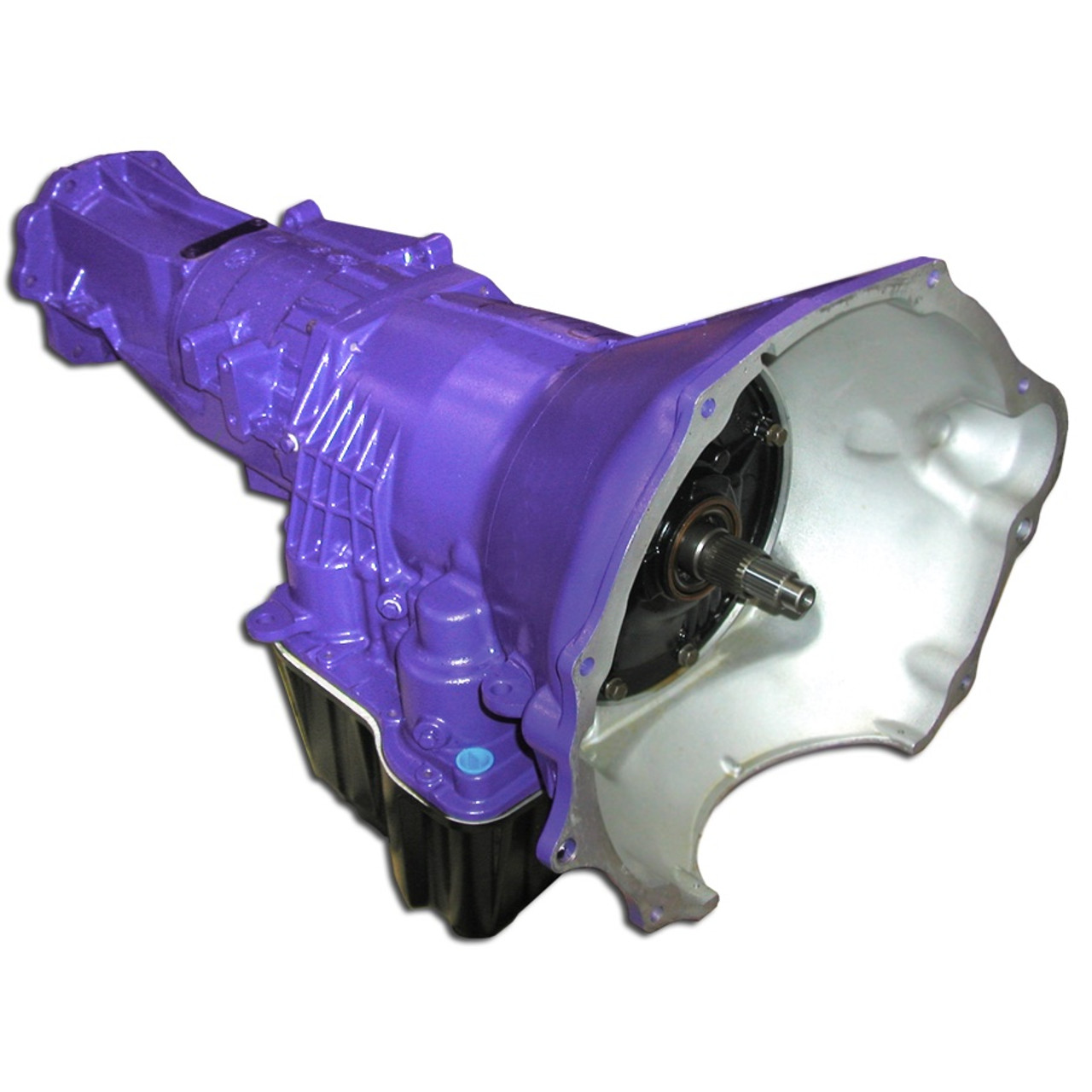

On the Stage 3 build, ATS adds a billet 300m input shaft and forward hub. Featuring a two-piece design, the input shaft is designed to withstand greater than stock power, torque converter lock-up sooner than stock, increased towing weight and racing applications. The increased capacity comes from the material itself, which is stronger than the factory input shaft. This is coupled with a precisely engineered shaft, directed at absorbing torsional loads from increased power, and transferring it into the transmission.

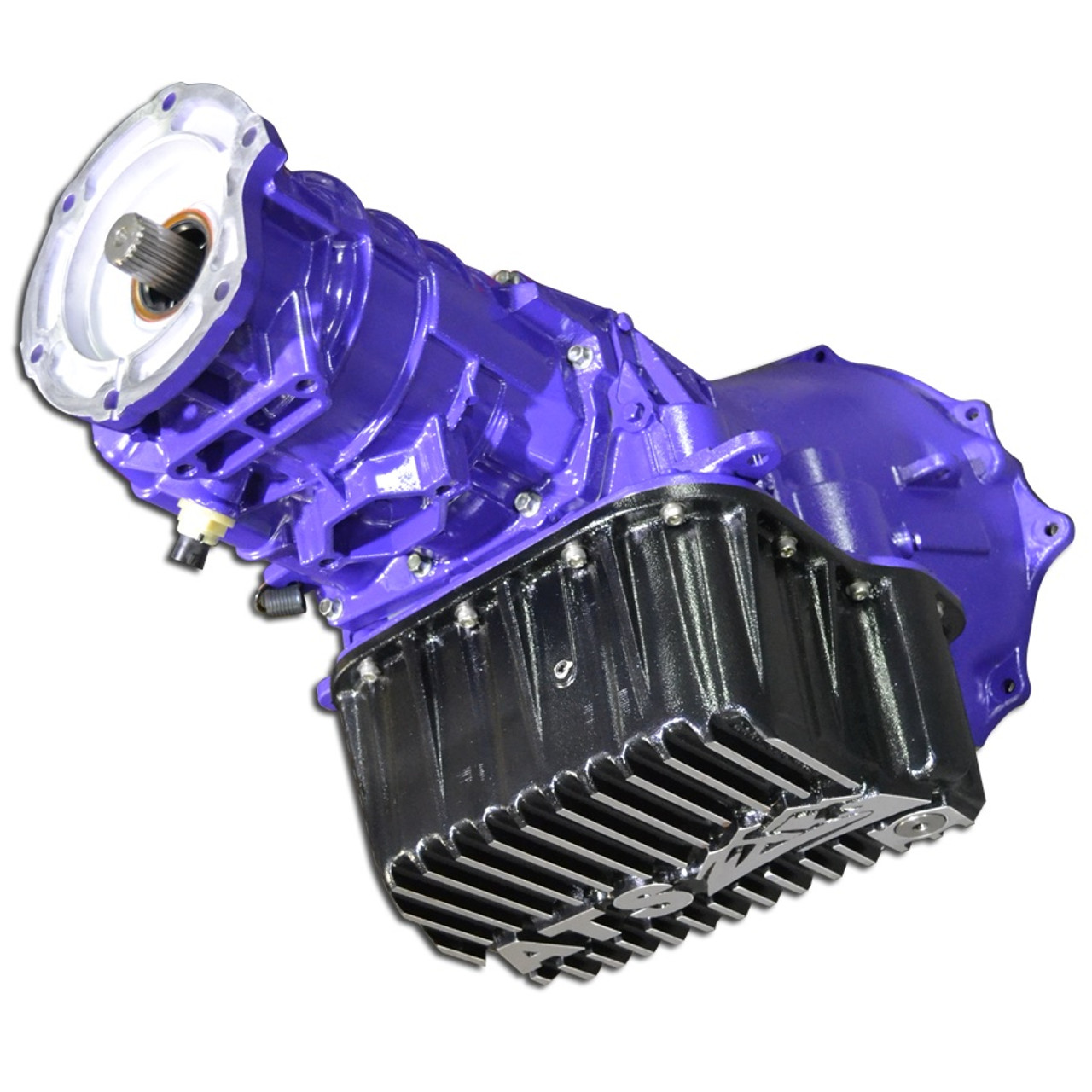

The Stage 3 (as well as all ATS Transmission Packages) comes standard with the ATS Deep Pan. Featuring a finned design to dissipate heat, and adding five quarts of fluid vs. stock, the pan helps keep the transmission running cool. The ATS 47RE Stage 3 is designed for trucks with stock to moderate power increases, light and heavy towing and daily driving.

In addition, we include the ATS Commander Lock-Up Controller on this package. This controller allows the user to base lock-up on vehicle speed. Torque converter lock-up can be moved to 1st, 2nd, 3rd gear or overdrive and can be changed at any time. Our controller features in-cab adjustability, so settings can be changed with the push of a button. Every time the vehicle reaches the set speed, the converter locks. The benefit of early lock-up is reduced transmission temperatures, quicker acceleration and better fuel economy. The ATS Commander Lock-Up Controller will also synchronize lock-up with an exhaust brake, for additional braking force.

For moderate to extreme power applications, heavy towing or competition use, call ATS to discuss which transmission package would fit your application. All ATS transmission packages come backed with a 5 year / 500,000 mile warranty.

The ATS 309-934-2188 47RE Stage 3 Package 4WD for 1996-1998 Cummins 5.9L 12V trucks is a powerhouse transmission system designed to deliver unparalleled performance and reliability. This package is tailored for Dodge trucks fitted with the 47RE transmission, featuring cutting-edge components and modifications to elevate your driving experience.

At the core of this package is the innovative Five Star billet torque converter, a game-changer that ensures efficient power transfer and enhanced durability. Unlike traditional converters, the Five Star model boasts a billet construction with five lock-up clutches, ensuring optimal performance under heavy loads and for extended periods.

The performance transmission pump, high-performance clutch packs, and bands, along with the modified valve body, work together seamlessly to increase reliability and extend the transmission's lifespan. The inclusion of the ATS billet 300M input shaft and forward hub further bolsters this system's capacity to handle increased power levels, making it ideal for towing, daily driving, or even racing.

Moreover, the package comes equipped with the ATS Commander Lockup Controller, granting you precise control over torque converter lockup based on vehicle speed. This feature not only enhances driving dynamics but also aids in reducing transmission temperatures, enhancing acceleration, and improving fuel efficiency.

With a focus on durability and efficiency, the ATS 47RE Stage 3 is suitable for trucks with stock to moderate power enhancements, as well as for light and heavy towing purposes. Every ATS transmission package, including Stage 3, is backed by a robust 5-year/500,000-mile warranty, ensuring peace of mind and long-lasting performance.

For those seeking unmatched performance capabilities, whether for heavy towing, extreme power applications, or competitive use, the ATS Stage 3 Package stands out as a top-tier choice. Contact ATS for personalized recommendations and experience the ATS difference in transmission technology. Be warned, this product may contain chemicals known to the State of California to cause cancer and reproductive harm.
