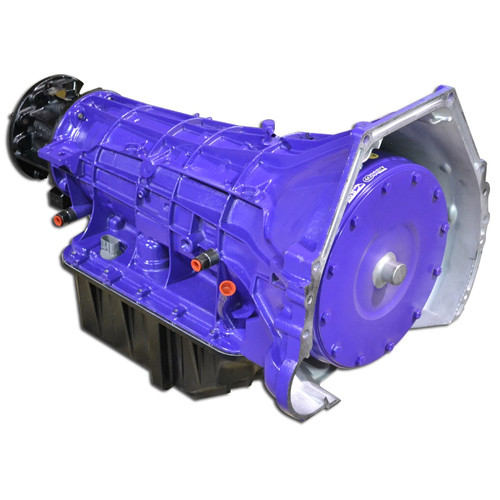

ATS 309-932-3104 E4OD STG 3 PACKAGE FOR 89-91 FORD F250/F350 2WD WITH DIESEL

The Ford E4OD transmission was designed to fit behind various powerplants including gas and diesel engines. Most failures revolve around the torque of the diesel motor, especially when power is increased over stock. The good news is that the framework of the E4OD allows for substantial increases in reliability and capability.

ATS E4ODs feature:

• ATS Five Star Torque Converter featuring a billet cover, five lock-up clutches, available in either low or high stall configurations
• ATS billet input shaft
• ATS Lock-Up Controller
• High performance overdrive, intermediate and forward clutch packs, with one additional clutch added per section
• Modified transmission pump to increase line pressure, which provides increased clamping force on the clutch packs
• Modified valve body that focuses around precise shifts, increase line pressure and increasing the torque capacity of the E4OD
• New bearings, seals and gaskets
• New low roller clutch, heavy duty intermediate sprag, bonded coast and overdrive pistons

ATS Deep Transmission Pan which adds 5 quarts of fluid over stock, which helps keep the transmission cool

The Stage 3 package includes a billet input shaft for increased reliability when towing heavy loads, under modified power levels or street performance. The billet input shaft is designed to withstand greater torsional loads than the factory shaft, thus increasing reliability. The shaft is made of billet 300M material and precisely machined for an exact fit.

In addition, we add a lock-up controller for the torque converter on the Stage 3 setup. This allows the user to base lock-up on vehicle speed in any forward gear. This provides several benefits, including increased fuel economy, lower transmission operating temperatures and more power to the ground, at a lower speed.

This feature becomes useful in towing situations and performance applications where power at low rpms is desired. For those trucks with an exhaust brake, the controller will synchronize torque converter lock-up with the brake. This will allow the converter to stay locked on deceleration to increase braking force.

The ATS Stage 3 Package is designed for trucks that are used for light/moderate/heavy towing, greater-than-stock power levels and racing/street performance. The transmission package comes with a 5 year / 500,000 mile warranty. For specific applications or uses, contact ATS to discuss learn more about which package is right for you.
Application:

• F-250/F-350/F-450 Powerstroke Ford Diesel

The ATS 309-932-3104 E4OD Stage 3 Package for 2WD 1989-1991 Ford Diesel trucks is a comprehensive transmission upgrade designed to enhance the performance, reliability, and towing capabilities of your vehicle. This package is tailored for Ford E4OD transmissions, particularly for diesel engines where torque demands are higher.

ATS has incorporated a range of top-of-the-line components to ensure superior durability and functionality in challenging conditions. The package includes the ATS Five Star Torque Converter with a billet cover and five lock-up clutches, providing enhanced torque handling and efficiency. Additionally, a billet input shaft and a lock-up controller are included to further optimize performance and reliability.

The Stage 3 package features high-performance clutch packs, a modified transmission pump for increased line pressure, and a precision-engineered valve body for improved shifting and torque capacity. Upgraded components such as new bearings, seals, and gaskets contribute to the overall robustness of the transmission.

Furthermore, the ATS Deep Transmission Pan adds extra fluid capacity to keep the transmission cool under heavy loads or during towing. The billet input shaft, made from billet 300M material, ensures exceptional strength and longevity, particularly in demanding towing scenarios.

The inclusion of a lock-up controller offers additional benefits such as enhanced fuel economy, reduced transmission temperatures, and improved power delivery at lower speeds, making it ideal for towing and performance applications. The package is backed by a 5-year / 500,000-mile warranty, reflecting ATS's confidence in the quality and durability of their product.

Overall, the ATS Stage 3 Package is a premium choice for Ford diesel truck owners looking to elevate their vehicle's performance and towing capabilities. Contact ATS for more information on selecting the right package for your specific needs. Please be aware of the California warning regarding Cancer and Reproductive Harm associated with this product.
