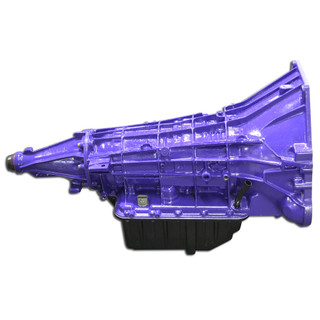

ATS 309-922-3176 E4OD STG 2 PACKAGE FOR 95-98 FORD SUPERDUTY 2WD WITH 7.3L POWERSTROKE

The Ford E4OD transmission was designed to fit behind various powerplants ? including gas and diesel engines. Most failures revolve around the torque of the diesel motor, especially when power is increased over stock. The good news is that the framework of the E4OD allows for substantial increases in reliability and capability.

The Stage 2 package adds a billet input shaft for increased reliability when towing heavy loads, under modified power levels or street performance. The billet input shaft is designed to withstand greater torsional loads than the factory shaft, thus increasing reliability. The shaft is made of billet 300M material and precisely machined for an exact fit.

The ATS Stage 2 Package is designed for trucks that are used for light/moderate/heavy towing, greater-than-stock power levels and street performance. The transmission package comes with a 5 year/500,000 mile warranty.

Features:

• E4OD Stage 2 Package 1989-1991 Ford 2WD
• ATS Five Star Torque Converter featuring a billet cover, five lock-up clutches, available in either low or high stall configurations
• ATS billet input shaft
• High performance overdrive, intermediate and forward clutch packs, with one additional clutch added per section
• Modified transmission pump to increase line pressure, which provides increased clamping force on the clutch packs
• Modified valve body that focuses around precise shifts, increase line pressure and increasing the torque capacity of the E4OD
• New bearings, seals and gaskets
• New low roller clutch, heavy duty intermediate sprag, bonded coast and overdrive pistons

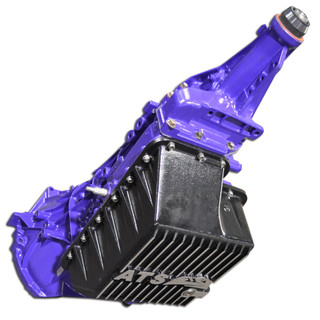

• ATS Deep Transmission Pan which adds 5 quarts of fluid over stock, which helps keep the transmission cool
• Engine Manufacturer: Powerstroke
• Make: Ford
• Models: F-250/F-350/F-450
• Fuel Type: Diesel
• Transmission Model: E4OD
• Warranty: 5 year/500,000 mile warranty
• Sold As: Kit

Designed specifically to meet the demands of 1995-1998 Ford Powerstroke 7.3L trucks, the ATS 309-922-3176 E4OD Stage 2 Package for 2WD vehicles offers a comprehensive solution for enhancing the performance and reliability of your transmission system.

The core of this package is the billet input shaft, a critical component engineered to handle the increased torque demands often associated with towing heavy loads or elevated power levels. Crafted from durable billet 300M material, this upgraded shaft provides superior strength and durability compared to the factory counterpart, ensuring a robust and dependable transmission performance.

Ideal for trucks utilized in a range of settings, from light to heavy towing to enhanced street performance, the Stage 2 Package includes an ATS Five Star Torque Converter, boasting a billet cover and five lock-up clutches available in low or high stall configurations. This setup guarantees smooth and efficient power transfer, even under demanding conditions.

In addition to the billet input shaft and torque converter, this comprehensive transmission package features upgraded clutch packs, a modified pump to enhance line pressure, and a precision-engineered valve body. These enhancements work together to improve shift quality, increase torque capacity, and ensure reliable operation under diverse driving conditions.

Backed by a generous 5-year/500,000-mile warranty, the ATS 309-922-3176 E4OD Stage 2 Package is tailored to optimize the performance of your Ford Powerstroke truck, offering peace of mind and exceptional value for your transmission upgrade needs. Enhance your truck's capabilities and reliability with this premium transmission kit, designed to deliver unparalleled performance and durability while safeguarding against common failure points.
