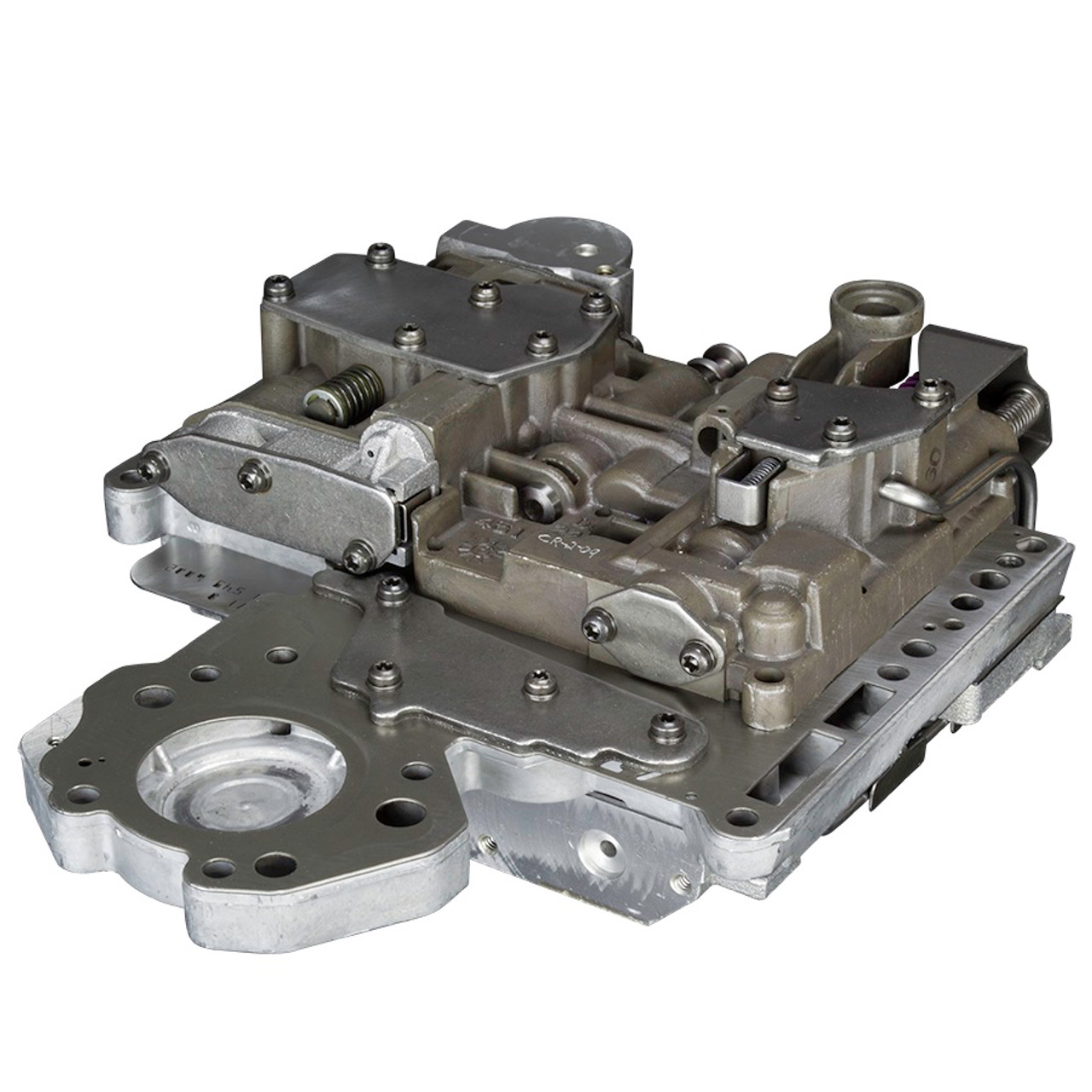

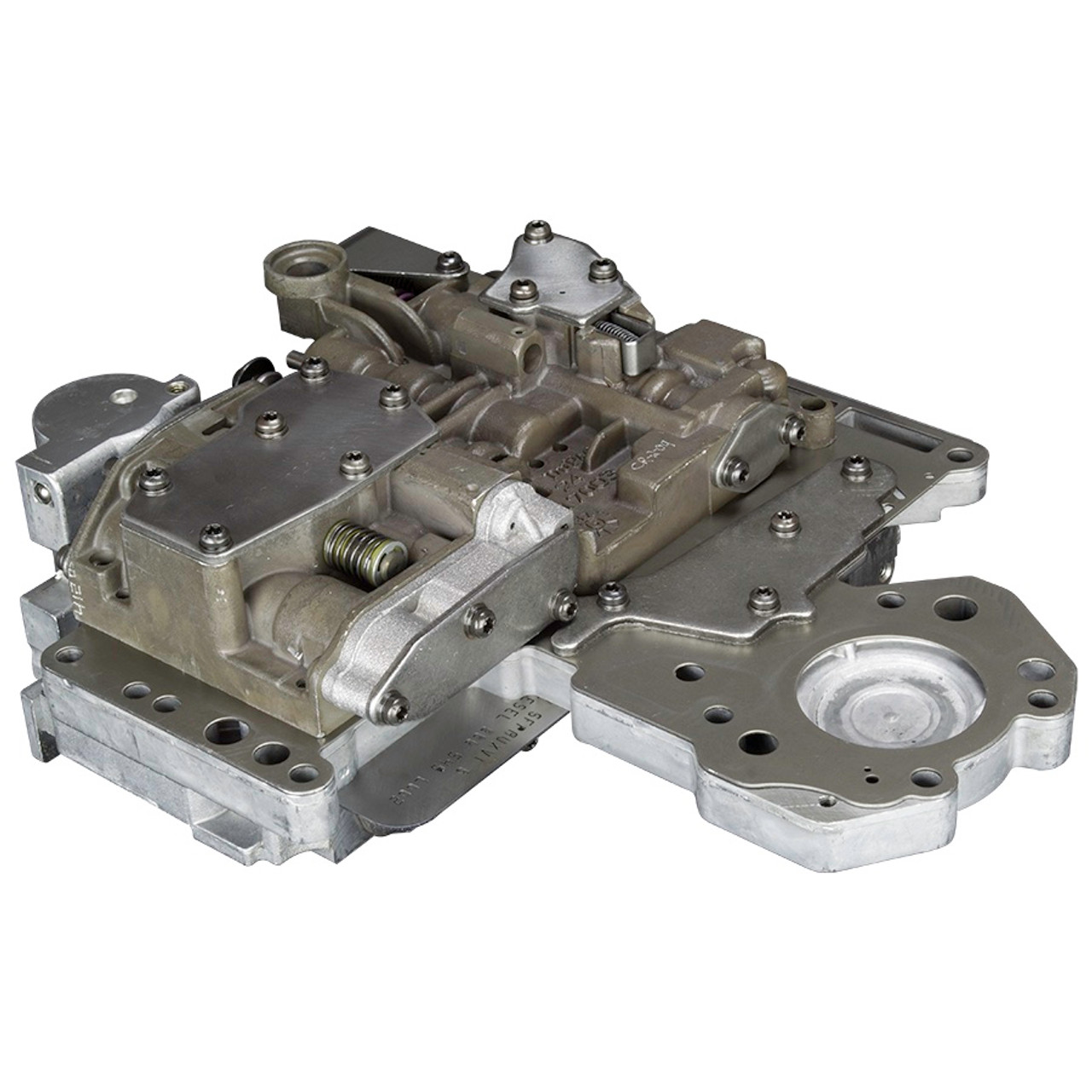

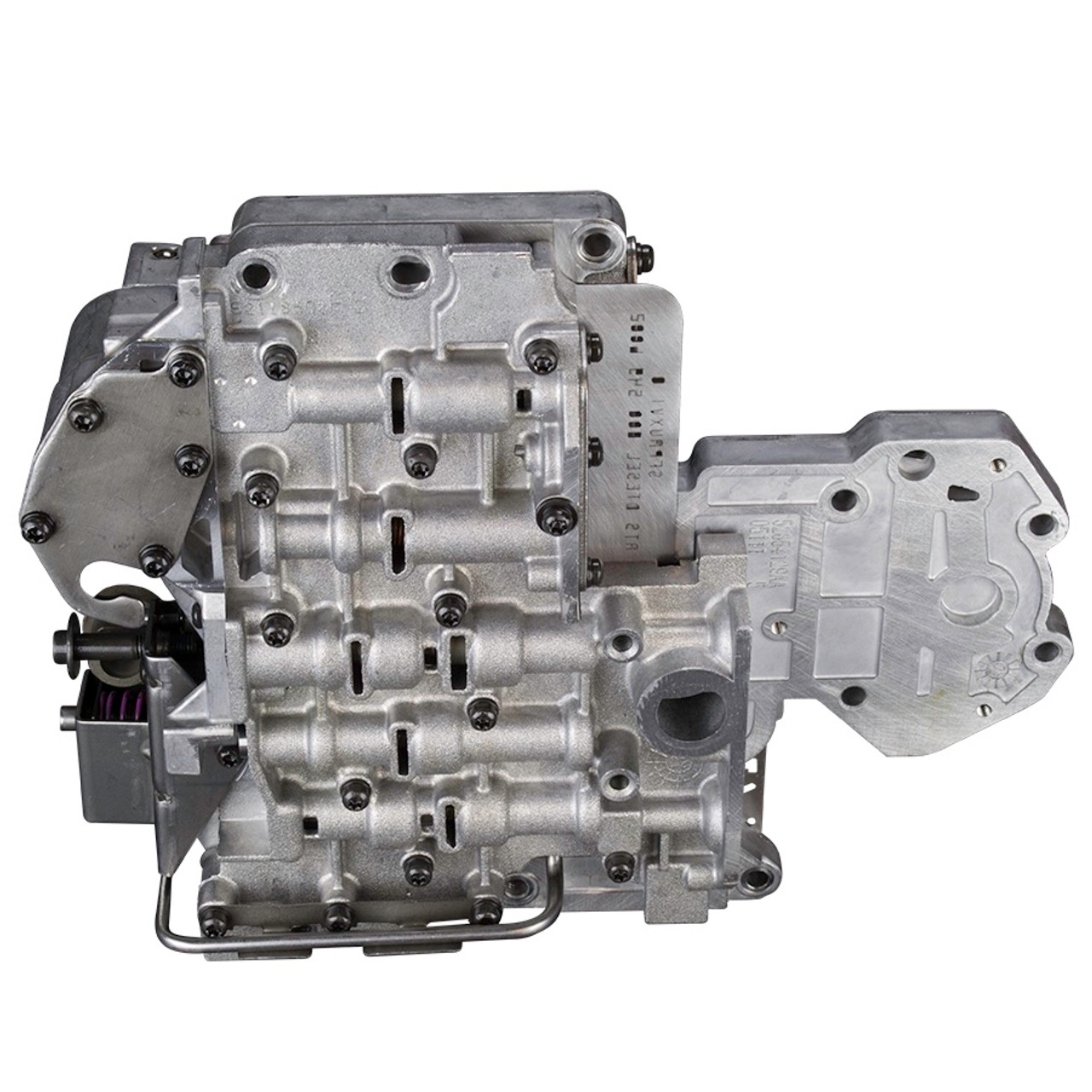

ATS 303-902-2272 48RE TOWING VALVE BODY FOR 03-04 DODGE RAM WITH 5.9L CUMMINS

The throttle Valves (TV Valve) in a transmission's valve body control shift timing between gears through the constriction of hydraulic fluid. The TV valve also controls the line pressure required to clamp the clutch pack and band inside the transmission. Until now these valves have been known to have issues sticking inside the bore in the valve body, or wearing out due to friction, which causes malfunction and improper shifts.

Despite all of the changes made in the past to the material from which the valve is made, the bore itself in the valve will wear and prevent proper movement of the valve. Especially in the Dodge automatic Transmission, Dodge manufactures the stock valve body from a very cheap mystery material that is very soft and prone to wearing out.

ATS has designed an innovative solution in our Dodge Ram transmissions using a unique Hydro-balanced Valve and Sleeve. By altering both the shape and material of the valve itself, as well as placing a hardened sleeve in the valve body's bore the sticking issues are prevented. The valves in the ATS Valve Body perform extremely smoothly and operate as intended after extended use.

Utilizing this new design valve and sleeve assembly allows the hydraulic flow to be altered providing a more aggressive line pressure slope while providing quality shifts and Torque converter clutch engagement. When using the stock TV valve or oversized TV valves increased line pressure caused hard and abrupt shifts. The concept used by ATS is similar to that of a piston sleeve in an engine.

By using high quality, hardened material, the lifespan of the moving component is greatly increased and the issue of a worn bore is eliminated. This technique further raises the functionality and quality level of the ATS Valve Body and Transmission system to an even higher level and is used in our Towing, Racing, and Stand-Alone-Programmable Valve Bodies.

Features:

• Valve Body Towing Edition 2003-2004 Dodge 48RE with TV Cable
• Protrietary design modifications
• Improved shift characteristics
• Increased reliability
• Optimized for use with exhaust brake
• Engine Manufacturer: Cummins
• Make: Dodge Diesel
• Models: 2500/3500
• Fuel Type: Diesel
• Transmission Type: Automatic
• Sold As: Kit

The ATS 303-902-2272 48RE TOWING VALVE BODY for the 2003-2004 Cummins 5.9L 24V engine is a revolutionary solution that enhances the performance and reliability of your Dodge Ram transmission. Known for its throttle Valves (TV Valve), this valve body addresses common issues such as sticking and premature wear that can lead to malfunctioning and improper shifts.

Traditional valve bodies often suffer from problems due to the soft and cheap materials they are made from. However, ATS has introduced an innovative Hydro-balanced Valve and Sleeve design that offers superior quality and longevity. By redesigning the valve shape and material, and incorporating a hardened sleeve, ATS ensures smooth operation and prolonged durability even after extended use.

The unique design of the ATS Valve Body enhances hydraulic flow, resulting in more aggressive line pressure slope, improved shift quality, and enhanced Torque converter clutch engagement. Unlike stock or oversized TV valves that may cause hard and abrupt shifts, the ATS Valve Body delivers precise and consistent performance for towing, racing, and standalone programmable applications.

Notable features of the ATS 303-902-2272 48RE TOWING VALVE BODY include proprietary design modifications, optimized shift characteristics, increased reliability, compatibility with exhaust brakes, and suitability for use with the Dodge Diesel 2500/3500 models. This kit is specially designed to meet the demands of diesel enthusiasts looking to maximize the performance of their transmission systems.

Enhance your driving experience with the ATS 303-902-2272 48RE TOWING VALVE BODY and enjoy smoother shifts, increased efficiency, and superior durability. Upgrade your Dodge Ram transmission system with this cutting-edge valve body for unparalleled performance on the road and off. Remember to heed the California warning for Cancer and Reproductive Harm associated with this product.
