Product Description

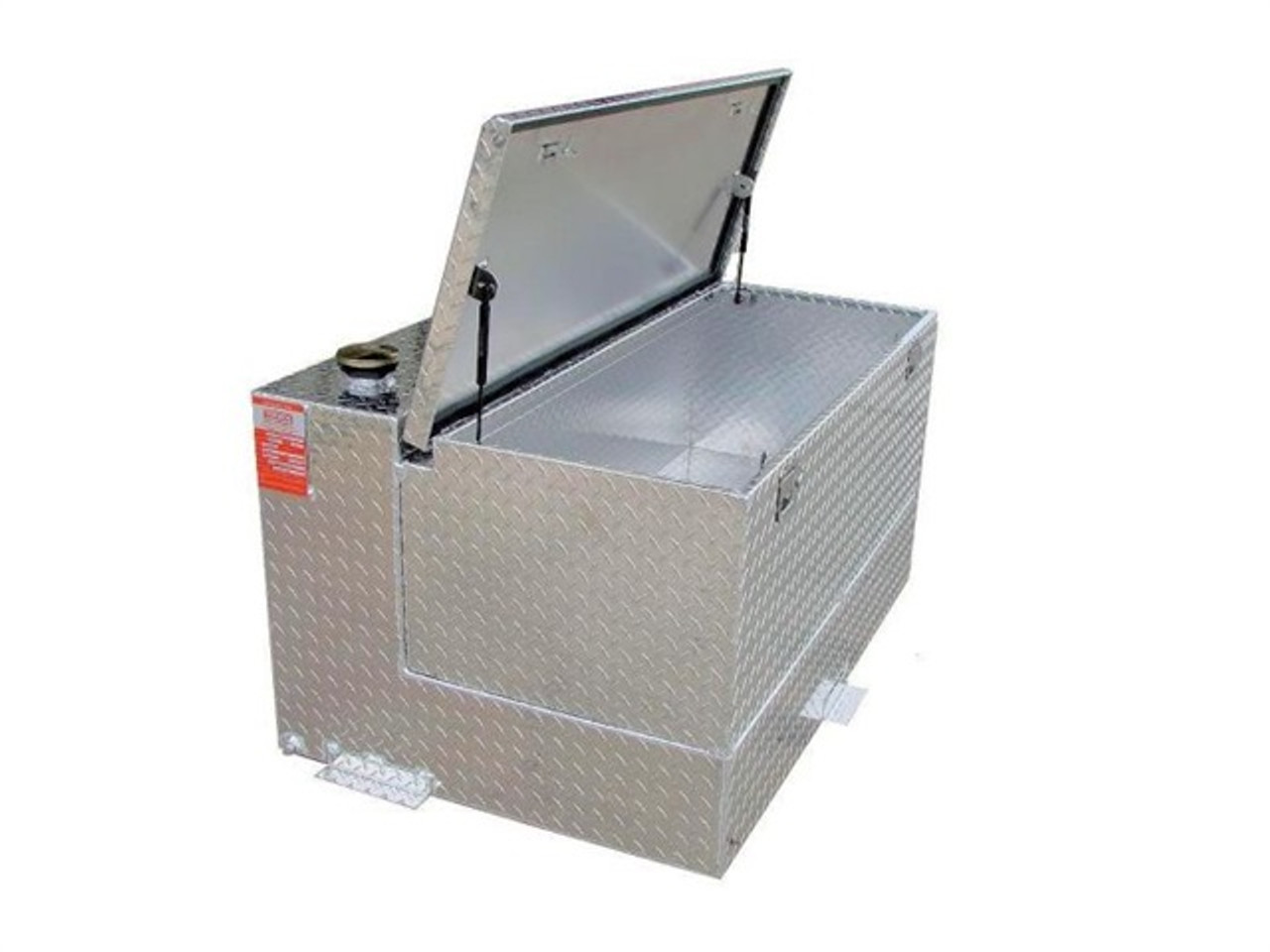

ATI TTR58CB9 combines a DOT-authorized 58-gallon refueling tank with a low-profile 9" high crossover toolbox for secure tool storage and on-the-go fueling. Built from heavy .125" diamond-plate aluminum, it’s fully baffled, pressure/leak-tested, and legal for gasoline, diesel, kerosene, methanol, and aviation fuel when used per ATI guidance.
Key Features
- 58-gallon capacity with DOT special-permit refueling compliance.
- Integrated crossover toolbox (9" high) to save bed space.
- .125" aluminum construction, fully baffled interior.
- Two 2" NPT reinforced bungs; vented filler cap (lockable cap optional).
- Includes mounting/hold-down tabs; pressure & leak tested.
Fitment
Universal pickup bed fit for most full-size trucks. Verify bed width, rail height, and toolbox lid clearance before ordering.
Dimensions & Capacity
- Capacity: 58 gallons
- Tank (overall): 58" L x 21" W x 22" H
- Notched bottom length: 51" (for wheel-well clearance)
- Toolbox: 42" L x 19" W x 9" H
- Note: Mounting tabs may add ~1.5" to overall width per side; account for this when measuring.
What’s Included
- ATI TTR58CB9 58-gal refueling tank with integrated 9" toolbox
- Mounting/hold-down tabs
Pumps/hoses sold separately. Add a 12V transfer pump and a vented lockable cap for a complete setup.
Compliance
Manufactured in the USA under a U.S. DOT special permit authorizing refueling from the tank when properly installed and used per instructions.
Installation Notes
- Bolt through welded tabs with appropriate hardware into the truck bed per ATI instructions.
- Confirm toolbox lid and bed rail clearances using dimensions above.
FAQ
- Is this combo DOT-approved for gasoline as well as diesel?
- Yes. Under ATI’s special permit, it’s authorized for gasoline, diesel, kerosene, methanol, and aviation fuel when used as directed.
- What are the exact tank and toolbox dimensions?
- Tank is 58" L x 21" W x 22" H with a 51" notched bottom; toolbox is 42" L x 19" W x 9" H. Mounting tabs may add ~1.5" per side.
- Does the combo include a pump?
- No. The tank includes a vented cap and mounting tabs. Add a compatible 12V transfer pump and hose kit as needed.
- Will it fit my full-size pickup with a tonneau or bed cover?
- It fits many full-size beds; measure your available length/width/height and any cover framework to ensure clearance for the 22" tank height and toolbox lid operation.
- Is the tank baffled?
- Yes—fully baffled to reduce fuel slosh and increase structural rigidity.
