ATI FUEL TANKS TTR110S 110 GALLON RECTANGLE SHAPED SPLIT REFUELING TANK 55/55

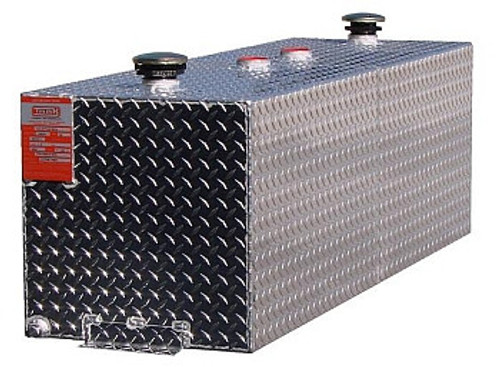

ATI TTR110S is a DOT special-permit, 110-gallon split rectangle aluminum refueling tank (55 gal each side) designed to haul and legally refuel two different liquids from your truck bed. Built from .125" diamond-plate aluminum, it’s fully baffled, pressure/leak-tested, and ready for hard use on the farm, jobsite, or track support.

Key Features

• 110-gallon total capacity split 55/55 for dual liquids; legal refueling under U.S. DOT special permit when installed/used per guidance.
• Rectangle footprint maximizes bed space; works in most full-size pickups (verify bed clearances).
• .125" aluminum construction with fully baffled interior for stability.
• Two 2" NPT reinforced bungs—place cap or pump on preferred side.
• Standard vented filler cap; lockable vented cap available.
• Includes hold-down brackets/tabs; clean interior; pressure & leak tested.
• Approved (per permit) for gasoline, diesel, kerosene, methanol, and aviation fuel.

Fitment

Universal pickup bed fit for most full-size trucks. Designed to bolt through welded tabs to the bed. Always verify toolboxes/bed accessories and pump placement before ordering.

Dimensions & Capacity

• Total Capacity: 110 gallons (split 55/55)
• Overall (L × W × H): ~48.5" × 24" × 24"
• Notes: Mounting tabs may add ~1.5" per side; fuel cap adds ~2.5" to total height—account for this when measuring.

What’s Included

• ATI TTR110S split rectangle aluminum refueling tank (55/55)
• Mounting/hold-down tabs

Pumps/hoses sold separately. Add a 12V transfer pump and a vented lockable cap to complete your setup.

Compliance

Manufactured in the USA and built under a U.S. DOT Special Permit authorizing refueling from the tank when properly installed and used.

Installation Notes

• Bolt through welded tabs with appropriate hardware per ATI instructions.
• Plan cap/pump orientation using the two 2" NPT bungs.
• Verify clearance for any bed covers or toolboxes and include cap height in measurements.

FAQ

Can I legally refuel gasoline and diesel from this tank?

Yes. Under ATI’s DOT special permit, the tank is authorized for gasoline, diesel, kerosene, methanol, and aviation fuel. Always follow local regulations and ATI’s instructions.

Does the TTR110S include a transfer pump?

No. The tank includes mounting tabs and a standard vented cap. Add a compatible 12V transfer pump and hoses as needed.

How big is the tank and will it fit my truck?

The tank is approximately 48.5" (L) × 24" (W) × 24" (H). It’s a universal rectangle footprint for full-size truck beds. Measure your bed and consider the added height of the cap (~2.5").

Is the interior baffled to reduce slosh?

Yes. The tank is fully baffled for stability and durability.

Why two 2" NPT bungs?

They let you place the fill cap or the pump on your preferred side and support accessories securely.
