Product Description

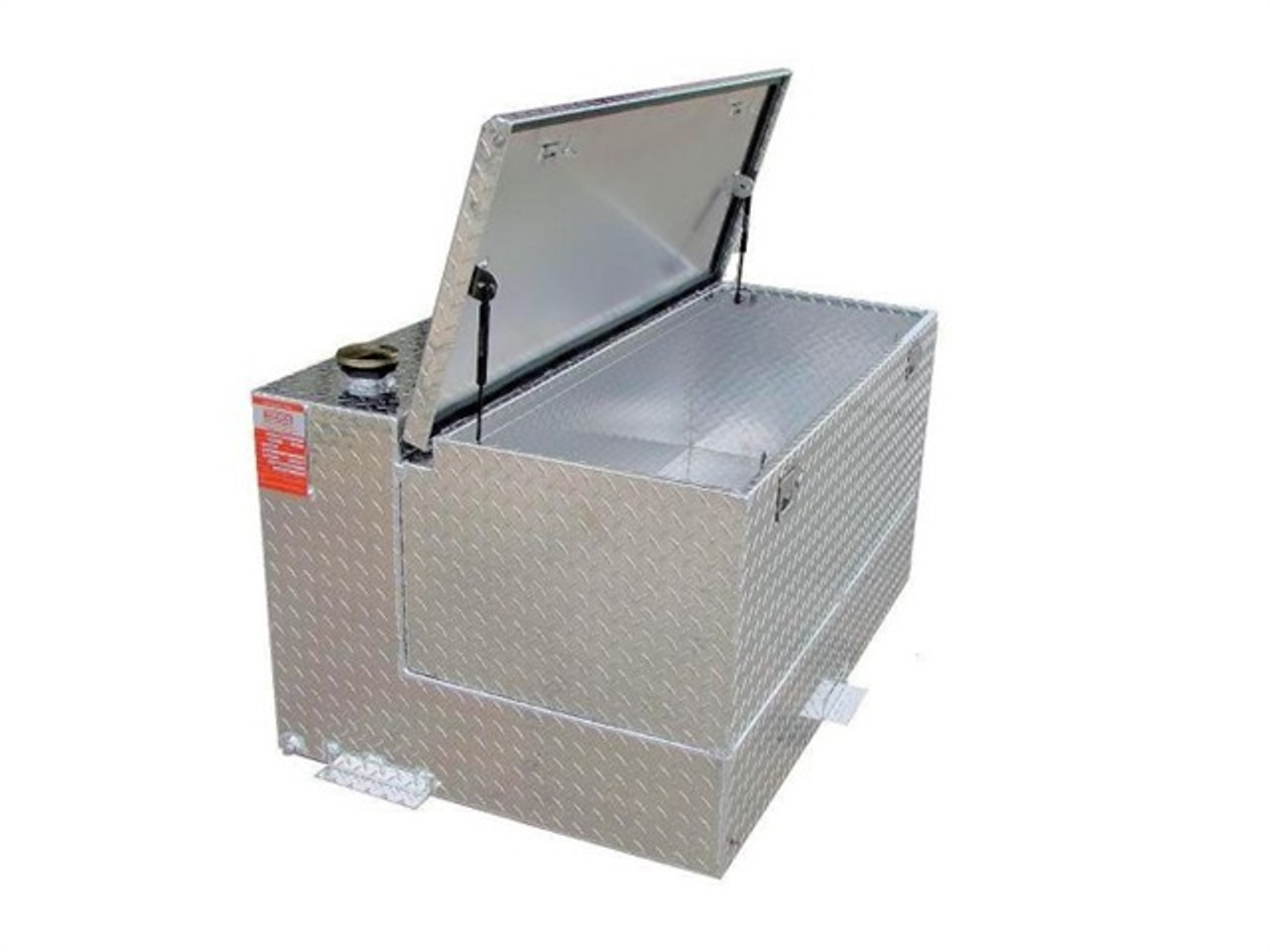

ATI TTL95CB combines a DOT special-permit 95-gallon L-shaped refueling tank with a full-size locking toolbox. Built from .125" diamond-plate aluminum, it’s fully baffled, pressure/leak-tested, and designed for legal refueling when installed and used per ATI guidance.
Key Features
- 95-gallon capacity; built under a U.S. DOT special permit for legal refueling from the tank.
- L-shape tank packaged with a matching crossover-style toolbox for bed storage + on-the-go fueling.
- .125" aluminum construction; fully welded internal baffles for stability.
- Two 2" NPT reinforced bungs, 3/8" NPT drain, vented filler cap (lockable cap available).
- Includes mounting/hold-down tabs; clean interior; pressure & leak tested.
- Approved for gasoline, diesel, kerosene, methanol, and aviation fuel (per permit).
Fitment
Universal pickup bed fit for most full-size trucks. The L-section nests at the front of the bed; verify toolbox and rail clearances. Mounting tabs extend ~1.5" per side; account for cap height when measuring.
Dimensions & Capacity
- Capacity: 95 gallons
- Tank overall (B × C × A): 48.5" (W) × 33" (L) × 26" (H)
- Toolbox size: 48" (L) × 22" (W) × 17" (H)
- Notes: Mounting tabs extend ~1.5" each side; fuel cap adds ~2.5" to height—plan for clearance.
What’s Included
- ATI TTL95CB L-shaped 95-gal refueling tank
- 48" × 22" × 17" locking aluminum toolbox
- Mounting/hold-down tabs
Pumps/hoses sold separately. Add a 12V transfer pump kit and a vented lockable cap for a complete setup.
Compliance
Manufactured in the USA and built under a U.S. DOT special permit authorizing refueling from the tank when properly installed and used.
Installation Notes
- Bolt through welded tabs with appropriate hardware into the truck bed per ATI instructions.
- Verify toolbox lid clearance and total height with cap installed.
FAQ
- Is the TTL95CB DOT approved for gasoline as well as diesel?
- Yes. Under ATI’s DOT special permit, the TTL95CB is authorized for gasoline, diesel, kerosene, methanol, and aviation fuel. Always follow local regulations and ATI usage guidance.
- Does this combo include a pump?
- No. The tank/box combo includes the tank, toolbox, and mounting tabs with a standard vented cap. Add a compatible 12V transfer pump/hoses as needed.
- What exact dimensions should I plan around?
- Plan for ~48.5" (W) × 33" (L) × 26" (H) on the tank and a 48" × 22" × 17" toolbox. Allow extra for the mounting tabs (~1.5" each side) and cap height (~2.5").
- Will this fit with my crossover toolbox?
- Yes—this model includes the matched toolbox. If replacing an existing box, compare sizes and lid clearance to ensure a clean fit.
- Is the interior baffled?
- Yes. The tank is fully baffled to reduce fuel movement and improve stability.
