Product Description

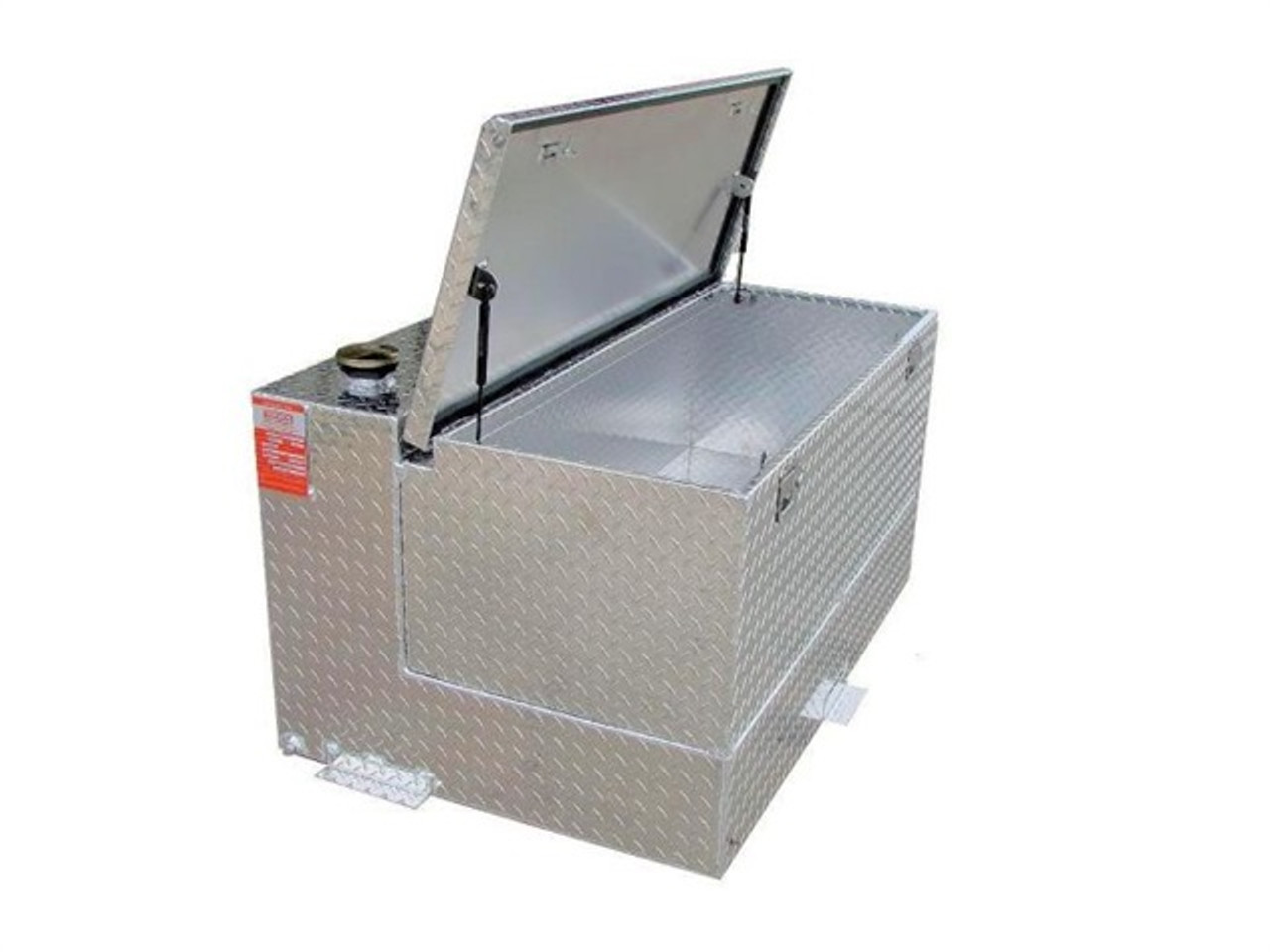

ATI TTL50CB combines a DOT special-permit 47-gallon L-shaped refueling tank with a crossover toolbox so you can carry fuel and secure your gear without giving up bed space. Built from .125" diamond-plate aluminum, it’s fully baffled, pressure/leak-tested, and ready for legal refueling when installed and used per ATI guidance.
Key Features
- 47-gallon capacity; built under a U.S. DOT special permit for legal refueling from the tank.
- L-shape profile designed to work with the included crossover toolbox.
- .125" aluminum construction; fully baffled interior for stability.
- Vented filler cap; lockable vented cap available.
- Includes hold-down/mounting tabs; clean interior; pressure & leak tested.
- Approved for gasoline, diesel, kerosene, methanol, and aviation fuel (per permit).
Fitment
Universal pickup bed fit for most full-size truck beds. Verify bed/toolbox clearances before ordering.
Dimensions & Capacity
- Capacity: 47 gallons
- Tank overall (approx.): 36.25" L x 30" W x 19" H
- Toolbox (approx.): 36" L x 19" W x 9" H
- Notes: Mounting tabs extend out about ~1.5" and the fuel cap can add ~2.5" to total height—account for this when measuring.
What’s Included
- ATI TTL50CB 47-gallon L-shaped refueling tank
- Matched crossover toolbox
- Mounting/hold-down tabs
Pumps/hoses sold separately. Add a 12V transfer pump and a vented lockable cap for a complete setup.
Compliance
Manufactured in the USA and built under a U.S. DOT special permit allowing refueling from the tank when properly installed and used.
Installation Notes
- Bolt through welded tabs with appropriate hardware into the truck bed per ATI instructions.
- Confirm toolbox lid clearance and total height with the cap installed.
- Two 2" NPT bungs give flexibility for cap/pump placement.
FAQ
- Is the TTL50CB DOT-approved for gasoline as well as diesel?
- Yes. Under ATI’s DOT special permit, the TTL50CB is authorized for gasoline, diesel, kerosene, methanol, and aviation fuel. Always follow local regulations and ATI’s usage guidance.
- Does this combo include a transfer pump?
- No. The tank/box ship with mounting hardware and a standard vented cap. Add a compatible 12V transfer pump and hose kit as needed.
- What dimensions should I plan around?
- Plan for ~36.25" (L) x 30" (W) x 19" (H) for the tank, plus a 36" x 19" x 9" crossover toolbox. Tabs add ~1.5" and the cap adds ~2.5" to height.
- Is the interior baffled?
- Yes. It is fully baffled to reduce fuel slosh and improve stability.
Specifications for Aluminum Tanks Industries TTL50CB
| Specification | Details |
|---|---|
| Manufacturer | Aluminum Tanks Industries (ATI) |
| Part Number | TTL50CB |
| SKU | ATITTL50CB |
| Capacity | 47 Gallons |
| Tank Material | .125" Diamond Plate Aluminum |
| Toolbox Material | Aluminum Diamond Plate |
| Construction | Fully baffled tank, pressure tested, leak tested |
| Dimensions | Approx. 60" L x 20" W x 19" H |
| Design | Rectangle tank with integrated crossover toolbox |
| Bungs | Dual 2" NPT Reinforced Bungs |
| Drain | 3/8" NPT Drain |
| Cap | Vented locking filler cap |
| Toolbox Features | Lockable lid, weather-resistant seal, storage compartment |
| Fuel Compatibility | Gasoline, diesel, kerosene, methanol, aviation fuel |
| Mounting | Designed for pickup bed rail mounting |
| Shipping Info | Calculated at checkout |
| UPC | N/A |
| GTIN | N/A |
| Prop 65 | Yes – May expose to chemicals including Carbon Black (California Warning) |
