Product Description

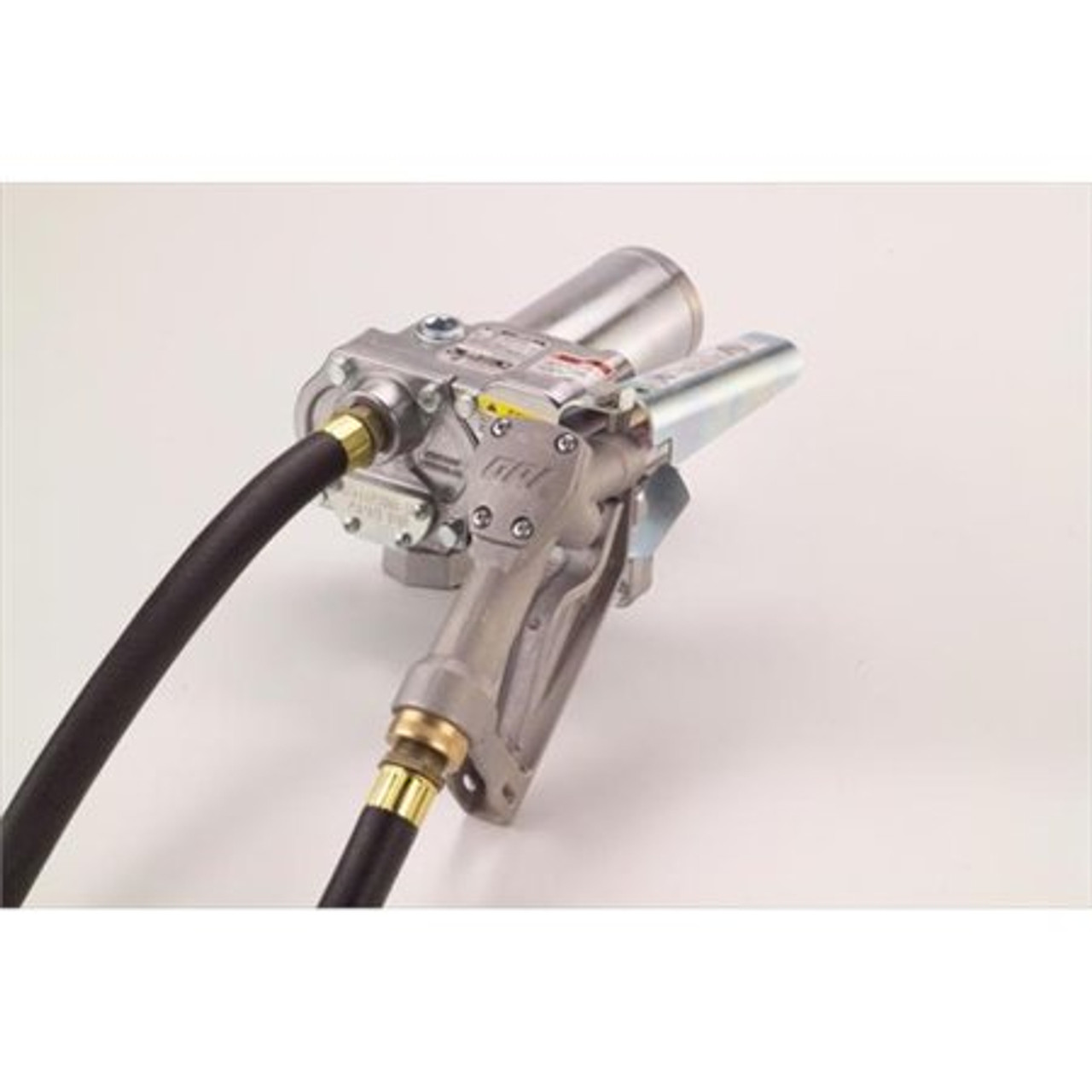

ATI BS-M150S-MU pairs ATI’s trusted packaging with the proven GPI M-150S-MU 12V DC rotary gear pump. It delivers up to 15 GPM and includes a manual unleaded nozzle, 12 ft x 3/4" grounded hose, telescoping suction pipe, and an 18 ft 12/2 AWG power cord—everything you need to outfit your ATI refueling tank for fast, reliable dispensing.
Key Features
- Up to 15 GPM flow rate (57 LPM) with spin collar for easy install.
- 12V DC motor, rotary gear design; 30 min ON / 30 min OFF duty cycle.
- Manual unleaded nozzle and 12 ft x 3/4" grounded dispensing hose.
- Telescoping suction pipe (approx. 15–40").
- 18 ft (12/2 AWG) factory-installed power cord with fuse.
- UL/cUL Listed motor and CSA certified.
- Compatible with gasoline, diesel, and kerosene (see manual for details).
What’s Included
- GPI M-150S-MU pump with spin collar
- 3/4" manual nozzle
- 12 ft x 3/4" grounded fuel hose
- Telescoping suction pipe
- Power cord (approx. 18 ft, 12/2 AWG) & fuse/hardware
Fitment
Universal to most ATI refueling tanks with standard 2" NPT pump mounting. Verify electrical and mounting location. Suitable for field refueling of trucks, equipment, and machinery.
Specifications
- Model: GPI M-150S-MU (ATI BS-M150S-MU / GPI 110000-99)
- Voltage: 12V DC (approx. 18 A draw)
- Flow Rate: up to 15 GPM
- Duty Cycle: 30 min ON / 30 min OFF
- Approvals: UL/cUL motor, CSA
- Hose: 12 ft x 3/4" grounded
- Nozzle: 3/4" manual unleaded
- Power Cord: 18 ft (12/2 AWG)
- Pump Dimensions (approx.): 19" L x 16" W x 9" H; Weight: ~24 lb
Installation Notes
- Mount using the spin collar to a 2" NPT tank port; ensure proper sealing and bonding/grounding.
- Use dedicated fused 12V DC power per GPI manual; observe duty cycle.
- Filter recommended for dirty fuel environments.
FAQ
- Does this kit include the hose and nozzle?
- Yes. It includes a 12 ft x 3/4" grounded hose and a 3/4" manual unleaded nozzle.
- What fuels can I pump?
- Gasoline, diesel, and kerosene (see the owner’s manual for blend limits and safety guidance).
- Is the pump motor approved for hazardous locations?
- The motor is UL/cUL listed and the unit is CSA certified; always follow the manual and local codes.
- What is the duty cycle?
- 30 minutes ON, 30 minutes OFF. Exceeding this may shorten pump life.
- Will this mount to my ATI refueling tank?
- Yes—designed for standard 2" NPT pump ports common on ATI refueling tanks. Check clearance for hose routing and nozzle stowage.
Specifications for Aluminum Tanks Industries BS-M150S-MU
| Specification | Details |
|---|---|
| Manufacturer | Aluminum Tanks Industries (ATI) |
| Part Number | BS-M150S-MU |
| Pump Brand | GPI (Great Plains Industries) |
| Pump Model | GPI M-150S |
| Flow Rate | 15 GPM (Gallons Per Minute) |
| Voltage | 12 Volt DC |
| Duty Cycle | 30 Minutes On / 30 Minutes Off |
| Fuel Type | Diesel, Biodiesel (up to B20), Kerosene |
| Nozzle Type | Manual Fuel Nozzle Included |
| Hose Length | 12 Feet Fuel Hose Included |
| Inlet/Outlet Size | 1 Inch NPT |
| Mounting | Tank Mount / Bung Mount Compatible |
| Power Leads | Battery Clamps Included |
| Strainer | Inlet Strainer Included |
| Shipping Info | Standard Ground Shipping |
| UPC | N/A |
| GTIN | N/A |
| Prop 65 | Yes – May expose to chemicals including lead (California Warning) |
