Product Description

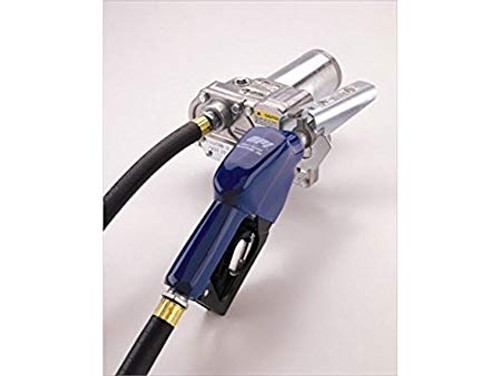

ATI BS-M150S-AU is a complete GPI M-150S-AU 12V fuel transfer pump kit delivering up to 15 GPM. It includes an automatic shut-off unleaded nozzle, 12 ft x 3/4" grounded dispensing hose, 18 ft (12/2 AWG) power cord, and an adjustable telescoping suction pipe—everything you need to refuel from your ATI refueling tank quickly and safely.
Key Features
- Rotary gear design, lightweight cast aluminum body; UL listed motor and CSA certified assembly.
- Automatic shut-off nozzle with lockable holder; convenient spin-collar for easy tank-bung installation.
- For gasoline (to E15), diesel (to B20), and kerosene.
- Circuit-breaker motor protection; 2-year pump warranty (GPI).
Fitment
Designed for permanent mounting on vented refueling/transfer tanks with a standard bung. Commonly paired with ATI refueling tanks; check your tank’s bung size and electrical routing before install.
Dimensions & Specs
- Flow Rate: Up to 15 GPM (57 LPM)
- Voltage / Motor: 12V DC, ~1/5 HP, rotary gear; duty cycle 30 min on / 30 min off
- Nozzle: Automatic unleaded
- Hose: 12 ft x 3/4" grounded dispensing hose
- Power Cord: 18 ft, 12/2 AWG (factory installed)
- Suction Pipe: Telescoping, fits 15"–40" tank depths
- Inlet / Outlet: 1" inlet / 3/4" outlet (FNPT)
- Overall Dimensions (approx.): 19" (L) x 16" (W) x 9" (H); Weight: ~24–28 lb
- Approvals: UL motor listing; CSA certified flammable liquid dispenser
FAQ
- Does this kit include the nozzle and hose?
- Yes. It ships with an automatic shut-off nozzle and a 12 ft x 3/4" grounded dispensing hose, plus an 18 ft power cord and telescoping suction pipe.
- What fuels can I pump?
- Gasoline up to E15, diesel up to B20, and kerosene. Always follow local codes and safe dispensing practices.
- Will it work with my ATI refueling tank?
- Yes—this kit is commonly paired with ATI refueling tanks. Ensure your tank is vented and has a compatible bung; verify electrical routing and mounting clearances.
- What’s the duty cycle?
- 30 minutes on / 30 minutes off in typical use to protect the motor and maintain longevity.
- Is it UL/CSA approved?
- Yes. The motor is UL listed and the assembly carries CSA certification for flammable liquid dispensing.
Specifications for Aluminum Tanks Industries BS-M150S-AU
| Specification | Details |
|---|---|
| Manufacturer | Aluminum Tanks Industries (ATI) |
| Part Number | BS-M150S-AU |
| SKU | ATIBSM150SAU |
| Pump Type | GPI 12V Fuel Transfer Pump |
| Flow Rate | 15 Gallons Per Minute (GPM) |
| Voltage | 12 Volt DC |
| Nozzle Type | Automatic Shut-Off Nozzle Included |
| Hose Length | 12 Foot Fuel Hose Included |
| Inlet/Outlet | Standard Fuel Transfer Connections |
| Fuel Compatibility | Gasoline, Diesel, Kerosene |
| Mounting | Tank Mount Ready |
| Power Leads | Battery Cable Leads Included |
| Duty Cycle | Intermittent Duty |
| Shipping Info | Standard Ground Shipping |
| UPC | N/A |
| GTIN | N/A |
| Prop 65 | Yes – May expose to chemicals including lead (California Warning) |
