Product Description

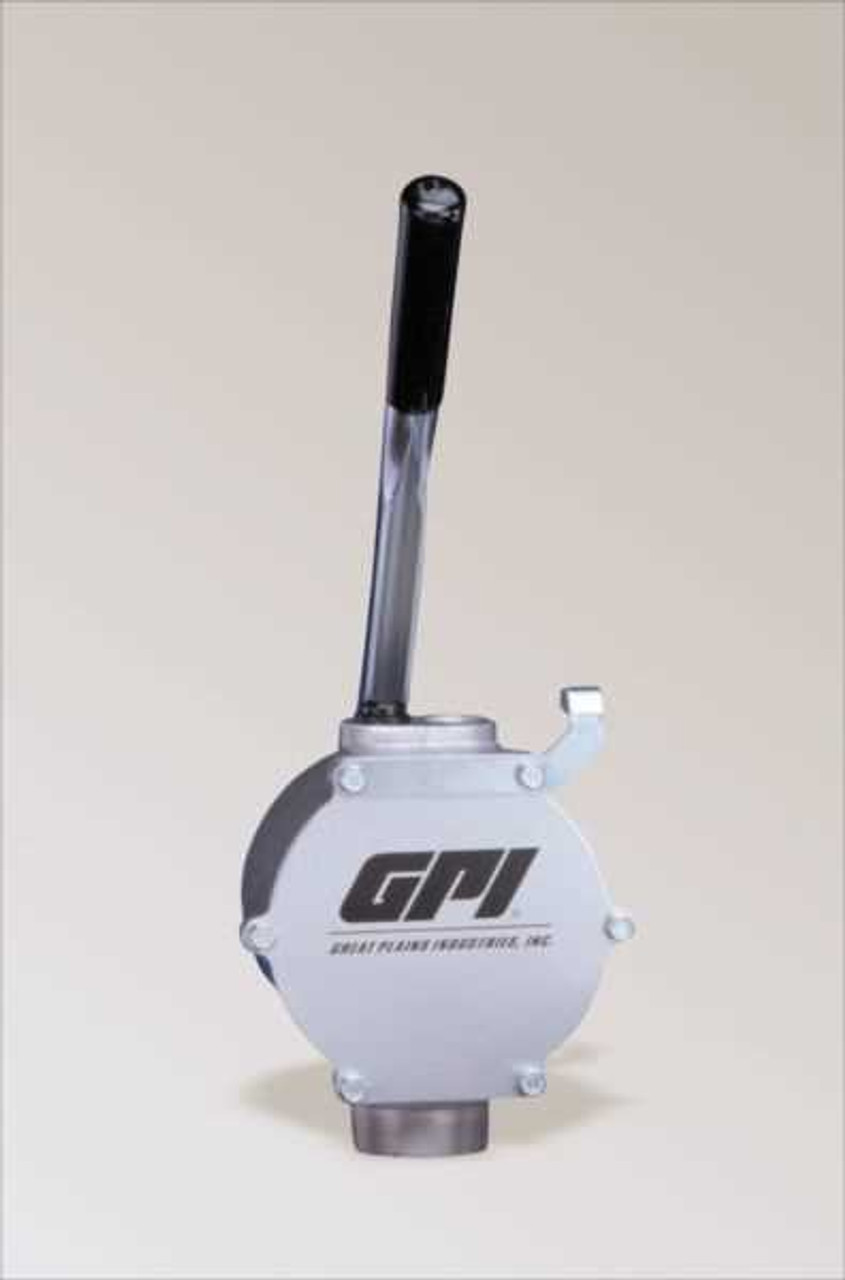

ATI BS-HP90 pairs Aluminum Tank Industries tanks with the proven GPI HP-90 dual-action piston hand pump for dependable, off-grid fuel transfer. It mounts to any tank or drum with a 2-inch NPT bung and moves fuel on both push and pull strokes for faster dispensing. Approved media include gasoline (up to E15), diesel (up to B20), kerosene, light oil, and hydraulic fluid when used as directed. Pump, 8 ft x 3/4 in hose, and dispensing spout are included.
Key Features
- Up to 25 gallons per 100 strokes (≈1 quart per stroke) for efficient manual transfer.
- Fits standard 2" NPT bung on ATI refueling tanks and most drums/aux tanks.
- Construction: lightweight aluminum housing, stainless steel shaft; integral inlet screen.
- Ports: Inlet 1" NPT, Outlet 3/4" NPT; includes 3/4" x 8 ft hose and molded spout.
- Dual-action piston design pumps on both strokes; built-in anti-siphon/siphon valve depending on model documentation.
- Typical warranty: 2 years (per retailer listings; see GPI docs for specifics).
Fitment
Universal for ATI refueling/transfer tanks and most tanks with a 2-inch NPT opening. Commonly used on ATI DOT refueling tanks and auxiliary transfer tanks. Always verify bung size and clearances before installation.
Dimensions & Specs
- Flow/Capacity: up to 25 gal/100 strokes (≈1 qt/stroke)
- Mount: 2" NPT bung (pump body ports 1" NPT inlet / 3/4" NPT outlet)
- Included Hose: 3/4" x 8 ft with molded nozzle
- Materials: aluminum housing, stainless steel shaft, plastic piston; integral inlet screen
- Approx. Unit Size/Weight (shipping): ~19" x 16" x 9"; ~13 lb
- Compatible Fuels: gasoline (to E15), diesel (to B20), kerosene, light oil (~10 wt), hydraulic fluid
What's Included
- GPI HP-90 hand pump assembly
- 3/4" x 8 ft dispensing hose and molded spout
- Two-piece suction pipe
- Mounting hardware as supplied by GPI
Installation Notes
- Installs on tanks/drums with a 2" NPT bung; follow GPI manual for handle linkage and leak checks.
- Lubricate pin joints per manual to extend service life.
- Use only with approved fuels; observe local codes and safe dispensing practices.
FAQ
- What’s the flow rate of the HP-90?
- Up to 25 gallons per 100 strokes (about 1 quart each stroke) under typical conditions.
- Which fuels can I pump?
- Gasoline (up to E15), diesel (up to B20), kerosene, light oil (~10 wt), and hydraulic fluid when used as directed.
- Will it mount to my ATI refueling tank?
- Yes—if your tank has a 2" NPT bung, the HP-90 threads on directly. It also fits many drums and auxiliary tanks with the same bung size.
- What comes in the box?
- Pump body, handle/linkage, two-piece suction pipe, 3/4" x 8 ft hose, and molded nozzle/spout.
- What are the port sizes?
- Inlet 1" NPT (with integral screen), outlet 3/4" NPT; hose is 3/4" ID.
