Product Description

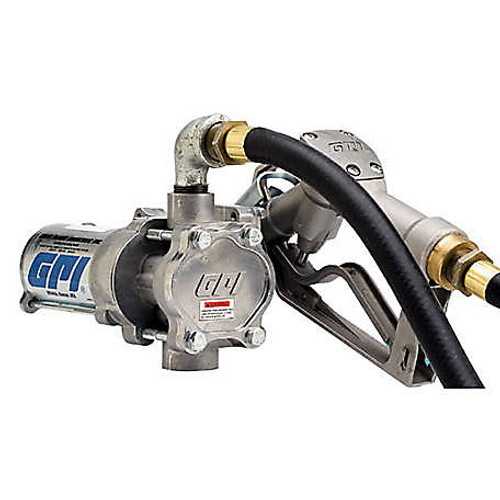

ATI BS-EZ8 is Aluminum Tank Industries’ bundled kit built around the proven GPI EZ-8 12V DC rotary gear transfer pump. It delivers up to 8 GPM and comes ready to dispense with a 3/4" manual nozzle, 10 ft x 5/8" static-wire grounded fuel hose, 15 ft power cord, and an adjustable telescoping suction pipe. The motor is cULus listed for hazardous locations and the pump carries a 2-year warranty from GPI.
Key Features
- Up to 8 GPM flow rate (gas-station equivalent).
- Includes 3/4" manual unleaded nozzle and 10 ft x 5/8" hose.
- 15 ft (14 AWG) power cord with inline fuse; on/off toggle.
- Adjustable suction pipe (~15"–40") with trim-to-fit sections.
- Duty cycle: 15 minutes on / 30 minutes off.
- Compatible with gasoline (to E15), diesel (to B20), and kerosene.
- cULus listed motor; 2-year GPI warranty.
Fitment / Use
Universal fueling on ATI refueling tanks and similar truck/trailer tanks up to ~120 gallons. Direct-mount bung options and compact weight make it ideal for mobile refueling of trucks, equipment, ATVs/UTVs, farm and jobsite machinery.
Specifications & Dimensions
- Flow Rate: up to 8 GPM
- Voltage: 12V DC
- Nozzle: 3/4" manual shut-off
- Hose: 10 ft length, 5/8" ID, static-wire grounded
- Power Cord: 15 ft, 14 AWG with inline fuse
- Suction Pipe: adjustable, ~15"–40"
- Kit Dimensions (approx.): 16" L x 9" W x 9" H
- Weight: ~17 lb
- Approvals: cULus motor (Class I, Div 2, Group D)
- Warranty: 2 years (GPI)
FAQ
- What fuels can I pump with the BS-EZ8 / GPI EZ-8?
- Gasoline up to E15, diesel up to B20, and kerosene. Always observe local codes and follow GPI/ATI instructions for safe operation.
- Does the kit include everything to start dispensing?
- Yes—pump, 3/4" manual nozzle, 10 ft x 5/8" hose, adjustable suction pipe, and power cord are included. You’ll supply the tank and 12V power source.
- What is the duty cycle?
- 15 minutes on / 30 minutes off to protect the motor. For continuous, higher-duty use, consider stepping up to higher-capacity models.
- Is the motor approved for hazardous locations?
- Yes, the motor is cULus listed for hazardous locations (Class I, Division 2, Group D).
- Will this mount to my ATI refueling tank?
- Yes. It’s widely used on ATI DOT refueling tanks and similar 2" bung mounts. Verify bung size and orientation before installation.
