Product Description

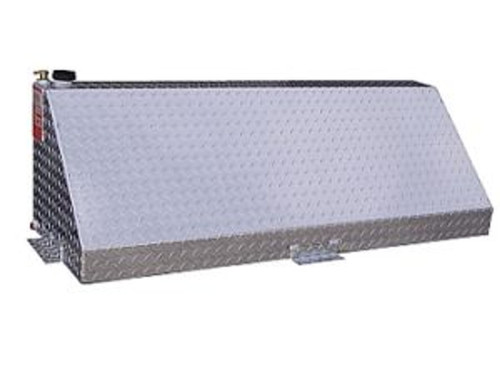

ATI AUX60WIKD is a 60-gallon wedge-style aluminum auxiliary diesel tank bundled with ATI’s Fuel Shotz install kit for RAM 2013–Current. The wedge profile adds 5th-wheel clearance and rear visibility. Built from .125" aluminum with full internal baffles, rollover-protected vent, and automotive-style cap. When installed with the kit, fuel is gravity-fed to keep the OEM tank full until the auxiliary tank is empty.
Key Features
- Includes ATI Fuel Shotz install kit (RAM 2013+); no wires or switches required.
- .125" aluminum construction, fully baffled; pressure & leak tested.
- Rollover-protected vent, automotive-style filler cap; 3/8" NPT outlet.
- Wedge design for flatbeds/5th-wheel clearance and mirror/rear-view visibility.
- Made in the USA; DOT compliant for auxiliary diesel use when installed per instructions.
Fitment
RAM 2013–Current (Diesel) via included Fuel Shotz kit. Also available variants for Ford, GM, and older RAM (sold separately). Always verify bed space and any hitch/toolbox clearances.
Dimensions & Capacity
- Capacity: 60 gallons
- Overall length: 56"
- Overall width: 20"
- Overall height: 18"
- Approx. weight: ~119 lb
- Notes: Mounting tabs may extend ~1.5" each side; fuel cap can add ~2.5" to height—measure your setup accordingly.
What’s Included
- ATI AUX60W wedge auxiliary diesel tank
- ATI Fuel Shotz installation kit for RAM 2013+
- Mounting/hold-down tabs
Compliance
Designed to meet DOT requirements for diesel auxiliary tanks (Title 49 CFR 393.65), with rollover protection and gravity-feed integration via the Fuel Shotz kit. Follow ATI’s installation instructions for legal, safe use.
FAQ
- Does the AUX60WIKD include a pump?
- No pump is included. The Fuel Shotz kit connects the auxiliary tank to the factory tank at the fill neck for automatic gravity feed.
- Will this fit my RAM?
- Yes—this WIKD bundle is for RAM 2013–Current diesel applications. Confirm your bed dimensions and any 5th-wheel/toolbox clearances before ordering.
- Is the tank baffled and vented?
- Yes. It has full internal baffles and a rollover-protected vent, plus an automotive-style cap.
- What are the exact dimensions?
- Plan for 56" L x 20" W x 18" H. Account for ~1.5" per side for tabs and ~2.5" added height with the cap, depending on configuration.
- Gasoline compatible?
- No. This specific AUX60WIKD bundle is intended for diesel auxiliary use with the Fuel Shotz kit.
