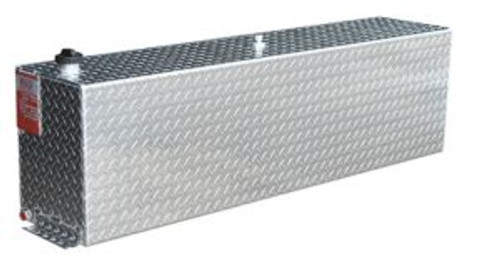

ATI FUEL TANKS AUX43RIKD 43 GAL AUXILIARY TANK

ATI AUX43RIKD is a Ram-specific 43-gallon rectangular diesel auxiliary tank bundled with ATI’s Fuel Shotz install kit. Built from .125" bright aluminum and fully baffled, it ties into the factory filler-neck hose so your factory tank stays at FULL until the auxiliary tank is empty—no wires, switches, or dashboard mods required.

Key Features

• 43-gallon capacity, DOT-compliant auxiliary system when installed per ATI guidelines.
• Fuel Shotz kit connects at the OEM filler neck; gravity-assisted transfer keeps the factory tank full.
• .125" aluminum construction, fully baffled; pressure & leak tested, clean interior.
• Vented cap; hold-down/mounting tabs included.

Fitment

Designed for Ram 1500/2500/3500 Diesel, model years 2013–current (some retailers list 2012+). Uses the Ram-specific Fuel Shotz kit included in this SKU. Always verify bed clearances and filler-neck configuration before ordering.

Dimensions & Capacity

• Capacity: 43 gallons
• Overall length: 58"
• Overall width: 12"
• Overall height: 16.5"
• Notes: Some spec tables round height to ~17". Mounting brackets may add ~1.5" per side; account for cap clearance when measuring.

What’s Included

• ATI AUX43RIKD 43-gal rectangular aluminum auxiliary tank
• Fuel Shotz Ram-specific installation kit (filler-neck adapter & hardware)
• Mounting/hold-down tabs

Compliance

Manufactured in the USA to meet DOT requirements for auxiliary diesel tanks when properly installed. Visual, pressure, and leak-detection tested.

Installation Notes

• Plumbs to the factory filler neck; no wiring or switches.
• Secure via welded tabs with appropriate hardware into the truck bed.
• Confirm bed, rail, and cap clearance; plan for bracket overhang where applicable.

FAQ

Will AUX43RIKD work on my Ram?

Yes—this SKU is packaged with the Ram-specific Fuel Shotz kit for Ram diesel 2013–current (some listings show 2012+). Verify your filler-neck style before purchase.

How does the auxiliary tank keep my factory tank full?

The Fuel Shotz system connects at the factory filler-neck hose. As you drive, fuel gravity-feeds to the OEM tank; your gauge stays on FULL until the auxiliary tank is empty.

Do I need wiring or a dash switch?

No. The system is purely mechanical—no wiring or switch required.

What are the exact dimensions?

Approx. 58" L x 12" W x 16.5" H (some spec tables round height to ~17"). Mount brackets can add ~1.5" per side; allow clearance for the cap.

Is the tank baffled and pressure-tested?

Yes. Tanks are fully baffled to reduce fuel movement and are visually, pressure, and leak-tested before shipment.
