Product Description
ATI AUX43RIK is a 43-gallon rectangular aluminum auxiliary diesel tank supplied with ATI’s Fuel Shotz install kit for a clean gravity-feed tie-in at the factory filler neck. Built from .125" diamond-plate aluminum, it’s fully baffled, pressure/leak-tested, and includes rollover protection on the tank and adapter.
Key Features
- 43-gallon capacity, rectangular footprint for efficient bed use.
- Fuel Shotz gravity-feed system connects at factory filler neck—no wires or switches.
- .125" aluminum construction, baffled interior, pressure & leak tested.
- Rollover protection on tank and fill-neck adapter; automotive-style vented cap.
- Hold-down brackets/tabs included; clean interior from factory.
Fitment
Diesel applications. Vendor kits cover Ford, Dodge/Ram (2012 & older), and Chevy/GMC (2011 & newer). Always verify your truck year/engine and bed clearances.

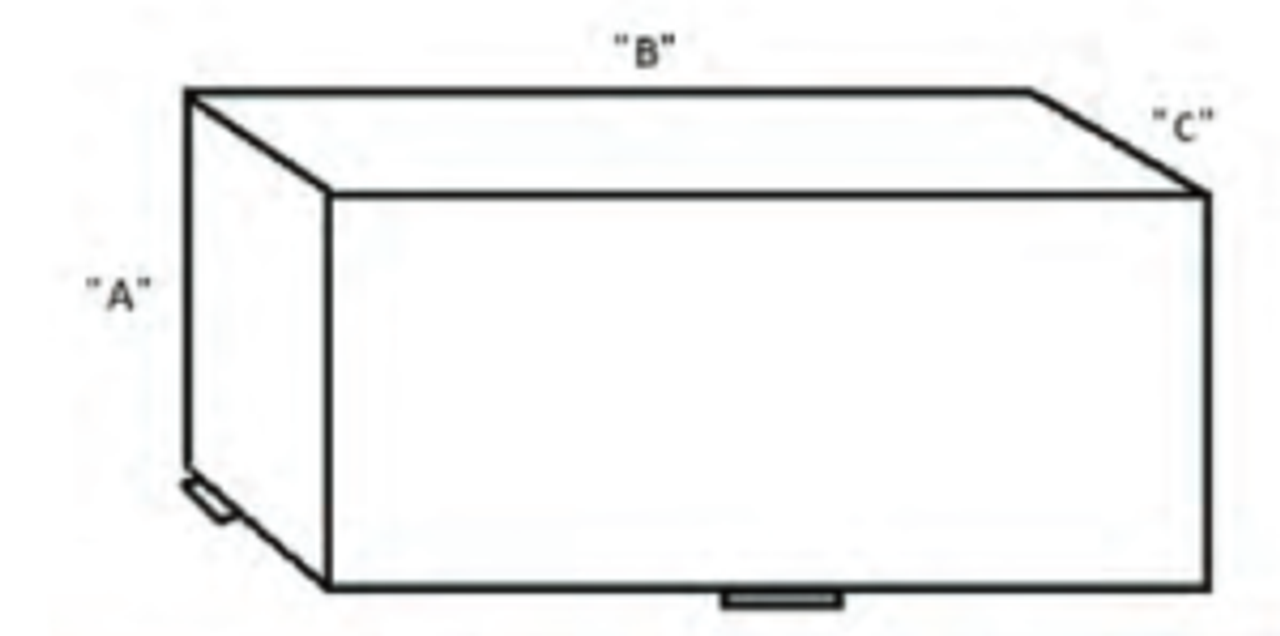

Dimensions & Capacity
- Capacity: 43 gallons
- Overall length (top): 58"
- Length across bottom (notched): ~51"
- Width: 12"
- Height: 16.5" (some listings round to 17")
- Notes: Mounting tabs can add ~1.5" per side; fuel cap adds ~2.5" to overall height—allow for this when measuring.
What’s Included
- ATI 43-gallon rectangular auxiliary tank (AUX43R)
- Fuel Shotz diesel install kit (hoses, clamps, adapter, shutoff valve)
How the Fuel Shotz System Works
The auxiliary tank connects to your factory filler neck. It keeps the factory tank at “full” until the auxiliary tank is empty; then your OE gauge drops from full. Gravity feed means no electrical switches. Rollover valves are integrated for safety.
Compliance
Meets applicable DOT requirements for auxiliary diesel systems when installed and used as directed (gravity feed to filler neck with rollover protection). Follow all federal/state/local regulations.
Installation Notes
- Install shutoff valve at tank outlet; route hose through a 7/8" bed grommet to the filler-neck adapter.
- Fill the factory tank first, then open the auxiliary shutoff and leak-check the system.
- Bolt tank through welded tabs to the truck bed per ATI guidance.
FAQ
- Is AUX43RIK diesel-only?
- Yes. This kit is specifically for diesel applications using a gravity-feed connection at the factory filler neck.
- Will it work with my truck?
- Vendor kits cover Ford, Dodge/Ram to 2012, and Chevy/GMC 2011+. Verify your exact year/engine and select the matching install kit.
- Do I need wiring or a switch?
- No. Fuel Shotz is a gravity-feed system with a manual shutoff valve—no wiring or dash switch required.
- What exact dimensions should I plan around?
- Plan for ~58" (L, top) x 12" (W) x 16.5" (H). Bottom is notched to ~51" length. Allow ~1.5" per side for tabs and ~2.5" additional height for the cap.
- Is it baffled and pressure tested?
- Yes—.125" aluminum with internal baffles; each tank is pressure/leak tested before shipping.
