Product Description

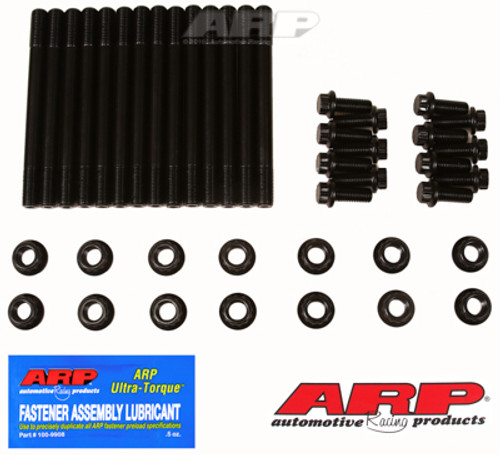

UPGRADE YOUR BOTTOM END CLAMP LOAD. ARP’s 247-5403 Main Stud Kit is engineered for Cummins builds that keep the factory block stiffener/girdle in place. Manufactured from premium 8740 chrome-moly and heat-treated to deliver ~200,000 psi tensile strength, these studs provide superior thread engagement and repeatable torque for boosted, tuned, and high-mile applications. Includes studs, 12-point nuts, and hardened washers.
Precision-rolled threads and ARP’s recommended torque procedure (with ARP Ultra-Torque) help minimize cap walk and main bearing distortion for better durability and oil film control at load. Socket sizes: 16mm 12-point & 12mm 12-point (with 5mm Allen where applicable). For maximum accuracy, assemble with ARP Ultra-Torque 100-9909.
Fitment
- 2003–2018 Dodge/Ram Cummins 5.9L/6.7L 24V with factory block stiffener/girdle (ARP designates 2004 & later; late-2003 trucks equipped with the stiffener may also apply—verify before ordering).
Cross Reference & Related ARP Parts
- ARP 247-5401 – Main Stud Kit (without factory block stiffener)
- ARP 247-5402 – Main Stud Kit (1989–1997 12V, 14mm)
- ARP 247-4202 – Head Stud Kit (5.9L/6.7L)
- ARP 247-4204 (625+) – Head Stud Kit (high strength)
- ARP 100-9909 – Ultra-Torque Assembly Lube (recommended)
- ARP 100-9910 – Ultra-Torque 10 oz
FAQ
DO I NEED THE FACTORY BLOCK STIFFENER FOR THIS KIT?
Yes—247-5403 is specifically for engines that retain the OE stiffener/girdle. If you do not have the stiffener, use ARP 247-5401.
WHAT TORQUE LUBE SHOULD I USE?
ARP requires its Ultra-Torque assembly lubricant for accurate preload. See 100-9909 or 100-9910.
CAN THESE BE RE-USED?
Studs can typically be re-used if undamaged and within spec; always inspect threads and follow ARP instructions for cleaning and re-torque.
WHAT IS THE TENSILE STRENGTH?
Approx. 200,000 psi (8740 chrome-moly), per ARP main stud kit specs.
Specifications for ARP 247-5403
| Brand | ARP (Automotive Racing Products) |
| Part Number | 247-5403 |
| Material / Tensile | 8740 chrome-moly / ~200,000 psi |
| Socket Sizes | 16mm 12-point, 12mm 12-point; 5mm Allen where applicable |
| UPC | 672036040918 |
| GTIN | 00672036040918 |
| Shipping Info | Ships from CPP Diesel; Shipping calculated at checkout; Box dims approx. 10" L × 6" W × 3" H |
| Cross Reference | ARP 247-5401, ARP 247-5402, ARP 247-4202, ARP 247-4204 |
| E-Codes | N/A (fastener/engine hardware) |
| Prop 65 | WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov |
