AIRDOG R4SPBF358 RP-4G-150 RAPTOR FUEL PUMP (REPLACES HIGH PRESSURE PUMP) FOR 2003–2007 FORD POWERSTROKE 6.0L

Product Description

Direct-replacement high-pressure lift pump for 2003–2007 Ford 6.0L Power Stroke. The AirDog Raptor-4G RP-150 delivers stable, internally regulated fuel pressure and flow without a return line, mounting cleanly on the frame rail with OE-style quick-connects for a fast, professional install. Optimized for stock to moderately modified trucks at 150 GPH.

• 150 GPH, internally regulated (no return line required)
• Frame-rail sandwich-plate mounting; OE-style quick-connect plumbing
• Preset high-pressure Ford 6.0L configuration; adjustable for fine tuning

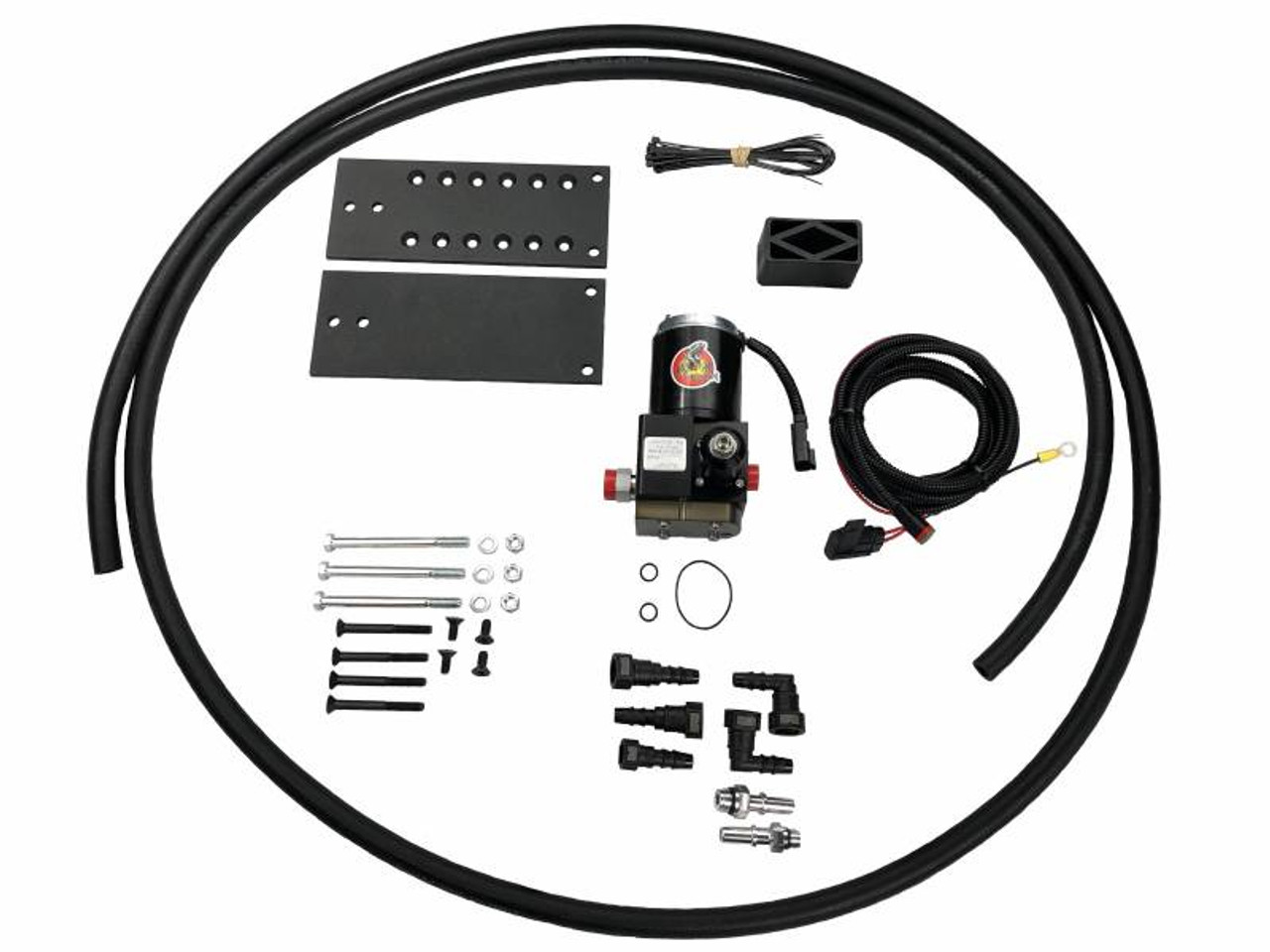

• Complete install kit included

Vehicle Fitment

• Ford F-250 / F-350 / Excursion Power Stroke 6.0L: 2003, 2004, 2005, 2006, 2007
• Replaces the factory frame-rail mounted high-pressure fuel pump on 6.0L applications.

Cross-Reference & Related Airdog Products (CPP Diesel only)

• AIRDOG A7SABF593 II-5G DF-165-5G System for 2003–2007 6.0L
• AIRDOG FF100-2 2-Micron Fuel Filter (Universal)
• AIRDOG WS100 Water Separator (Universal)
• AIRDOG R4SPBF357 RP-4G-150 (1999–2003 7.3L)
• AIRDOG R4SBF221 RP-4G-150 (2008–2010 6.4L)

Installation Instructions

Download the official AirDog install manual (RP-4G-100/150, 2003–2007 6.0L Power Stroke): #35 Raptor-4G FORD 2003–2007 6.0L RP-100 & RP-150 (PDF)

FAQs

Will this pump work with a tuned or mildly upgraded 6.0L?

Yes. At 150 GPH with an adjustable regulator, it supports stock to moderately modified trucks. Always verify fuel pressure at the heads after installation.

Do I need to run a return line?

No. The RP-4G pump is internally regulated and does not require a return line on this application.

What else should I replace during install?

We recommend installing fresh filtration (see FF100-2 and WS100) and monitoring fuel pressure after priming.

Where does it mount?

On the inside of the frame rail using the supplied sandwich-plate brackets and OE-style quick-connect fittings for a clean, protected install.

Specifications for airdog R4SPBF358
