Product Description

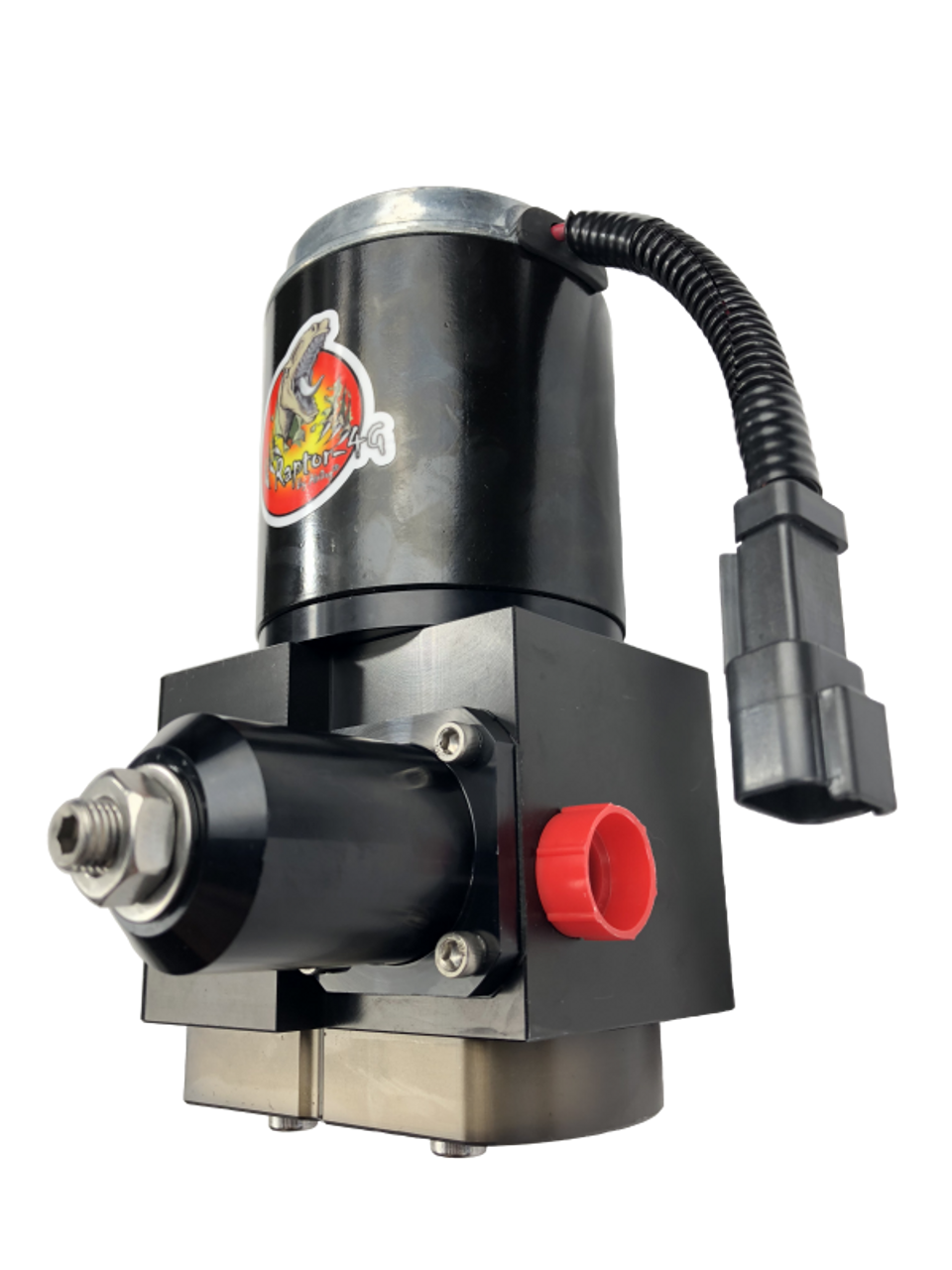

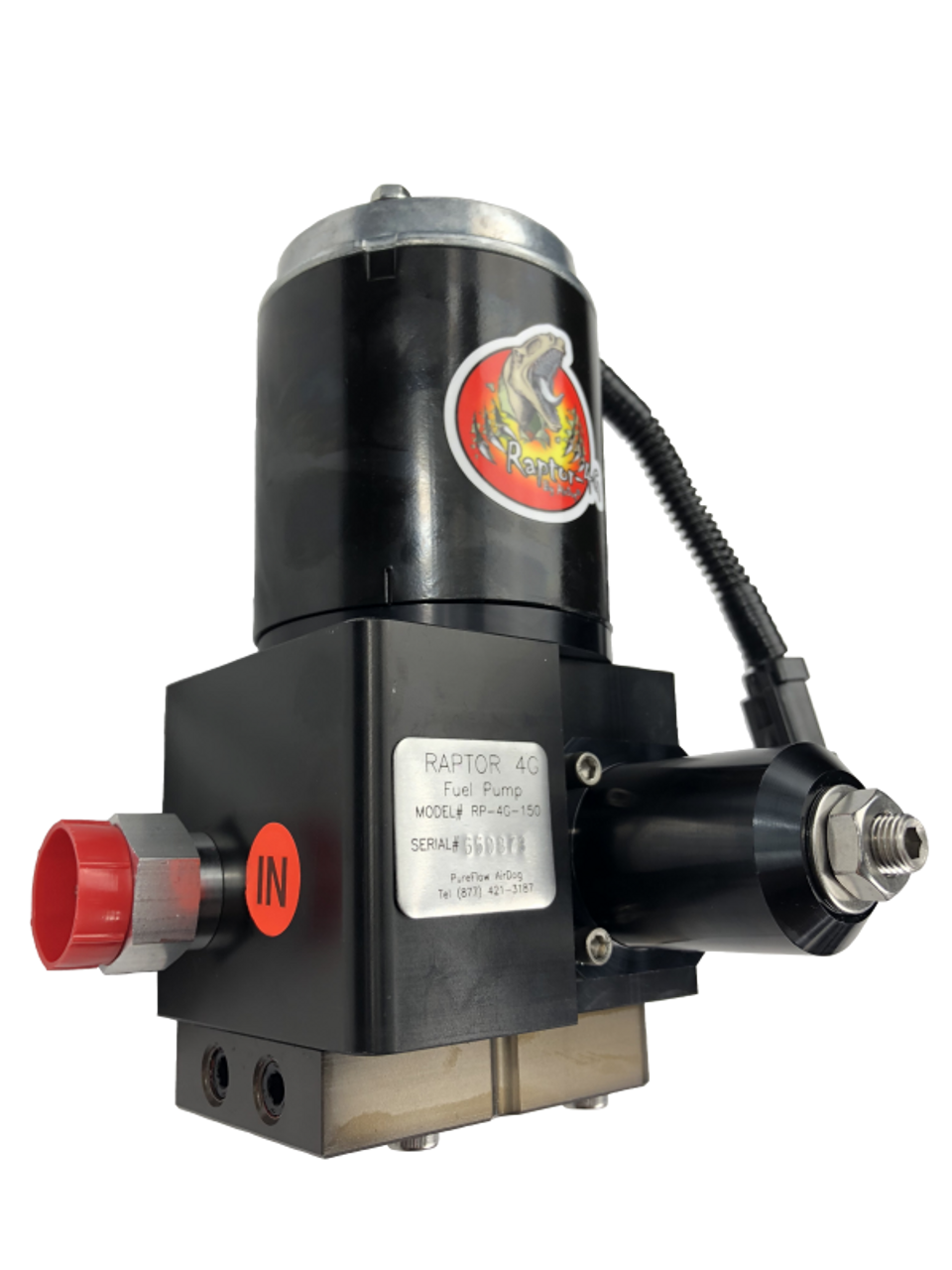

Upgrade your 2008–2010 Ford 6.4L Power Stroke with the AirDog R4SBF218 Raptor 4G RP-100 (100 GPH) lift pump. This frame-rail-mounted system delivers consistent fuel supply and pressure for stock-fuel trucks, using an internally regulated design that does not require a return line. Preset to ~8–10 PSI and adjustable for fine tuning, the 4G motor features a quiet, smooth four-bearing design for long life and low amp draw. Improve throttle response, protect injection components, and stabilize rail pressure under load.
Vehicle Fitment
- 2008, 2009, 2010 Ford Super Duty F-250/F-350/F-450/F-550 with 6.4L Power Stroke diesel
Cross-Reference / Alternatives (AirDog only)
- AirDog R4SBF221 – RP-4G-150 (150 GPH) for 2008–2010 6.4L Power Stroke
- AirDog A4SPBF073 – FP-150-4G Air/Fuel Separation System (complete kit) for 2008–2010 6.4L
- AirDog A7SPBF266 – II-5G DF-100-5G for 2008–2010 6.4L (latest 5G platform)
Installation Instructions
Download the official AirDog install manual (RP-4G-100 & RP-4G-150, 2008–2010 6.4L Power Stroke): #33 Raptor-4G FORD 2008–2010 6.4L RP-100 & RP-150 (PDF)
Why Choose AirDog Raptor 4G?
- 100 GPH flow supports stock-fuel setups with stable supply pressure
- Internally regulated—no return line required
- Quiet 4-bearing motor with adjustable regulator
- Direct-fit quick-connect plumbing and frame-rail sandwich mount
What’s Included
- Raptor-4G RP-100 pump assembly
- Mounting bracket, spacer & hardware
- Wiring harness
- Quick-connect fittings and 14 ft fuel line
- Installation manual (see link above)
Helpful Notes
- Preset pressure ~8–10 PSI from factory; adjustable up to ~75 PSI (follow performance guidelines)
- Recommended to mount inside frame rail as high as possible for protection
| Specifications for airdog R4SBF218 | |
|---|---|
| Brand | AirDog / Raptor 4G |
| Part Number | R4SBF218 (RP-4G-100) |
| SKU (CPP) | PURR4SBF218 |
| UPC | 813094012183 |
| GTIN | 813094012183 |
| Flow Rate | 100 GPH |
| Preset Pressure | ~8–10 PSI (adjustable) |
| Mounting | Frame rail (sandwich plate) |
| Package Dimensions | 13.5" W × 7" H × 12" D |
| Shipping | Free Shipping (ships ground) |
| Approx. Ship Weight | ~20 lb |
| Country of Origin | USA |
| Prop 65 | This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See www.P65Warnings.ca.gov. |
FAQ
Will this 100 GPH pump support mild tuning on my 6.4L?
Yes—RP-4G-100 is ideal for stock to mild setups. For higher fuel demand, consider the 150 GPH version (R4SBF221).
Do I need to run a return line?
No. The Raptor-4G is internally regulated and does not require a return line for this application.
What pressure is it set to from the factory?
Approximately 8–10 PSI. The regulator is adjustable for fine-tuning as needed.
Is the kit complete, or do I need additional fittings?
The kit includes quick-connect fittings, line, harness, and hardware for a clean, professional install (see manual).
What if I want a full air/fuel separation system instead of just a lift pump?
Step up to a complete AirDog system such as A4SPBF073 FP-150-4G or the latest A7SPBF266 II-5G DF-100-5G.
