Product Description

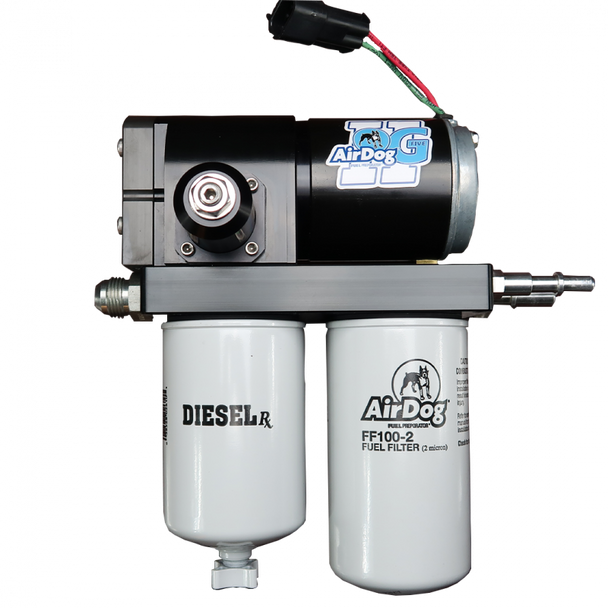

AirDog II-5G DF-100 (A7SPBD252) is a 100 GPH air/fuel separation and lift pump system engineered for the 1994–1998 Dodge Ram 2500/3500 with the 5.9L 12-valve P-pump Cummins. It reduces aeration and water, stabilizes fuel pressure, and improves throttle response and injector life. Designed as a clean, frame-mounted upgrade with a low-noise motor and OE-style quick-connect plumbing.
Vehicle Fitment
- 1994, 1995, 1996, 1997, 1998 Dodge Ram 2500/3500
- 5.9L Cummins 12-Valve (P7100 P-pump)
- Stock fueling to mild bolt-ons; 100 GPH supply
Why Choose AirDog II-5G DF-100 for 12-Valve?
- Separates entrained air/vapor before the injection pump for smoother, quieter operation
- 2-micron final filtration and water separation to protect injectors and pump
- Adjustable diaphragm regulator maintains stable pressure to the P-pump

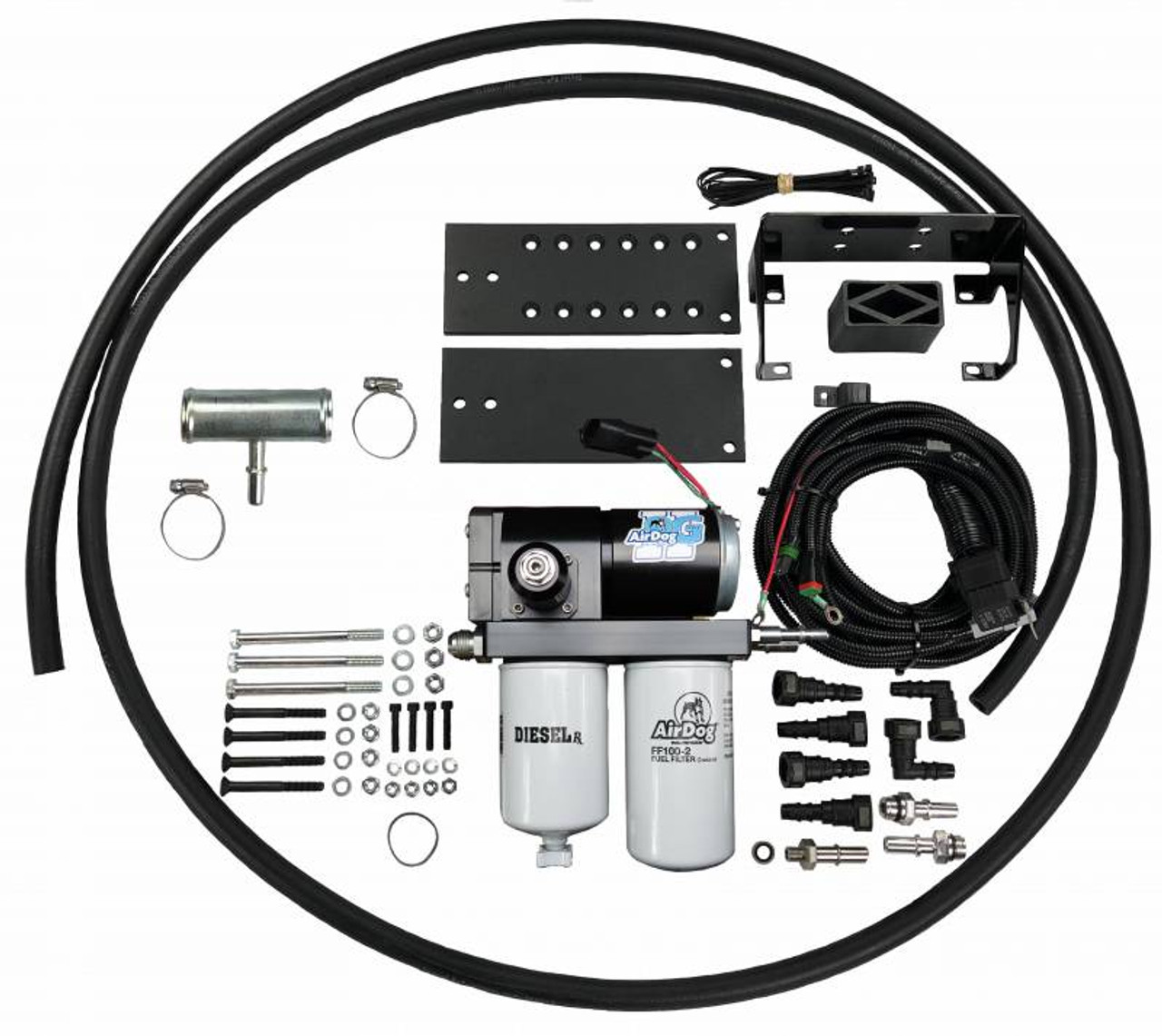

- Includes bracketry, wiring harness, filler-neck return tee, and OE-style quick-connects for a clean install
Installation Instructions
Download the official install guide for the 1994–1998 Dodge Cummins (DF-100/165/220): AirDog II-5G Dodge 1994–1998 Install PDF
Cross-Reference / Alternatives (AirDog only)
- Need more flow for built 12-valves? AIRDog A7SABD527 II-5G DF-220-5G (1994–1998 Cummins)
- Budget 4G systems, 100 GPH: AIRDog A4SPBD100 FP-100-4G (1994–1998 Cummins)
- Budget 4G systems, 150 GPH: AIRDog A4SPBD103 FP-150-4G (1994–1998 Cummins)
- Raptor 4G stand-alone pump, 150 GPH: AIRDog R4SBD051 RP-4G-150 (1994–1998 Cummins)
FAQ
Will this work with the factory P-pump fuel filter head?
No. On the 12-valve application the II-5G routes pressure directly to the P-pump and ties the injector return into the engine return, eliminating the need for the factory filter head.
How much flow does the A7SPBD252 provide?
It is a DF-100-5G system rated at 100 GPH, ideal for stock to mildly upgraded 12-valve builds.
Is any tank drilling required?
For DF-100-5G on 1994–1998 trucks the suction connects to the factory module; a filler-neck tee is used for air/vapor return. (High-flow DF-165/220 may use a larger suction tube.)
What filters does it use and when should I change them?
One water separator and one 2-micron fuel filter. Inspect at each service interval; change based on fuel quality and restriction. Follow the AirDog maintenance guidance in the install manual.
Specifications for airdog A7SPBD252
| Brand | AirDog |
|---|---|
| Part Number | A7SPBD252 (DF-100-5G) |
| UPC | 813094012527 |
| GTIN | 00813094012527 (GTIN-12/UPC) |
| Flow Rate | 100 GPH |
| Vehicle | 1994–1998 Dodge Ram 2500/3500 5.9L Cummins 12V (P-pump) |
| Shipping Weight | ~27 lb |
| Package Dimensions | Approx. 19 x 13 x 7 in |
| Shipping Method | Ground (standard) |
| Country of Origin | USA (per manufacturer) |
| Prop 65 | Not listed for this product. For general information, see P65Warnings.ca.gov. |
