Product Description

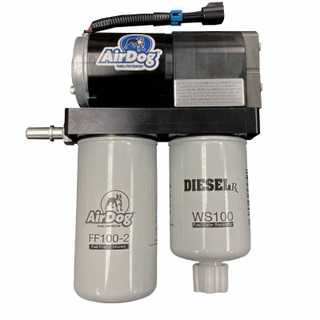

Overview: The AirDog I-4G FP-100 (A4SPBD106) is a 100 GPH lift pump and air/fuel separation system engineered for 2019–2023 RAM 2500/3500 trucks with the 6.7L Cummins. It mounts to the frame using the included sandwich-plate bracket, draws fuel via a 1/2" draw straw to bypass the in-tank pump, feeds the OEM filter housing, and returns air/vapor to the tank via the filler-neck tee for quieter, cleaner, more consistent fuel delivery.
Vehicle Fitment
- 2019, 2020, 2021, 2022, 2023 RAM 2500/3500 with 6.7L Cummins (24V)
- Flow rate: 100 GPH (suitable for stock to ~500 HP builds)
Cross-Reference / Alternatives (Airdog only)
- AIRDOG A4SPBD109 – FP-150-4G for 2019–2023 Cummins (higher flow)
- AIRDOG A7SPBD255 – II-5G DF-100-5G for 2019–2023 Cummins (5G motor platform)
- AIRDOG A4SPBD102 – FP-100-4G for 2004.5–2018 Cummins (prior gen fitment)
Installation Instructions
Download the official AirDog FP-100/150-4G (2019–Current Cummins) install manual (PDF)
Why Choose AirDog I-4G
- Removes entrained air, water, and particulates down to 2 micron
- Stabilizes supply pressure to the CP3/HPFP for smoother operation
- All-inclusive kit with wiring harness, bracketry, hoses, and fittings
- Lifetime limited express warranty on covered systems (see AirDog)
Frequently Asked Questions
Will this work with my stock fuel system and tune?
Yes. FP-100-4G supports stock to ~500 HP builds and integrates with the OEM filter housing. No tuning is required.
Do I have to drop the tank to install the draw straw?
The included high-flow suction tube is installed into the tank module; most installers lower the tank for access. Follow the AirDog instructions for the safest method.
What pressure does the system run?
The Original AirDog uses a ball-and-spring regulator (approx. 15 psi on this application). Pressure is not externally adjustable.
How often should I service the filters?
Follow AirDog’s filter service guidance and your operating conditions. Inspect regularly and replace per the maintenance interval in the manual.
Specifications for airdog A4SPBD106
| Brand | AirDog |
| Part Number | A4SPBD106 (FP-100-4G / AirDog I-4G) |
| UPC | 813094016068 |
| GTIN | 00813094016068 (GTIN-12) |
| Flow Rate | 100 GPH |
| Vehicle Fitment | 2019–2023 RAM 2500/3500 6.7L Cummins |
| Shipping Weight | ~27 lb |
| Package Dimensions | ~19" L × 13" W × 7" H |
| Shipping Method | Ground (Free Shipping eligible) |
| Prop 65 | Yes — see P65Warnings.ca.gov |
