AIRDOG A4SPBC185 FP-100-4G AIR/FUEL SEPARATION SYSTEM FOR 01–10 GM DURAMAX 6.6L LB7 / LLY / LBZ

Product Description

Airdog A4SPBC185 FP-100-4G is a 100 GPH original AirDog system for 2001–2010 Chevy/GMC Duramax 6.6L LB7/LLY/LBZ. It mounts to the frame rail with the included sandwich-plate bracket, draws from the factory module suction port, feeds clean, de-aerated fuel to the CP3, and returns air/vapor to the tank via a filler-neck tee. This is one of the easiest Duramax lift pumps to install and a proven way to stabilize supply pressure and extend component life.

Vehicle Fitment

• 2001, 2002, 2003, 2004 (LB7)
• 2004.5, 2005 (LLY)
• 2006 (LLY/LBZ)
• 2007 (LBZ) — Classic body
• 2007.5, 2008, 2009, 2010 (LMM) — see 4G/5G alternatives below if building beyond stock

Key Features

• 100 GPH supply for stock to mildly modified Duramax builds
• Air/vapor separation returns to tank for consistent injector pump feed
• Quick-connect plumbing; clean, low-drama install
• Supports future upgrades; see FP-150-4G and II-5G systems below

What’s Included

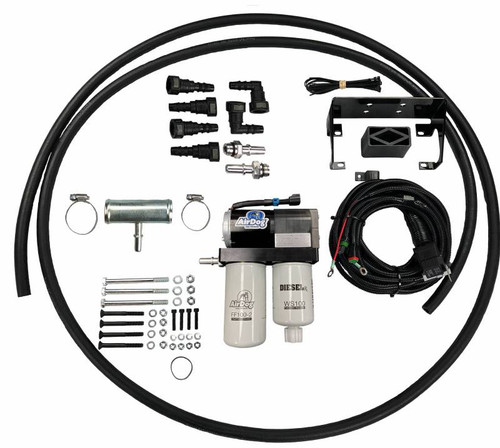

Complete FP-100-4G pump assembly, sandwich-plate frame bracket, wiring harness, filters, hose/fittings, filler-neck tee, and hardware (see install manual for full parts list).

Cross-Reference / Related Airdog Products (CPP Diesel)

• AIRDOG R4SBC133 RAPTOR RP-4G-100 (2001–2010 Duramax)
• AIRDOG A7SABC509 II-5G DF-165-5G (2001–2010 Duramax)
• AIRDOG A7SABC512 II-5G DF-220-5G (2001–2010 Duramax)
• AIRDOG A4SPBC186 FP-100-4G (2011–2014 Duramax LML)

Installation Instructions

• Airdog Resource Library (all manuals)
• FP-100/FP-150 2001–2010 Duramax – Install Manual (latest)

FAQs

Is 100 GPH enough for bolt-ons and towing tunes?

Yes—for stock to mild builds, FP-100-4G is ideal. If you plan larger injectors/turbo or higher sustained rail pressure, step up to II-5G DF-165-5G or DF-220-5G.

Does the kit require dropping the tank?

No. FP-100-4G uses the factory module suction port and returns air/vapor through the filler-neck tee per the manual.

What pressure does the original AirDog regulate to?

The original AirDog (4G) regulates around 8–10 PSI at the filter base using a ball-and-spring return circuit (see manual).

Will it void my warranty if sold under MAP?

Purchases advertised or sold under MAP can affect warranty coverage—see the manufacturer notes.

Specifications for airdog A4SPBC185
