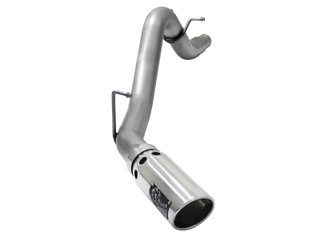

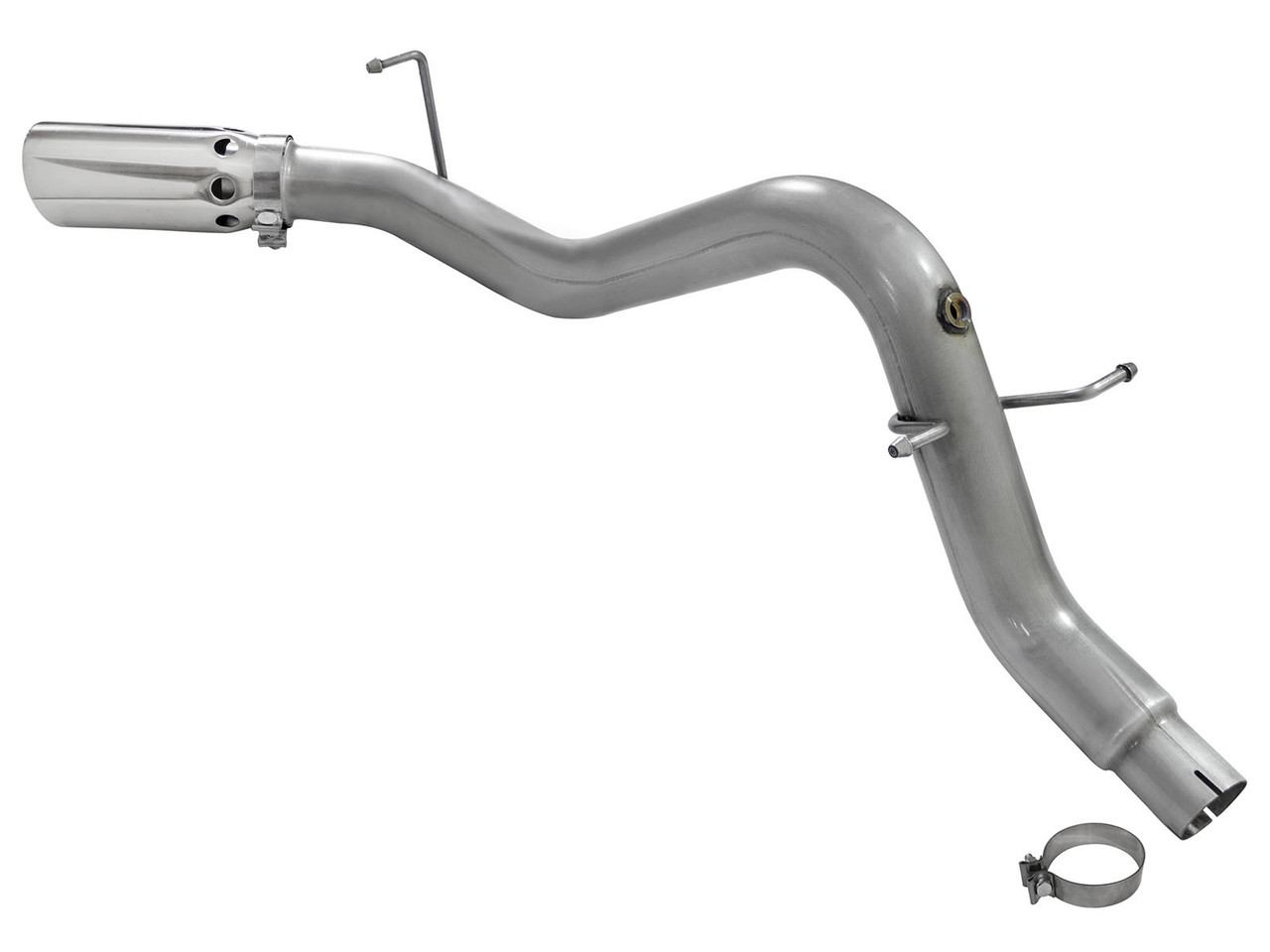

AFE 49-44064-P LARGE BORE-HD 3-1/2" 409 STAINLESS STEEL DPF-BACK EXHAUST SYSTEM FOR 16-22 GM COLORADO/CANYON 2.8L

The AFE 49-44064-P Large Bore-HD 3-1/2" DPF-Back Exhaust System is designed to enhance the performance of your 2016-2022 Chevrolet Colorado or GMC Canyon equipped with a Duramax L4 2.8L (td) diesel engine. Crafted from high-grade 409 stainless steel, this exhaust system showcases a robust and durable construction that ensures longevity while delivering exceptional performance.

Installation is straightforward, utilizing factory mounting locations for unparalleled stability and ease of setup, allowing you to upgrade your vehicle without the hassle. The system features OE-style bayonet hangers that provide a secure fit and accommodate high-vibration and high-heat conditions, ensuring that the exhaust maintains its position over time.

Engineered with performance in mind, the Large Bore-HD exhaust system features 3-1/2" mandrel-bent tubing that promotes optimal airflow. This advanced design minimizes turbulence, resulting in increased horsepower and torque, while simultaneously lowering exhaust gas temperatures (EGTs). This not only delivers a noticeable performance boost but also contributes to the efficiency of your engine.

The exhaust system culminates in a striking 5" diameter polished stainless steel slash-cut tip, equipped with intercooling vents that work to reduce exhaust temperatures at the tailpipe. Completed with a unique stainless steel laser-cut aFe Power logo plate, this tip adds an aggressive touch to your vehicle’s appearance.

Compatible with various wheelbases including Crew Cab/Short Bed, Crew Cab/Long Bed, and Extended Cab/Long Bed, this exhaust system requires cutting behind the DPF unit for installation and does not require a CARB EO#. All AFE exhaust systems are engineered and manufactured in Corona, California, ensuring quality and reliability. Elevate your vehicle’s performance and style with this top-of-the-line exhaust system.

Simple Installation:
This system uses factory mounting locations providing stability and hassle-free installation.

OE Fit:

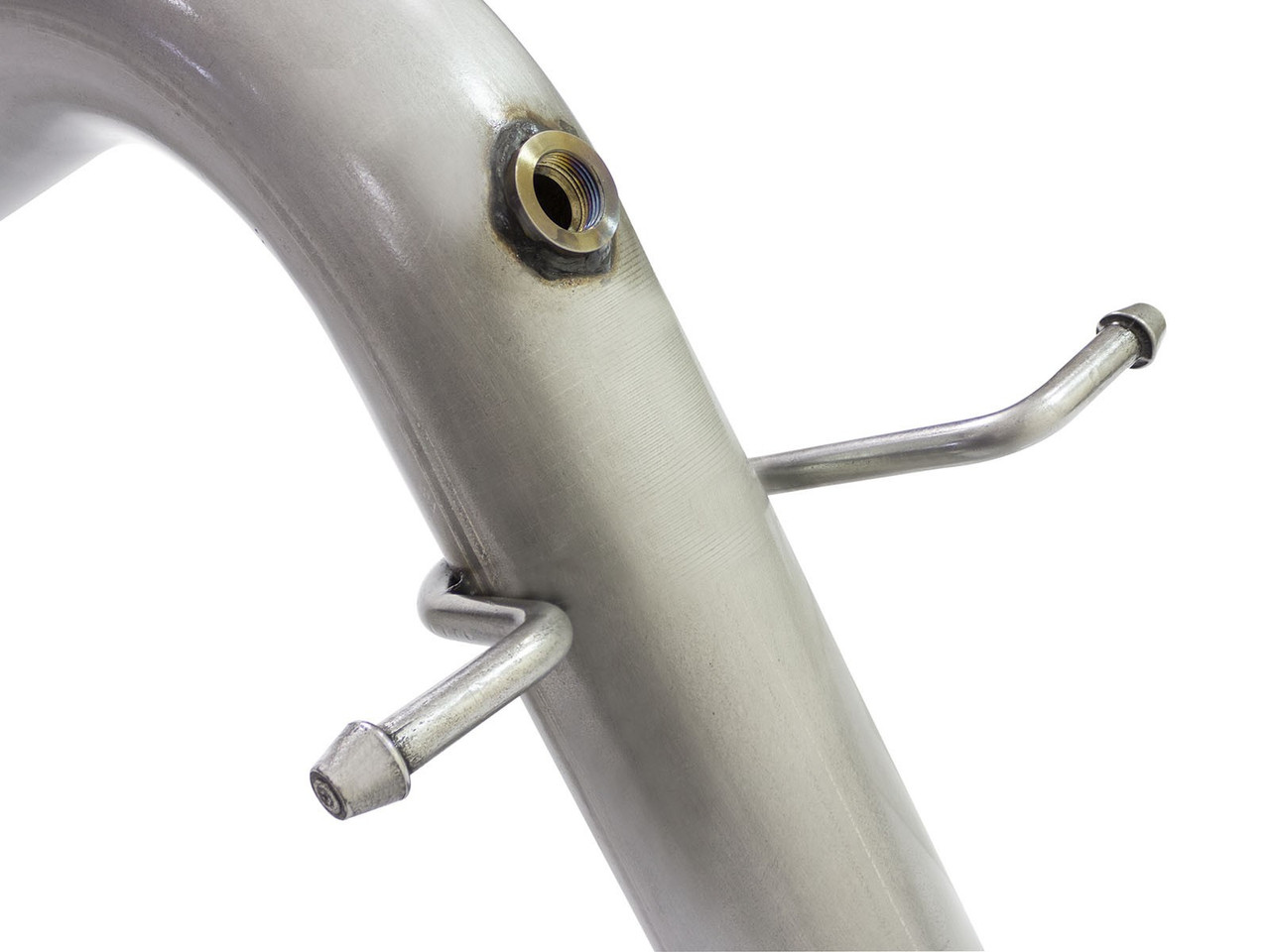

OE-style bayonet hangers are used to maintain a stable pipe location during high vibration and high heat conditions. The bayonet tip holds the hanger bushing in place for an OE-style fit that does not change with time.

Flow and Performance:
This Large Bore-HD exhaust system is constructed of 3-1/2" mandrel-bent stainless steel tubing for maximum flow. Smooth transition bends allow for low turbulence, increasing horsepower, torque and lowering EGT's.

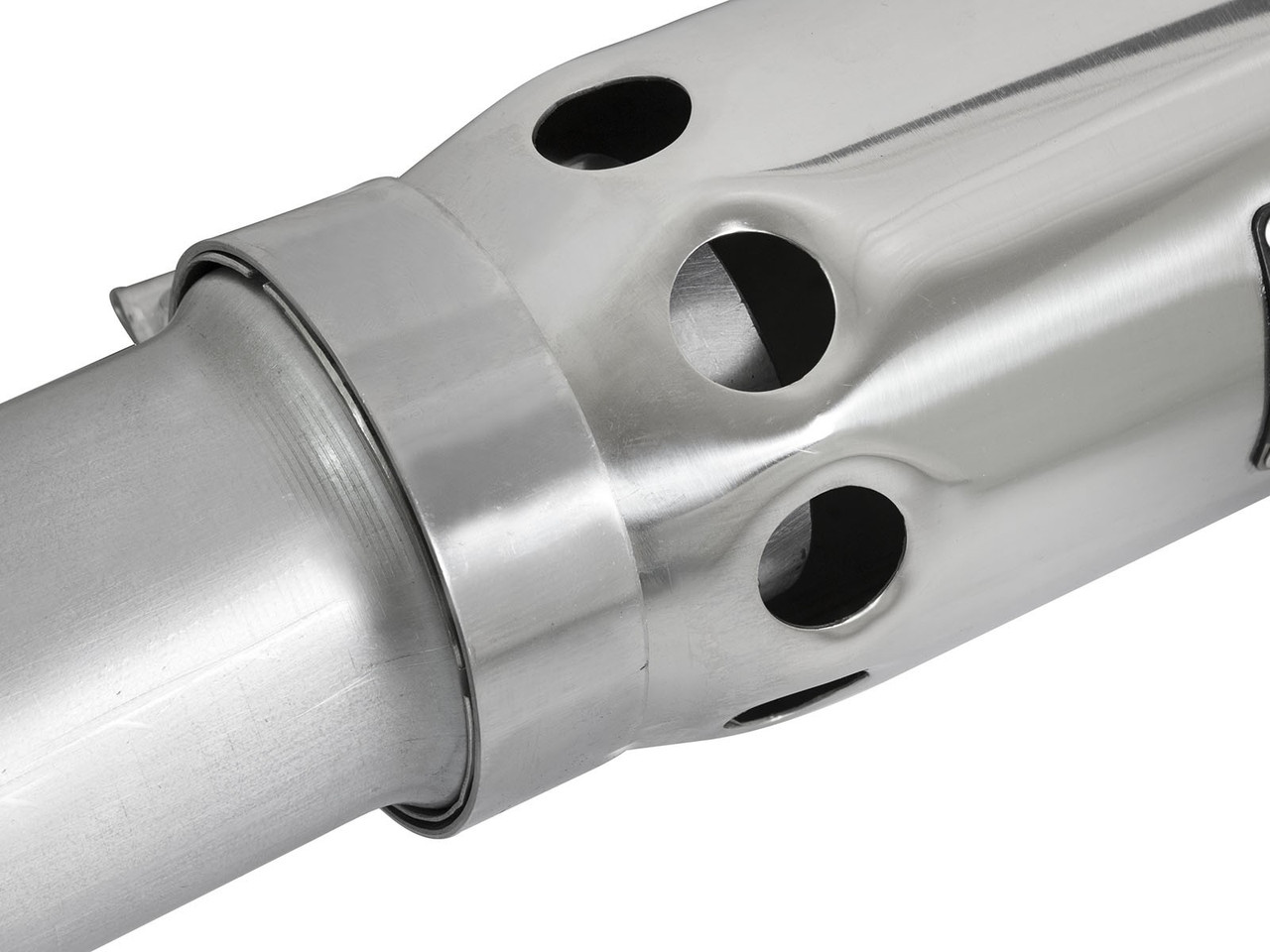

5" Diameter Polished Intercooled Tip:
Finishing off the exhaust is a 5" diameter, high luster polished, stainless steel slash cut tip with intercooling vents designed to reduce exhaust gas temperatures at the tailpipe. A unique stainless steel laser-cut aFe Power logo plate is riveted on for an aggressive style.

Fitment Note:
Crew Cab/ Short Bed (128.3" Wheelbase)
Crew Cab/Long Bed (140.5" Wheelbase)
Extended Cab/Long Bed (128.3" Wheelbase)

Note:
This system requires cutting behind the DPF unit.

Emissions Disclaimer:
This product does not require a CARB EO#

All aFe exhaust systems are engineered and manufactured in our Corona, California facility.



• Constructed from 3-1/2" mandrel-bent stainless steel tubing
• Uses a high quality band clamp and OE-style bayonet hangers for a secure fitment
• Utilizes all factory mounting locations to provide a quick, hassle-free installation
• Included in this exhaust system is a massive 5" Dia. polished stainless steel intercooled tip with a laser-cut stainless steel aFe power badge
• Up to 40% increase in Flow

2016-2022	Chevrolet	Colorado	Duramax	L4 2.8L (td)	Diesel
2016-2022	GMC	Canyon	Duramax	L4 2.8L (td)	Diesel

•
